Mishimoto MMICP-F2D-17CBK - 2017+ Ford Powerstroke 6.7L Cold-Side Intercooler Pipe & Boot Kit

Mishimoto  |  SKU: MMICP-F2D-17CBK
$34995 $38500


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Mishimoto MMICP-F2D-17CBK - 2017+ Ford Powerstroke 6.7L Cold-Side Intercooler Pipe & Boot Kit

Intercooler Pipe Kit, Black, Cold-side, fits Ford 6.7L Powerstroke 2017+

Intercooler pipe set designed to improve airflow between turbo and intercooler for enhanced performance. Durable piping reduces pressure loss, improves throttle response, and ensures a precise fit for reliable installation.

Don't get stuck stranded on the side of the road with a broken plastic factory cold-side intercooler pipe! Upgrade to a Mishimoto 2017+ Ford 6.7L Powerstroke cold-side intercooler pipe and boot kit. The Mishimoto Powerstroke cold-side pipe is constructed of mandrel-bent aluminum with a polished finish. The engineers at Mishimoto designed a CNC-machined quick-disconnect flange and IAT sensor housing to allow for an easy install. This intercooler pipe and boot kit is direct-fit, retaining all factory emissions components and does not require the use of a tuner. The Mishimoto 2017+ Ford 6.7L Powerstroke cold-side pipe eliminates restrictive bends in the factory pipe, allowing for improvements in airflow and power. This kit includes Mishimoto silicone Boots with DuraCore? technology. Mishimoto DuraCore? technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone Diesel Boots. Compared to normal silicone, DuraCore? provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots, preventing leaks and blowouts. To add even more reliability, this kit includes Mishimoto'stainless Steel Constant-Tension T-Bolt Clamps for accurate and consistent holding power. Like all our Powerstroke performance parts this kit is covered by our Mishimoto Lifetime Warranty.

  • Replaces weak stock plastic pipe
  • Installs in under an hour
  • CNC-machined stock-style coupling allows for quick install
Clamp Quantity: 4
Clamp Type: T-Bolt
Clamps Included: Yes
Cold Side Pipe Inside Diameter: 0
Coupler Color: Black
Coupler Material: Silicone
Finish: Polished
Hot Side Pipe Inside Diameter: 0
Pipe Bend Type: Mandrel
Pipe Color: Polished
Pipe Material: Aluminum
Pipe Quantity: 2
TechSpec Applications: 2017+ Ford F-250 w/ 6.7L Powerstroke--2017+ F-350 w/ 6.7L Powerstroke--2017+ F-450 w/ 6.7L Powerstroke--2017+ F-550 w/ 6.7L Powerstroke
TechSpec Engine Codes: N/A
TechSpec Chassis Codes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Core Type: N/A
TechSpec Core Thickness (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Height (in): N/A
TechSpec Inlet (in): N/A
TechSpec Outlet (in): N/A
TechSpec Weight (lbs): N/A
TechSpec Note: For a complete intercooler and pipe kit for 2017+ models, please see our 2017+ Ford 6.7L Powerstroke Intercooler Kit.----Executive Order D-759-4 currently covers model years 2017-2018

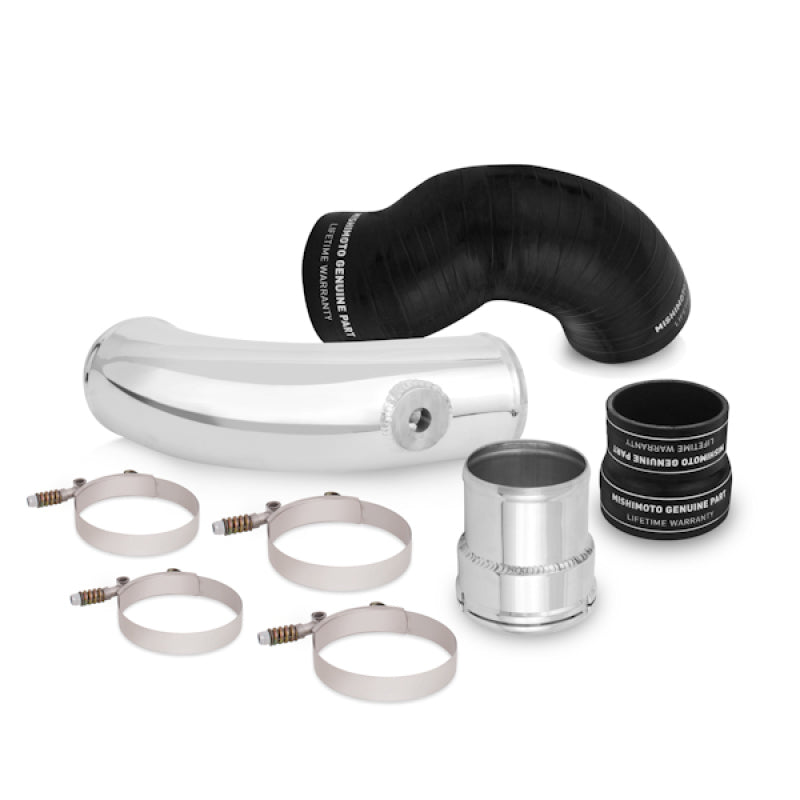

TechSpec Includes: (1) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange, O-Ring, and Spring Clip--(1) Aluminum Intercooler Pipe w/ CNC IAT Sensor Housing--(2) Silicone Boots with DuraCore Technology--(4) Constant-Tension T-Bolt Clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Pipe Shape: N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Centerline Radius: N/A
SellingPoint01: Direct fit for the 2017+ 6.7L Powerstroke
SellingPoint02: Replaces weak stock plastic pipe
SellingPoint03: Installs in under an hour
SellingPoint04: CNC-machined stock-style coupling allows for quick install
SellingPoint05: Mandrel-bent, polished aluminum pipe eliminates restrictive bends
SellingPoint06: Does not require additional tuning
SellingPoint07: Includes new O-ring and spring clip
SellingPoint08: Includes Mishimoto Silicone Boots with DuraCore technology and Mishimoto Constant-Tension T-Bolt Clamps
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
CARB EO Number: D-759-4
Install Difficulty: 3
