Mishimoto MMFAN-8 - 8 Inch Electric Fan 12V
Mishimoto | SKU:
MMFAN-8
Sale price
$8599
Regular price
$8700
Unit price
/
Unavailable
$1.01 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

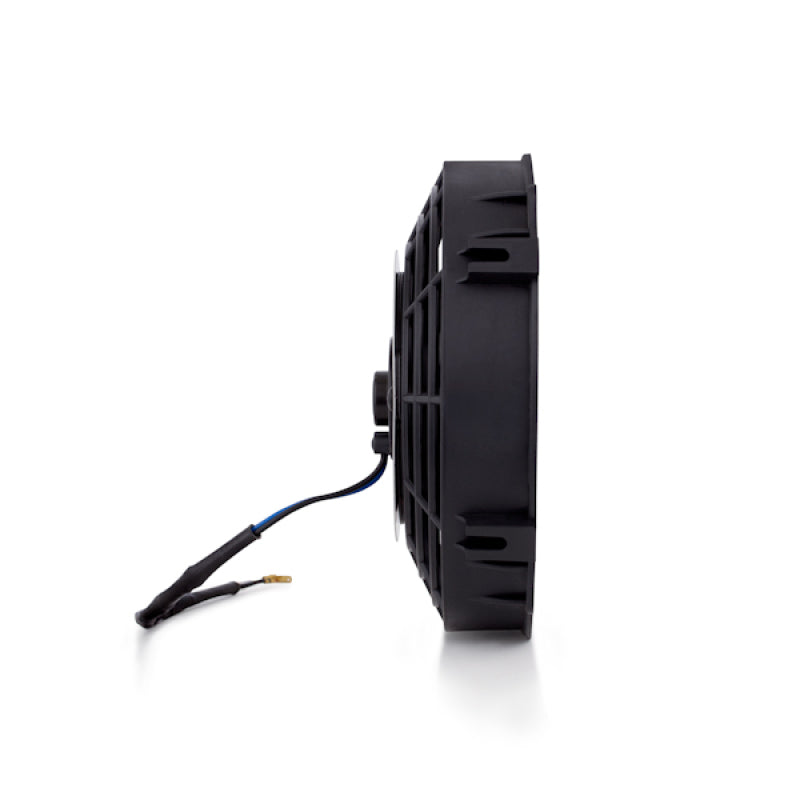

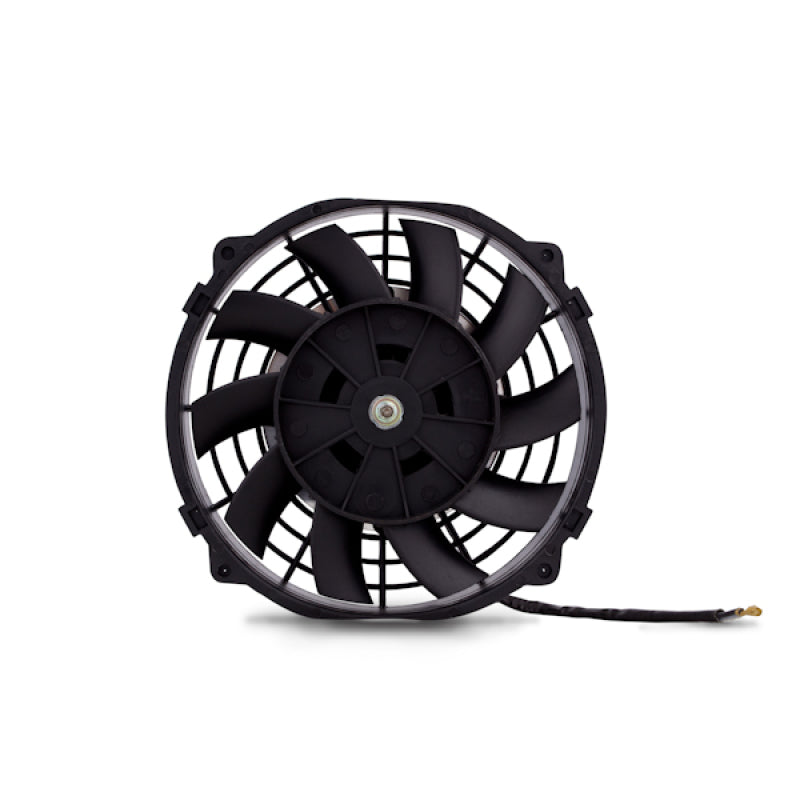

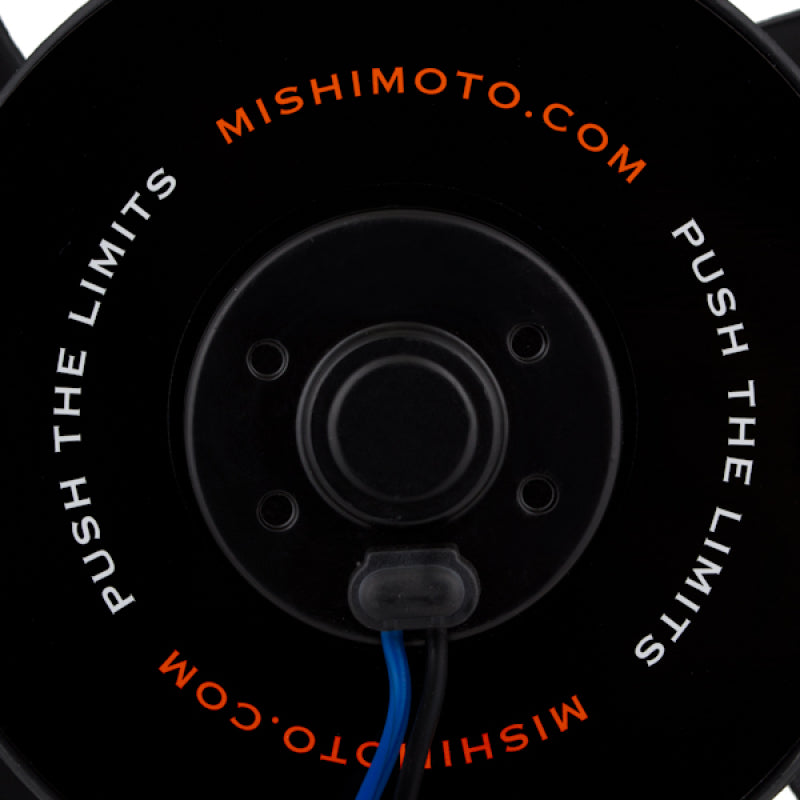

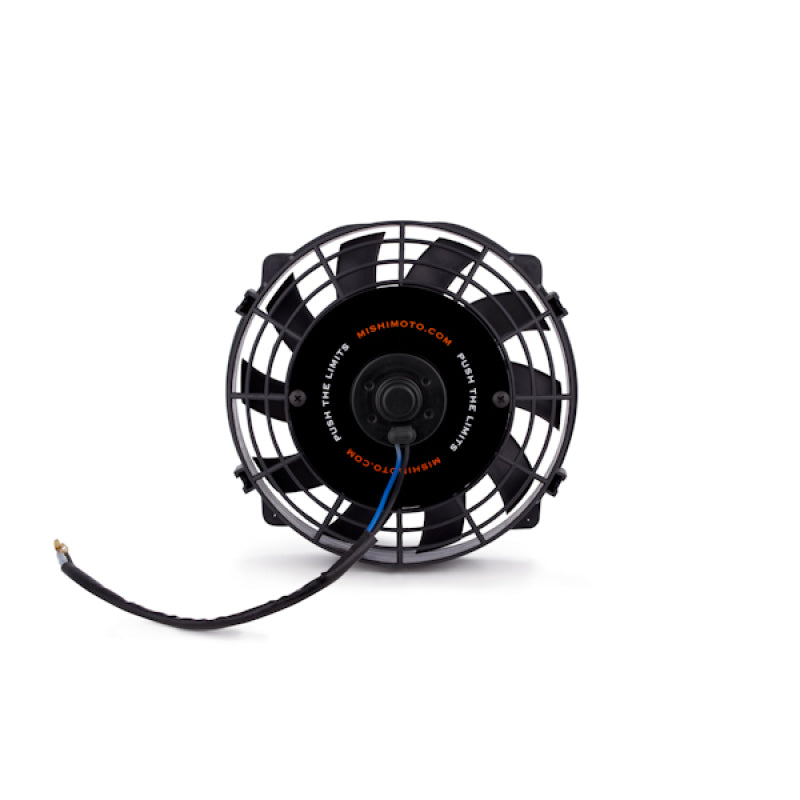

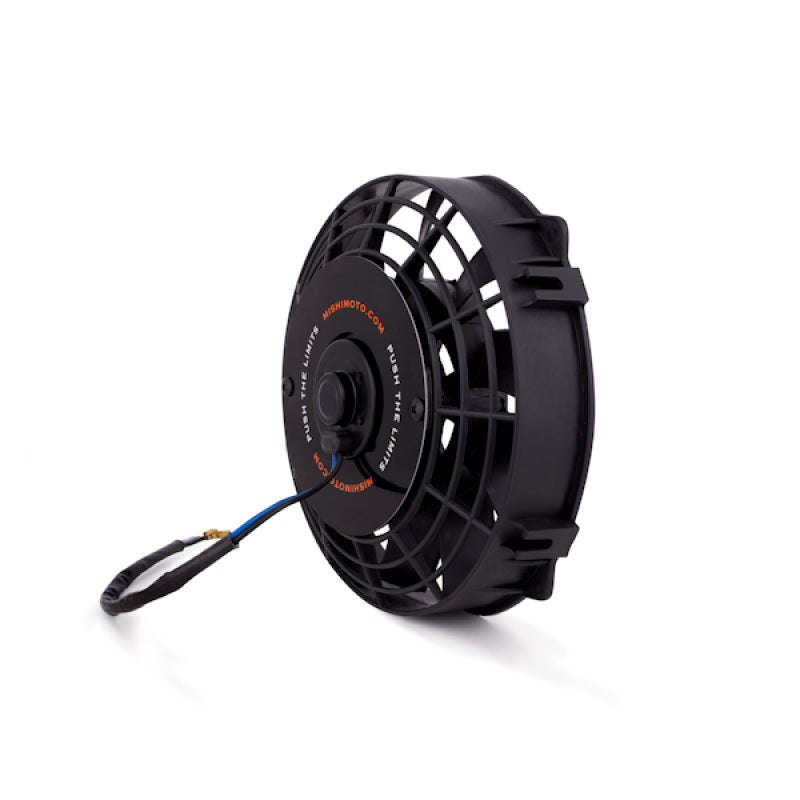

Mishimoto MMFAN-8 - 8 Inch Electric Fan 12V
Electric Fan, Slim, Curved Blade, Black, 8 in
High-performance component designed to enhance thermal efficiency, durability, and reliability under demanding conditions. Engineered to support optimal temperature control and system performance across applications.
This fan can be used as an upgrade to the OEM fan for more efficient cooling or fitment issues with aftermarket products. With its slim design, the fan can easily be installed flush against a radiator. For universal installation, use Mishimoto universal fan mount kit (P/N: MMFAN-MOUNT).
- High-flow fan provides 600 cfm of airflow
- Universal fitment
- Compact design with a diameter of 8-in and an overall thickness of only 3.15-in provides increased engine bay space
TechSpec Includes: (1) Mishimoto Fan--(4) Mounting Tabs--Mishimoto Lifetime Warranty
TechSpec CFM: 600
TechSpec Depth (in): 3.14
TechSpec Diameter (in): 8
TechSpec RPM: 3000
TechSpec Amp Draw (Start): 8
TechSpec Blade Style: Curved
TechSpec Airflow Direction: Pull
TechSpec Reversible?: True
TechSpec Amp Draw (Running): N/A
TechSpec Applications: N/A
TechSpec Installation Notes: Mishimoto recommends the use of a fan shroud for optimal operation.----Reversing polarity and physically flipping the fan blades can enable pusher functionality, but the original design optimization for puller configuration may limit performance.
TechSpec Wiring Connection: Female Snap-Plug Terminal
SellingPoint01: High-flow fan provides 600 cfm of airflow
SellingPoint02: Universal fitment
SellingPoint03: Compact design with a diameter of 8-in and an overall thickness of only 3.15-in provides increased engine bay space
SellingPoint04: Easily reversible for use as a pusher or puller fan
SellingPoint05: Mishimoto Lifetime Warranty
SellingPoint06: N/A
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Amperage Rating: 8
Blade Color: Black
Blade Included: Yes
Blade Material: Plastic
Blade Quantity: 10
Blade Type: Curved
Control Module Included: No
Electrical Or Mechanical: Electrical
Fan Clutch Mounted: No
Grade Type: Performance
Hub Depth: 3.14
Maximum CFM: 600
Maximum RPM: 3000
Motor Included: Yes
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Outside Diameter: 8
Reversible: Yes
Shroud Included: Yes
Shroud Material: Acrylonitrile Butadiene Styrene (ABS)
Voltage: 12
Wiring Harness Included: No
