Mishimoto MMCPKG-CK-63 - 63-66 GM C/K Truck 250/283/292 Cooling Package
Cooling Package, fits Chevrolet/GMC C/K Truck 250/283/292
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
Mishimoto's 1963-1966 C/K Truck Cooling Package combines the best Mishimoto products into one, easy to order package. The combination of Mishimoto's radiator, fan shroud, and thermostat create a high performance cooling system for your classic vehicle that will never let you down. Whether your C/K Truck is used as a weekend cruiser or a drag strip monster, Mishimoto's classic cooling package will provide the ultimate coolant system upgrade. As with all our products, this C/K Truck cooling package includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
- All-aluminum fan shroud and radiator construction increases heat and pressure tolerance
- 3-Row brazed aluminum radiator core
- Billet aluminum radiator fill neck
SellingPoint08: Mishimoto thermostat opens at lower temperature (180F) than standard thermostats, allowing coolant to flow through the engine sooner, reducing engine temperatures
SellingPoint09: Thermostat is digitally calibrated for precise, consistent operation
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 4
Core Construction: Tube-and-Fin
Core Height: 22.8
Core Length: 17.4
Core Material: Aluminum
Core Row Quantity: 3
Core Thickness: 2
Down Flow Or Cross Flow Type: Down Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Drain Plug Thread Type Standard: Metric
End Tank Construction: Cast
End Tank Material: Aluminum
Grade Type: Performance
Inlet Diameter: 1.75
Inlet Location: Top Left
Internal Transmission Oil Cooler: Yes
Mounting Hardware Included: Yes
Outlet Diameter: 1.75
Outlet Location: Bottom Right
Overall Height: 25.2
Overall Length: 23
Overall Width: 4.5
Radiator Cap Included: Yes
Tank Material: Aluminum
Thermostat Included: Yes
TechSpec Overall Height (in): 25.2
TechSpec Overall Length (in): 23
TechSpec Overall Width (ins): 4.5
TechSpec Core Length (in): 17.4
TechSpec Core Height (in): 22.8
TechSpec Fluid Capacity (gal): N/A
TechSpec Rows: 3
TechSpec Inlet (in): 1.75
TechSpec Outlet (in): 1.75
TechSpec Core Thickness (in): 2
TechSpec Drain Plug Thread Size: N/A
TechSpec DPI: N/A
TechSpec Material: N/A
TechSpec Applications: 1963-1966 GMC C/K Pickup--1963-1966 GMC C/K Suburban
TechSpec Engine Codes: 250ci (4.1L) L6--283ci (4.6L) V8--292ci (4.8L) L6
TechSpec Chassis Codes: N/A
TechSpec Note: Electric fans already come attached to the shroud

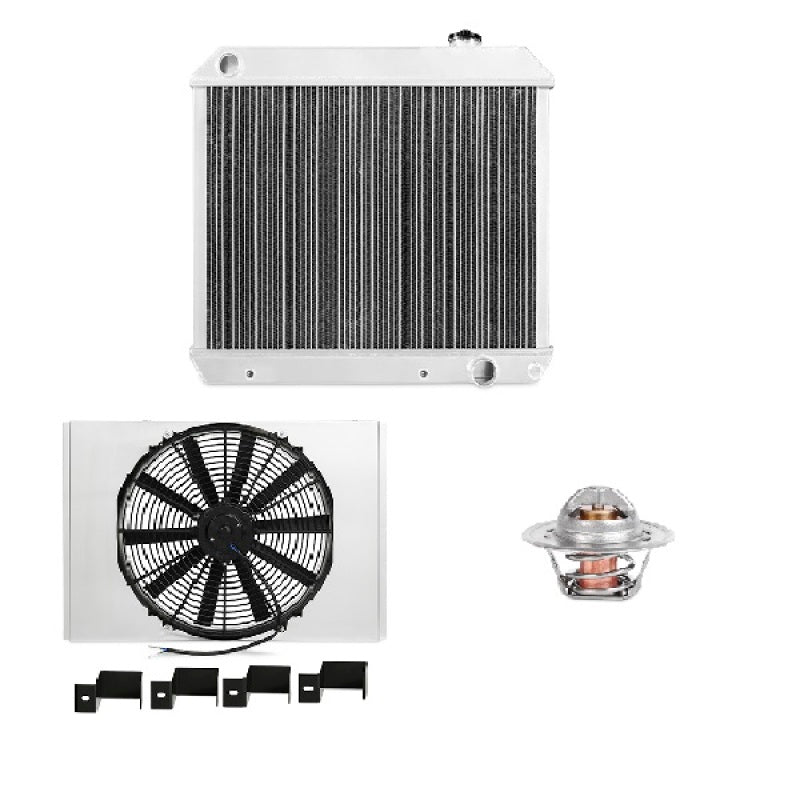

TechSpec Includes: Mishimoto Radiator-- Mishimoto Radiator Cap-- Magnetic Drain Plug-- Aluminum Fan Shroud-- 16-inch Mishimoto Slim Electric Fan--Mounting Hardware-- Mishimoto Thermostat--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for 1963-1966 Chevy/GMC C/K Truck with a 250, 283 or 292
SellingPoint02: All-aluminum fan shroud and radiator construction increases heat and pressure tolerance
SellingPoint03: 3-Row brazed aluminum radiator core
SellingPoint04: Billet aluminum radiator fill neck
SellingPoint05: Radiator includes internal transmission cooler to ensure optimal fluid temperatures
SellingPoint06: Includes a high-flow 16-in electric fan, providing over 1850 cfm of airflow
SellingPoint07: Fan Shroud replaces failure-prone stock mechanical fan
