Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
Mishimoto's 1965-1967 Chevrolet Chevelle Cooling Package combines the best Mishimoto products into one, easy to order package. The combination of Mishimoto's radiator, fan shroud, and thermostat create a high performance cooling system for your classic vehicle that will never let you down. Whether your Chevelle is used as a weekend cruiser or a drag strip monster, Mishimoto's classic cooling package will provide the ultimate coolant system upgrade. As with all our products, this Chevrolet Chevelle cooling package includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
TechSpec Overall Height (in): 21.7
TechSpec Overall Length (in): 27.7
TechSpec Overall Width (ins): 4.5
TechSpec Core Length (in): 24.7
TechSpec Core Height (in): 16
TechSpec Fluid Capacity (gal): N/A
TechSpec Rows: 3
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.75
TechSpec Core Thickness (in): 2.5
TechSpec Drain Plug Thread Size: N/A
TechSpec DPI: N/A
TechSpec Material: N/A
TechSpec Applications: 1965-1967 Chevrolet Chevelle (250ci 4.1L I6, 283ci 4.6L V8)----1966-1968 Chevrolet Impala (250ci 4.1L I6, 283ci 4.6L V8)----1966-1968 Chevrolet Caprice (250ci 4.1L I6, 283ci 4.6L V8)----1966-1968 Chevrolet Bel Air (250ci 4.1L I6, 283ci 4.6L V8)----1966-1968 Chevrolet Biscayne (250ci 4.1L I6, 283ci 4.6L V8)----1966-1967 Chevrolet El Camino (230ci 3.8L I6, 250ci 4.1L I6, 283ci 4.6L V8)----1966 Chevrolet Malibu (283ci 4.6L V8)
TechSpec Engine Codes: N/A
TechSpec Chassis Codes: N/A
TechSpec Note: MISHIMOTO ACTIVATION TEMPERATURE--180 F / 82 C----STOCK ACTIVATION TEMPERATURE--195 F / 90.5 C----FAN SPECIFICATIONS------MOUNTING HARDWARE--(4) Mounting Spacers--(4) 1-inch Self-tapping Screws----OVERALL SIZE--Length - 28.74-inch--Height - 19.7-inch--Width - .91-inch----CFM--Each fan puts out 1,300 CFM----NOTE--Electric fans already come attached to the shroud

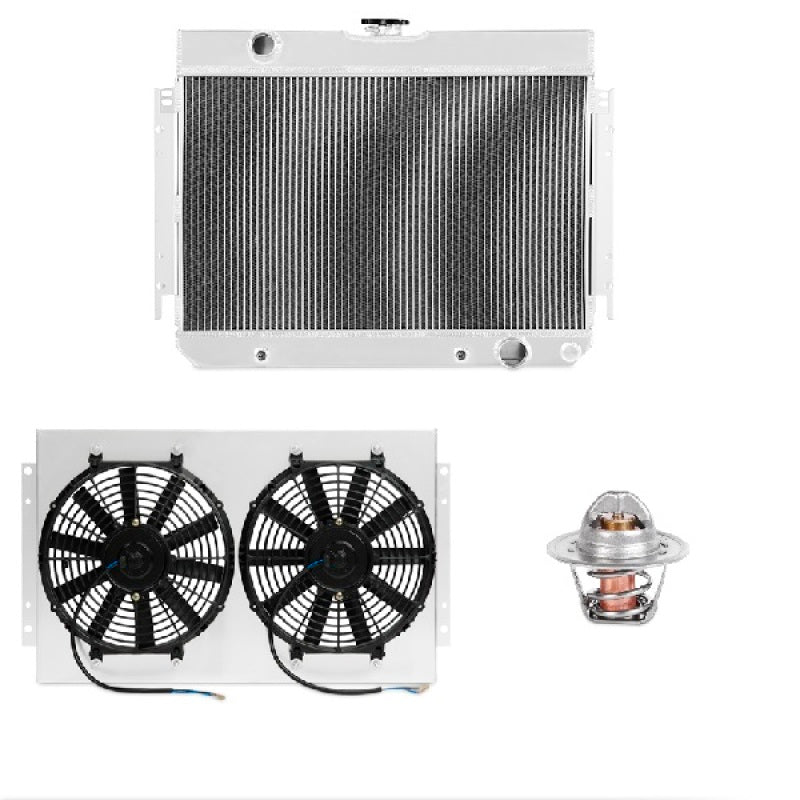

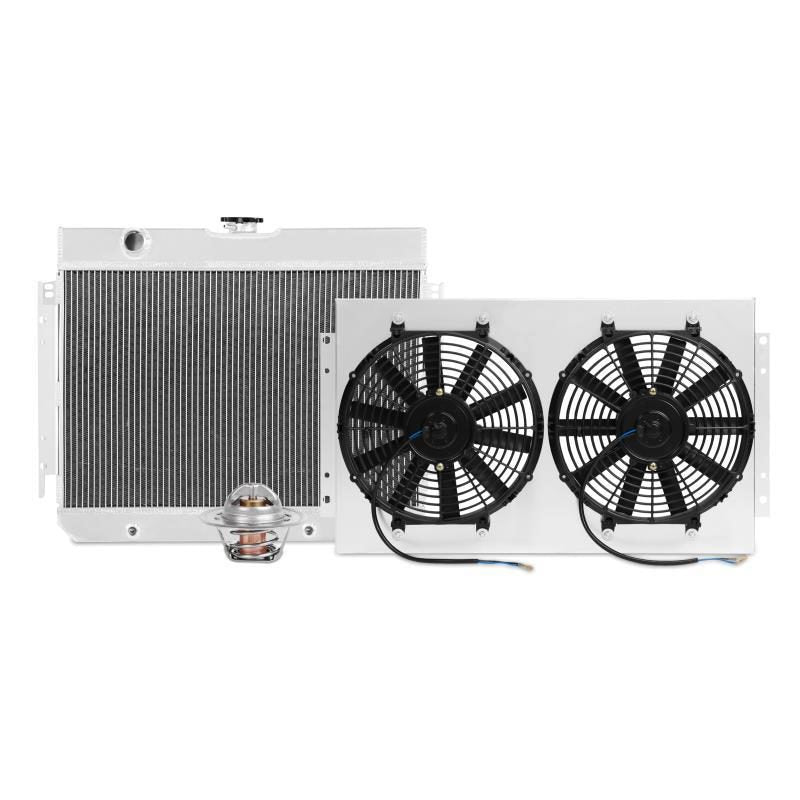

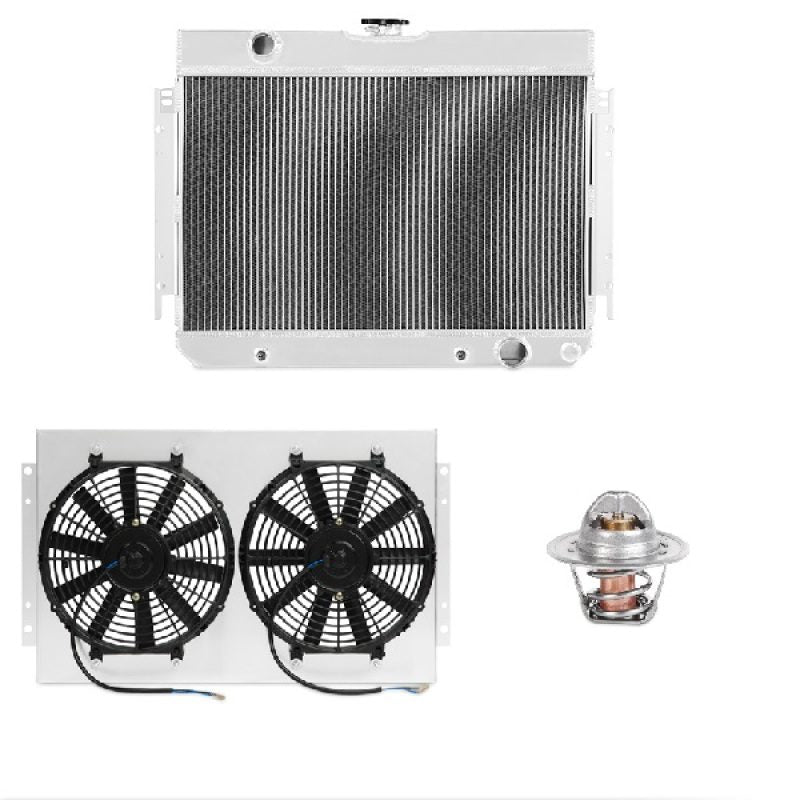

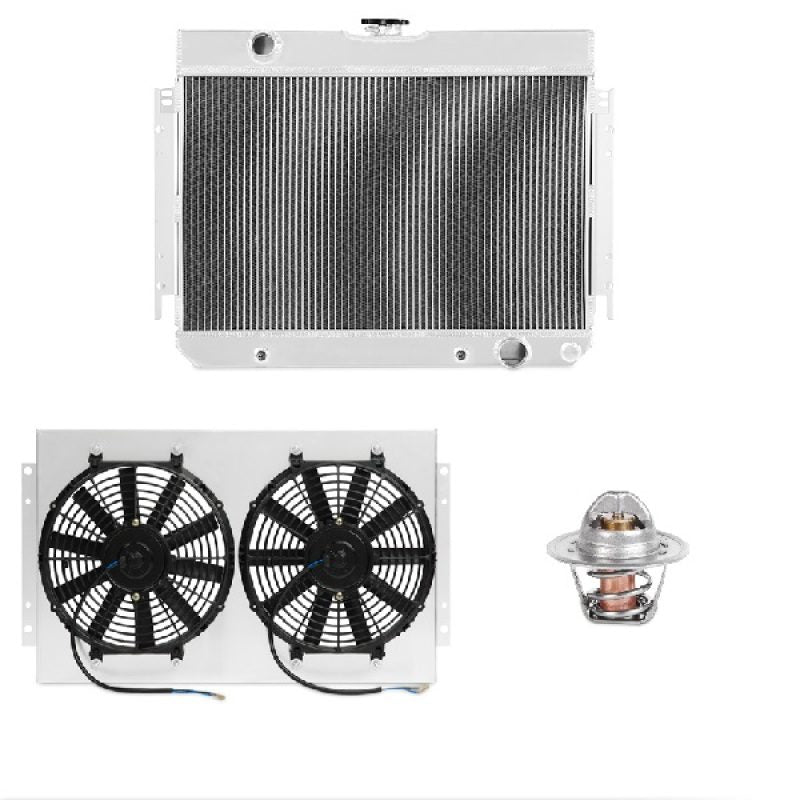

TechSpec Includes: Mishimoto Radiator-- Mishimoto Radiator Cap-- Magnetic Drain Plug-- Aluminum Fan Shroud--(2) 14-inch Mishimoto Slim Electric Fans--Mounting Hardware-- Mishimoto Thermostat--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for 1966-1968 Chevy Bel Air with a 250 or 283
SellingPoint02: All-aluminum fan shroud and radiator construction increases heat and pressure tolerance
SellingPoint03: 3-Row brazed aluminum radiator core
SellingPoint04: Billet aluminum radiator fill neck
SellingPoint05: Radiator includes internal transmission cooler to ensure optimal fluid temperatures
SellingPoint06: Includes two high-flow 12-in electric fans, each providing over 1150 cfm of airflow
SellingPoint07: Fan Shroud replaces failure-prone stock mechanical fan
SellingPoint08: Mishimoto thermostat opens at lower temperature (180F) than standard thermostats, allowing coolant to flow through the engine sooner, reducing engine temperatures
SellingPoint09: Thermostat is digitally calibrated for precise, consistent operation
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 4
Core Construction: Tube-and-Fin
Core Height: 16
Core Length: 24.7
Core Material: Aluminum
Core Row Quantity: 3
Core Thickness: 2.5
Down Flow Or Cross Flow Type: Down Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Drain Plug Thread Type Standard: Metric
End Tank Construction: Cast
End Tank Material: Aluminum
Grade Type: Performance
Inlet Diameter: 1.5
Inlet Location: Top Left
Internal Transmission Oil Cooler: Yes
Mounting Hardware Included: Yes
Outlet Diameter: 1.75
Outlet Location: Bottom Right
Overall Height: 21.7
Overall Length: 27.7
Overall Width: 4.5
Radiator Cap Included: Yes
Tank Material: Aluminum
Thermostat Included: Yes
