Mishimoto MMB-F2D-013 - 01-03 Ford 7.3L Powerstroke Ultimate Bundle

Mishimoto  |  SKU: MMB-F2D-013
$000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Mishimoto MMB-F2D-013 - 01-03 Ford 7.3L Powerstroke Ultimate Bundle

Ultimate Bundle, fits Ford 7.3L Powerstroke 2001-2003

Complete radiator kit designed for efficient engine cooling and reliable temperature control. Includes high-quality components for optimal heat dissipation, durability, and straightforward installation.

Restore your cooling system with the Mishimoto Ultimate Bundle for the 2001-2003 Ford 7.3L Powerstroke. The Mishimoto 7.3L Powerstroke Ultimate Bundle includes high-quality upgraded coolant components to replace items we've found to be the most failure-prone. For the 7.3L, we've bundled together our aluminum radiator, silicone radiator hose kit, high and low-temp thermostats, aluminum degas tank, and transmission cooler.Our radiator features a full aluminum construction with durable TIG-welded end tanks. This radiator is a two-row unit with a 2.2-in-thick brazed-aluminum core. To supplement this radiator upgrade, we've included our incredibly robust silicone radiator hose kit for the 7.3L. Mishimoto silicone hoses are constructed from high-grade 4-ply silicone with heat-resistant embedded fibers for superior heat and pressure tolerance. To ensure your Powerstroke runs at just the right temperature, we've included both our high and low-temperature thermostats. Our high-temp thermostat opens 10 degrees later than the stock thermostat for faster warmup, while our low-temp thermostat opens 6 degrees earlier for more efficient cooling.This ultimate kit also includes our full-aluminum TIG-welded degas bottle, an ideal upgrade to the brittle factory plastic unit. This degas tank features a 43-percent increase in coolant capacity over stock to help take some of the load off your cooling system. Finally, the included direct-fit transmission cooler provides a proven 10F (5.6C) drop in transmission fluid temperature.It's time to re-habilitate your 7.3L Powerstroke's cooling system with the Mishimoto Ultimate Bundle. As with all our Powerstroke products, this bundle includes the signature Mishimoto Lifetime Warranty.

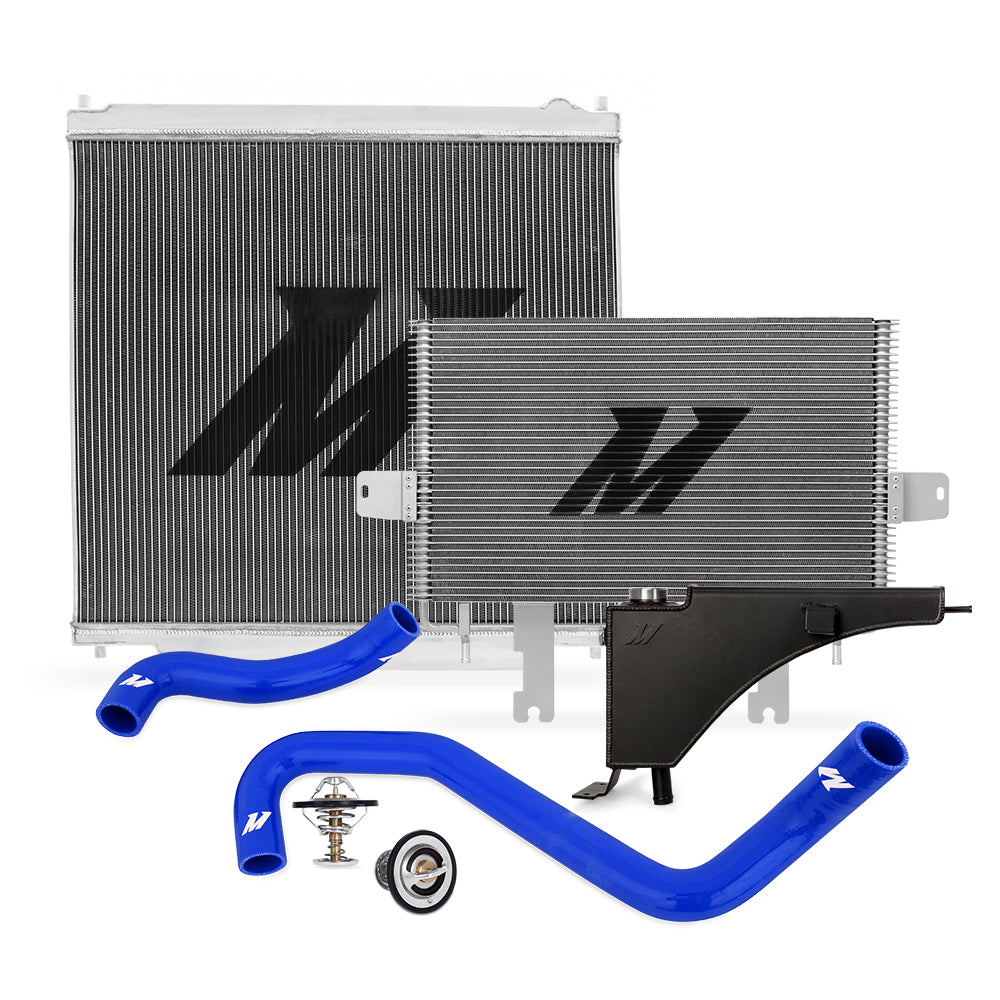

  • Ultimate bundle includes Mishimoto's aluminum radiator, silicone radiator hose kit, low-temperature thermostat, high-temperature thermostat, aluminum degas bottle, and transmission cooler
  • Ideal for trucks transporting heavy loads, towing, and/or driving in extreme environments
  • Complete cooling system upgrade for your engine and transmission
TechSpec Note: Please reference individual pages for additional product details and specifications:----Aluminum Radiator----Blue Silicone Radiator Hose Kit----Low-Temperature Thermostat----High-Temperature Thermostat----Aluminum Degas Bottle----Transmission Cooler----
TechSpec Includes: Mishimoto Radiator-- Magnetic Drain Plug--(2) Transmission Cooler Adapters--(2) Blue Silicone Radiator Hoses-- Aluminum Degas Tank-- Mishimoto Transmission Cooler-- Low-Temperature Thermostat-- High-Temperature Thermostat--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for 2001-2003 Ford trucks equipped with the 7.3L Powerstroke
SellingPoint02: Ultimate bundle includes Mishimoto’s aluminum radiator, silicone radiator hose kit, low-temperature thermostat, high-temperature thermostat, aluminum degas bottle, and transmission cooler
SellingPoint03: Ideal for trucks transporting heavy loads, towing, and/or driving in extreme environments
SellingPoint04: Complete cooling system upgrade for your engine and transmission
SellingPoint05: Radiator features full aluminum construction with durable, TIG-welded end tanks
SellingPoint06: Two-row, 2.2 inch-thick brazed aluminum core, provides increased fluid capacity and superior heat dissipation
SellingPoint07: Silicone radiator hose kit constructed from high-grade, 4-ply silicone with heat-resistant embedded fibers for superior heat and pressure tolerance
SellingPoint08: Full aluminum TIG-welded degas bottle features a 43-percent increase in coolant capacity compared to stock tank
SellingPoint09: 37-row stacked plate transmission cooler provides a 21-percent increase in core volume, resulting in a proven 10F (5.6C) drop in transmission fluid temperature
SellingPoint10: Low-temperature thermostat allows coolant to flow through the engine earlier, reducing the risk of overheating in hot environments
SellingPoint11: High-temperature thermostat restricts coolant to flow to the radiator for faster warm-up in cold environments
SellingPoint12: Mishimoto Lifetime Warranty
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 4
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (ins): N/A
TechSpec Core Length (in): N/A
TechSpec Core Height (in): N/A
TechSpec Fluid Capacity (gal): N/A
TechSpec Rows: N/A
TechSpec Inlet (in): N/A
TechSpec Outlet (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Drain Plug Thread Size: N/A
TechSpec DPI: N/A
TechSpec Material: N/A
TechSpec Applications: 2001-2003 Ford F-250 w/ 7.3L Powerstroke Engine--2001-2003 Ford F-350 w/ 7.3L Powerstroke Engine--2001-2003 Ford F-450 w/ 7.3L Powerstroke Engine--2001-2003 Ford F-550 w/ 7.3L Powerstroke Engine
TechSpec Engine Codes: 7.3L Powerstroke
TechSpec Chassis Codes: F-250--F-350--F-450--F-550
