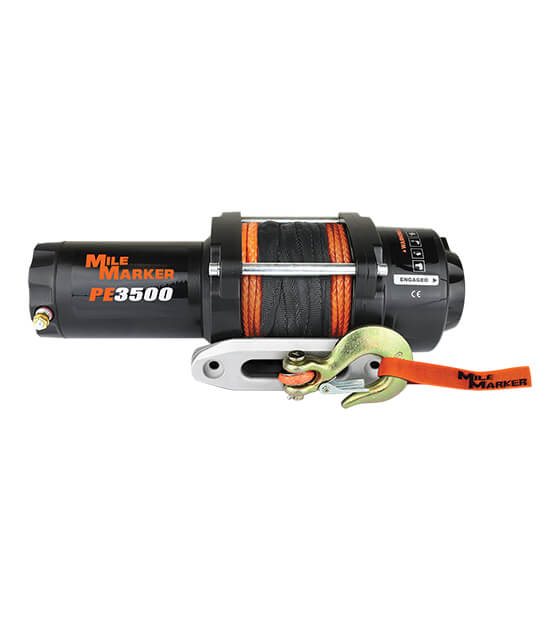

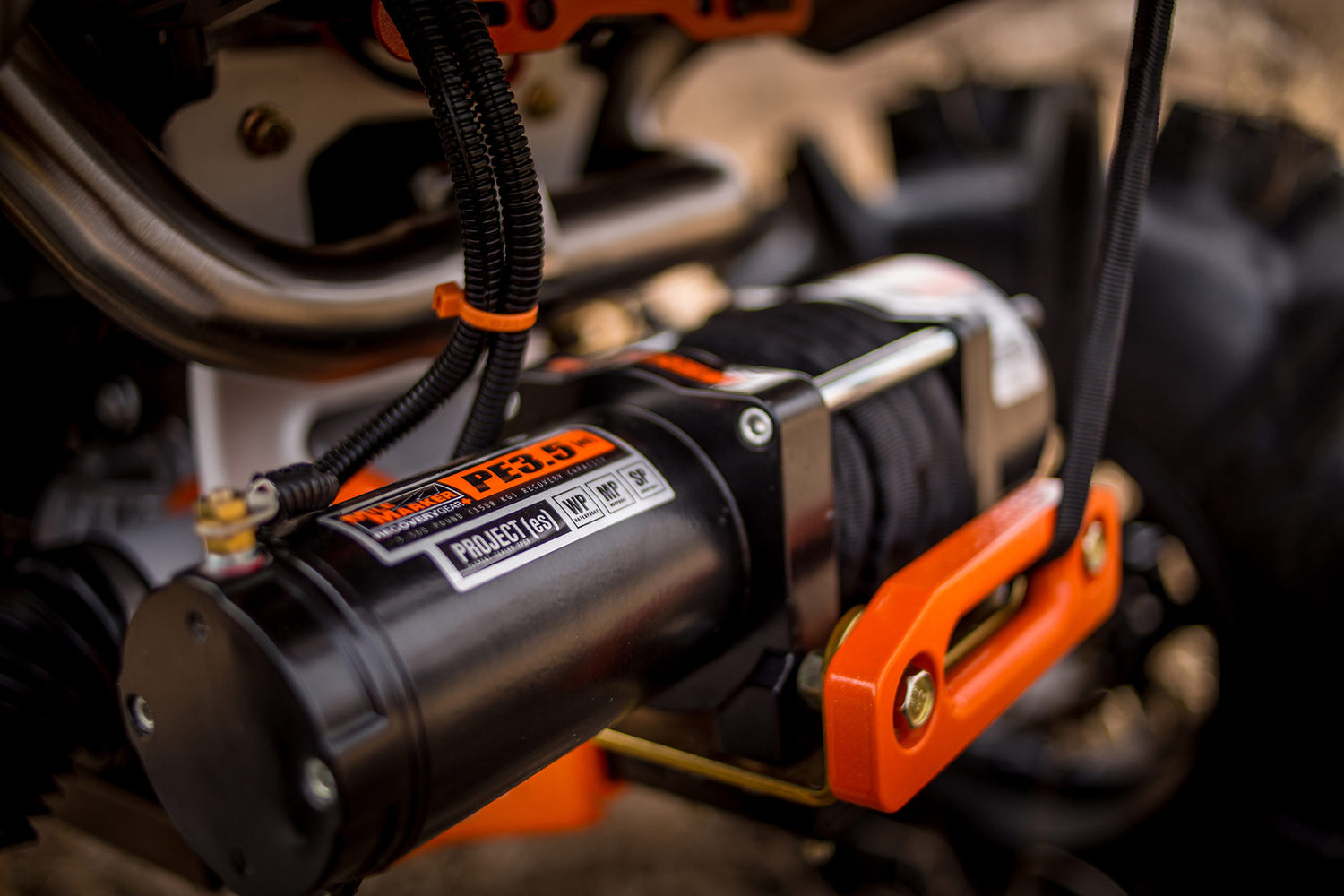

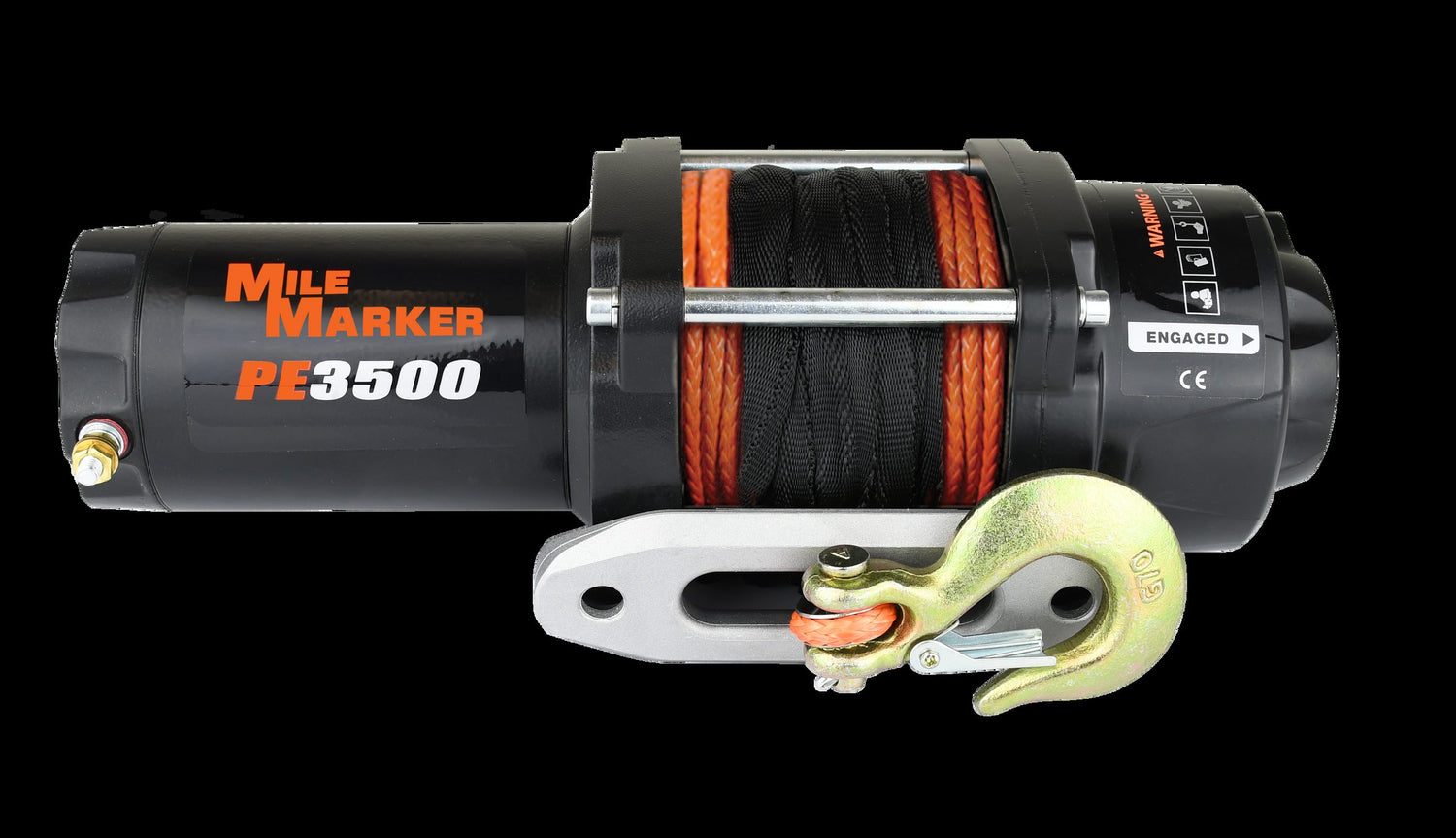

Mile Marker 77-53112BW - 3500 LB Winch Waterproof 12V 2.4 HP Permanent Magnet Motor w/Synthetic Rope Aluminum Fairlead PE3.5 ES

Mile Marker 77-53112BW - 3500 LB Winch Waterproof 12V 2.4 HP Permanent Magnet Motor w/Synthetic Rope Aluminum Fairlead PE3.5 ES

At less than 16 pounds, the Mile Marker PE3500winch for ATVs boasts top-of-the-line recovery speeds and an impressive 3500 pounds of pulling capacity.

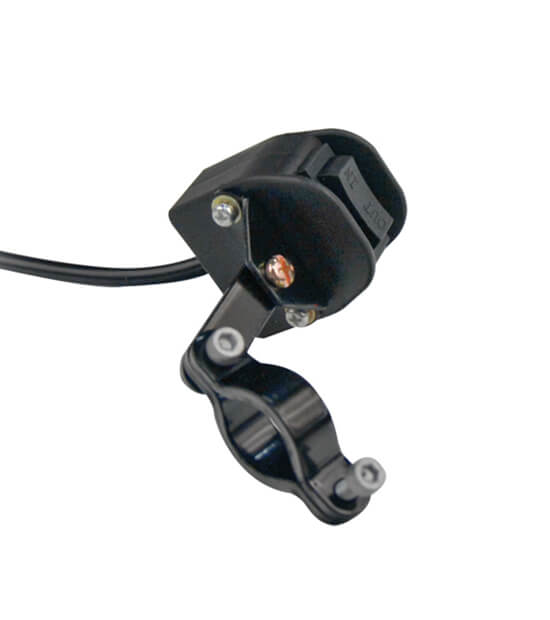

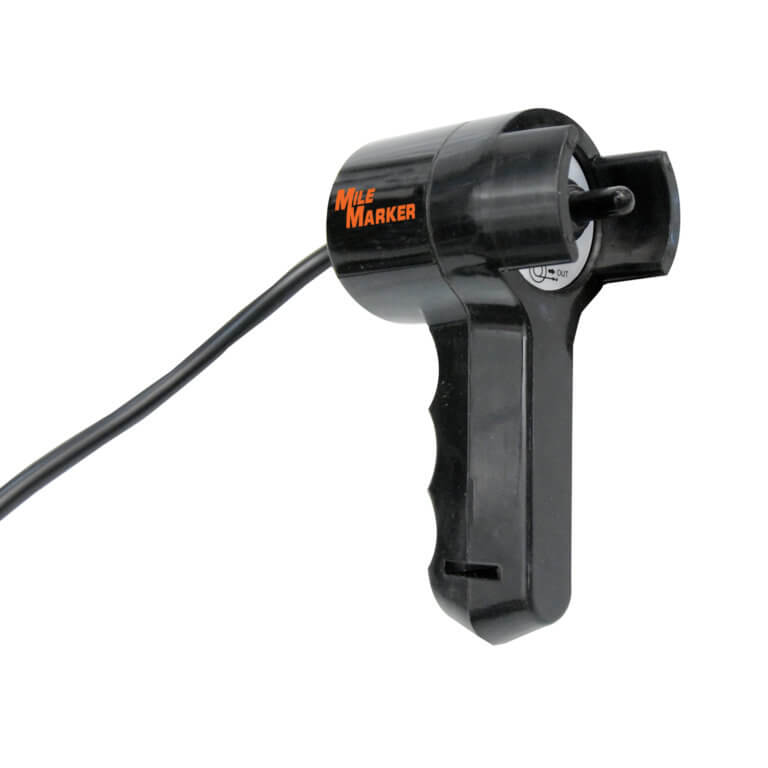

Fully-sealed, submersible, water, mud, and snow proof, the PE3500 includes a 7/32 inch x 50 foot synthetic rope, an aluminum hawse fairlead, a hook, corrosive-resistant, and a handheld remote control and a handle bar mounted remote control for versatility and convenience.

With the all-metal, 3-stage planetary gear train, 200-amp solenoid, high-output, permanent magnet motor and marine grade remote control connectors, the PE3500 provides the durability and reliability you can depend on in the most extreme situations.

Features:

• 2.4 HP Permanent Magnet Motor
• All Metal Planetary Gearing
• Submersible, 200 Amp Solenoid
• Automatic Load Holding Brake
• Center Focused Drum
• Fast Line Speeds
• 50 foot of Synthetic Rope
• Aluminum Hawse Fairlead
• Waterproof
• Handheld and Handlebar Remote Controls

Specifications:

• Rated line pull 3500 lbs (1588 kg) Single Line
• Gear Train 3 Stage Planetary
• Gear Ratio 242:1
• Motor Permanent Magnet, 2.4 hp (1.5kw), 12 V DC
• Remote Control Power-In, Power-Out Remote, 12 foot (3.6 m)
• Dimensions (LxWxH) 13.0 inch X 4.1 inch X 4.2 inch (330 mm X 105 mmX 108 mm)
• Synthetic Rope 7/32 inch X 50 foot (nominal 5440 lbs, 2468 kg) (5.5 mm X 15.2 m)
• Drum Size Diameter/Length 1.5 inch X 3.15 inch (38.1 mm X 80 mm)
• Net weight 15.9 lbs (9.4 kg)
• Bolt Pattern 4 Bolt Pattern, 4.88 inch X 3 inch (124 mm X 76.2 mm)
