Mile Marker 77-50105BW - 2500 LB Winch Waterproof 12V Motor w/3/16 x 42 Foot Steel Cable PE2.5 ES

Mile Marker 77-50105BW - 2500 LB Winch Waterproof 12V Motor w/3/16 x 42 Foot Steel Cable PE2.5 ES

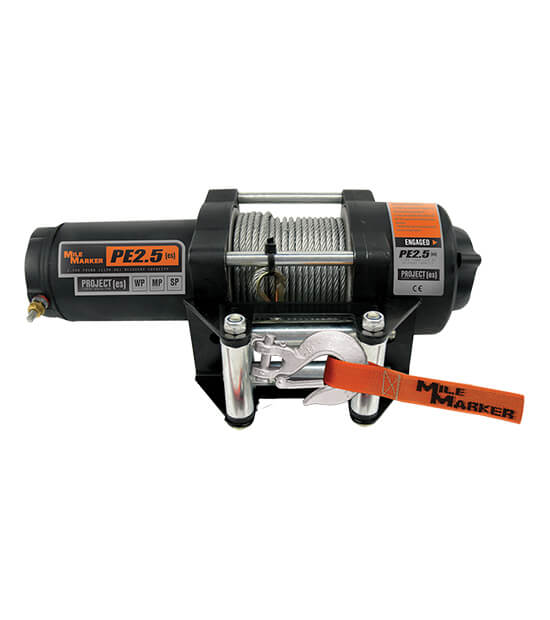

At only 18.5 pounds, the Mile Marker PE2500 winch for ATVs boasts top-of-the-line recovery speeds and an impressive 2500 pounds of pulling capacity.

Fully-sealed, submersible, water, mud, and snow proof, the PE2500 includes a 3/16 inch x 42 foot steel cable, a roller fairlead, a hook, corrosive-resistant, and a handheld remote control and a handle bar mounted remote control for versatility and convenience.

With the all-metal, 3-stage planetary gear train, 200-amp solenoid, high-output, permanent magnet motor and marine grade remote control connectors, the PE2500 provides the durability and reliability you can depend on in the most extreme situations.

Features:

• 2.4 HP Permanent Magnet Motor
• All Metal Planetary Gearing
• Submersible, 200 Amp Solenoid
• Automatic Load Holding Brake
• Center Focused Drum
• Fast Line Speeds
• 42 foot of Steel Cable
• Roller Fairlead
• Waterproof

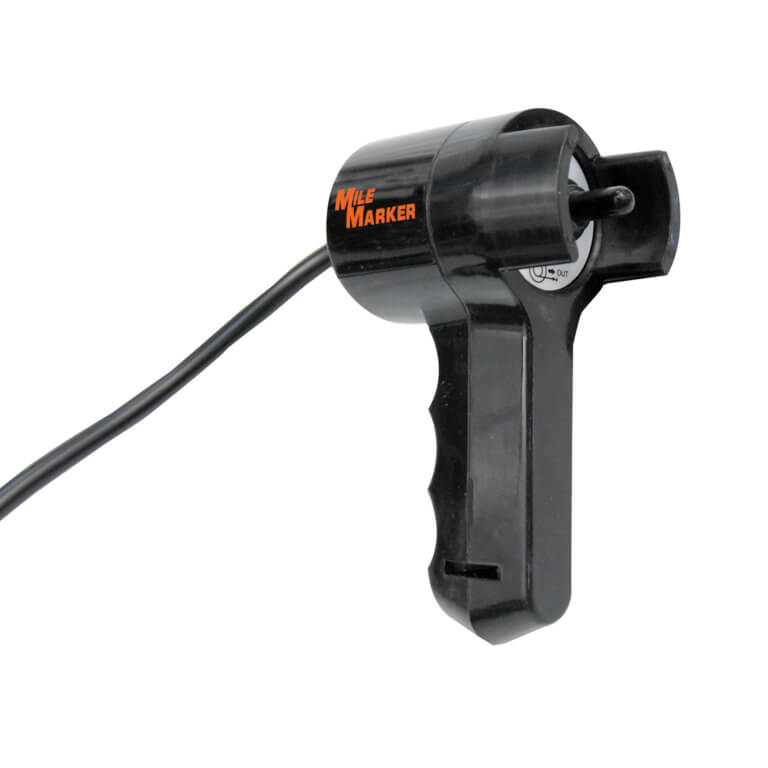

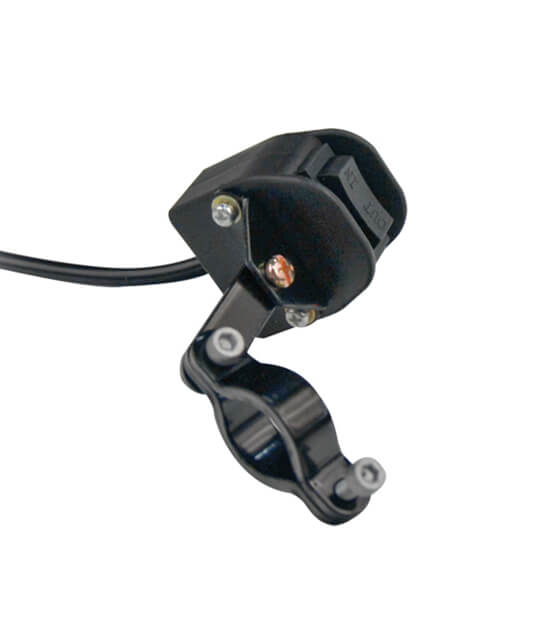

• Handheld and Handlebar Controls

Specifications:

• Rated line pull 2500 lbs (1134 kg) Single Line
• Gear Train 3 Stage Planetary
• Gear Ratio 242:1
• Motor Permanent Magnet, 2.4 hp (1.5kw), 12 VDC
• Remote Control Power-In, Power-Out Remote, 12 foot (3.7 m)
• Dimensions (LxWxH) 13.0 inch X 4.18 inch X 4.3 inch (330 mm X 106.2 mmX 109.2 mm)
• Steel Cable 3/16 inch X 42 foot (nominal 4200 lbs, 1905 kg) (4.8 mm X 12.7 m)
• Drum Size Diameter/Length 2 inch X 3.15 inch (50.8 mm X 80 mm)
• Net weight 18.5 lbs (11 kg)
• Bolt Pattern 4 Bolt Pattern, 4.88 inch X 3 inch,(124 mm X 76.2 mm)
