Mile Marker 76-53246BW - 9500 LB Winch W/ 92 Foot Synthetic Rope 4.9 HP Series Wound Motor SEC9.5 ES Premium

Mile Marker 76-53246BW - 9500 LB Winch W/ 92 Foot Synthetic Rope 4.9 HP Series Wound Motor SEC9.5 ES Premium

Proven Winch Design, Unmatched Value, Heavy duty series wound motors and rugged planetary gear sets are the backbone of Mile Marker. With robust controls and a fully sealed solenoid and body, the SEC12 and SEC95 are proven winches at an unmatched value.

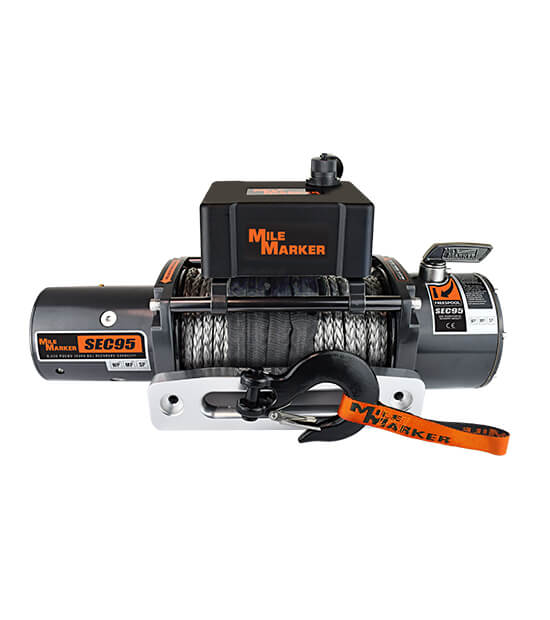

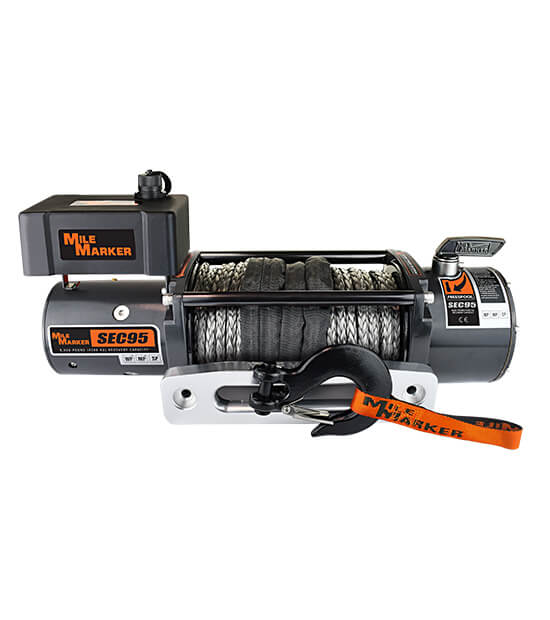

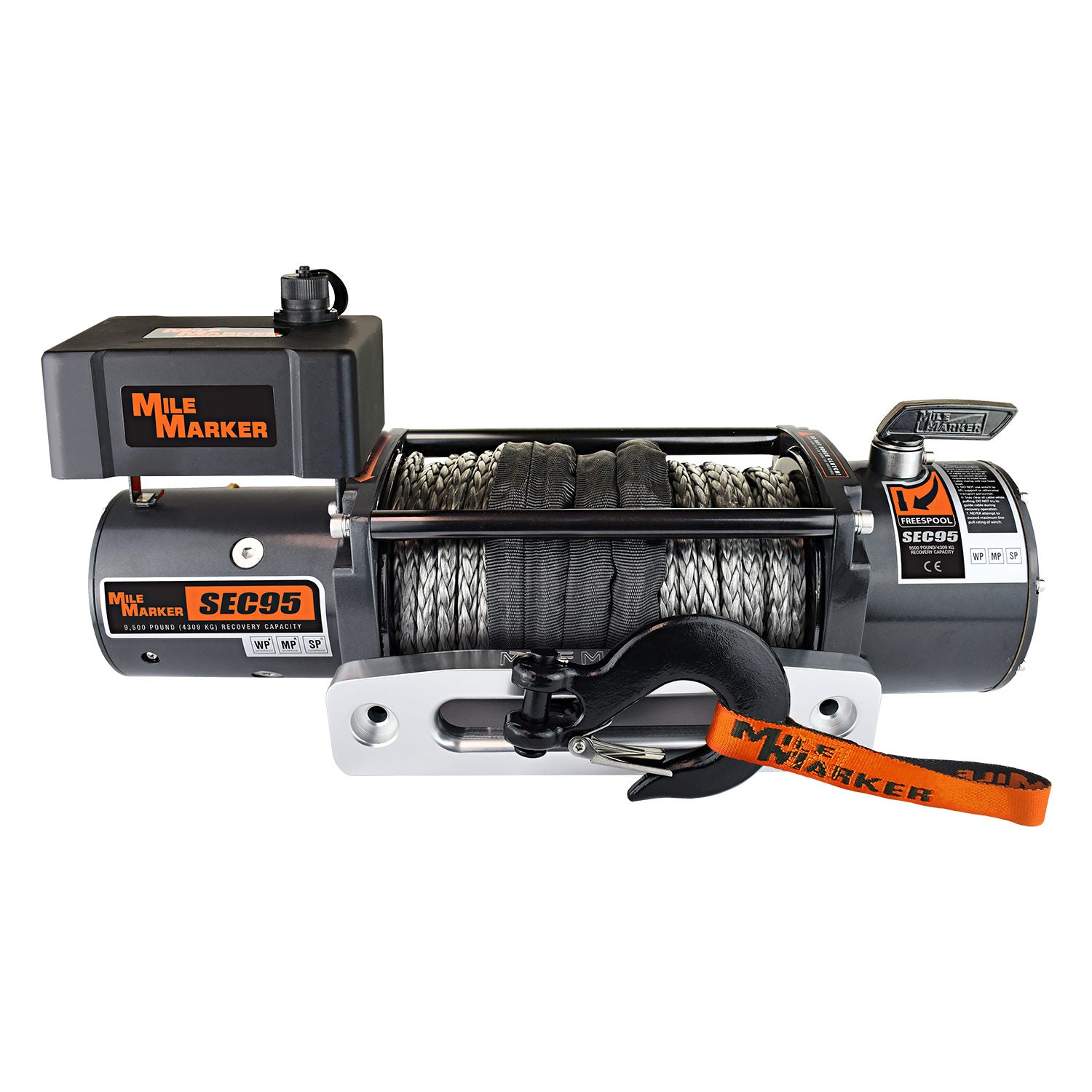

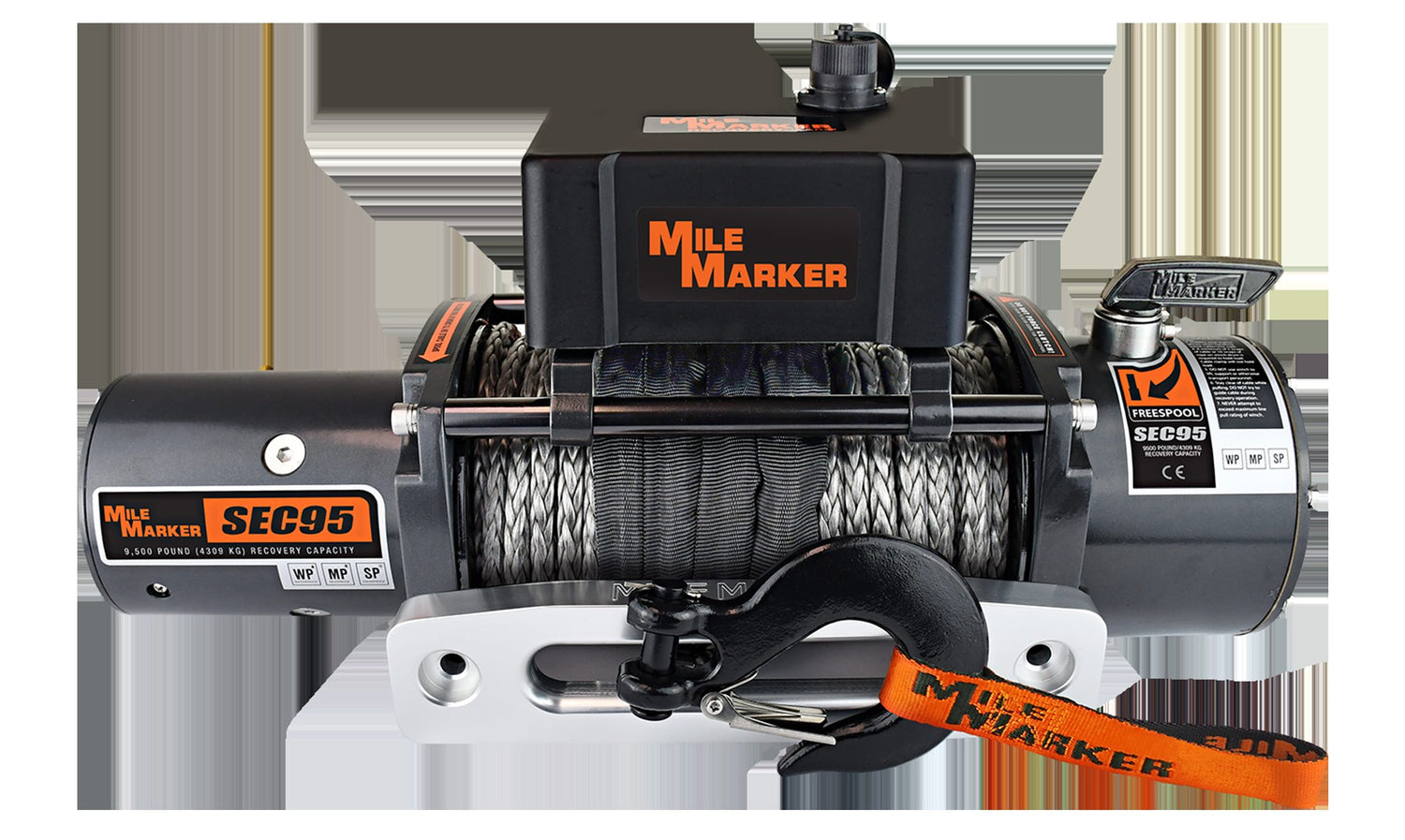

The Mile Marker SEC95 premium Jeep/Truck/SUV winch with a rugged 9,500 pound pull strength stands up to most any off-road environment. Powerful series-wound motors and rugged planetary gear sets are the backbone of this winch.

With robust controls, fully sealed 400-amp solenoid and body, and an integrated kill switch, the SEC95 is an industry-proven winch at an unmatched value.

Built with marine grade remote control connectors and fully-sealed, submersible, water, mud, and snow proof, each SEC95 comes with a 3/8 inch x 92 Foot Synthetic Rope, Aluminum Hawse Fairlead, stainless steel hardware, corrosive-resistant, a hook, and a handheld remote control with a 12 foot cord.

Features:

• 4.9 HP Series Wound Motor
• Rugged Planetary Gear Sets
• Clockable Gear Housing
• Fast Line Speeds
• Submersible, 400 Amp Solenoid
• Automatic Load Holding Brake
• Corrosion Resistant Stainless Steel Fasteners
• 92 Synthetic Rope
• Aluminum Hawse Fairlead
• Waterproof

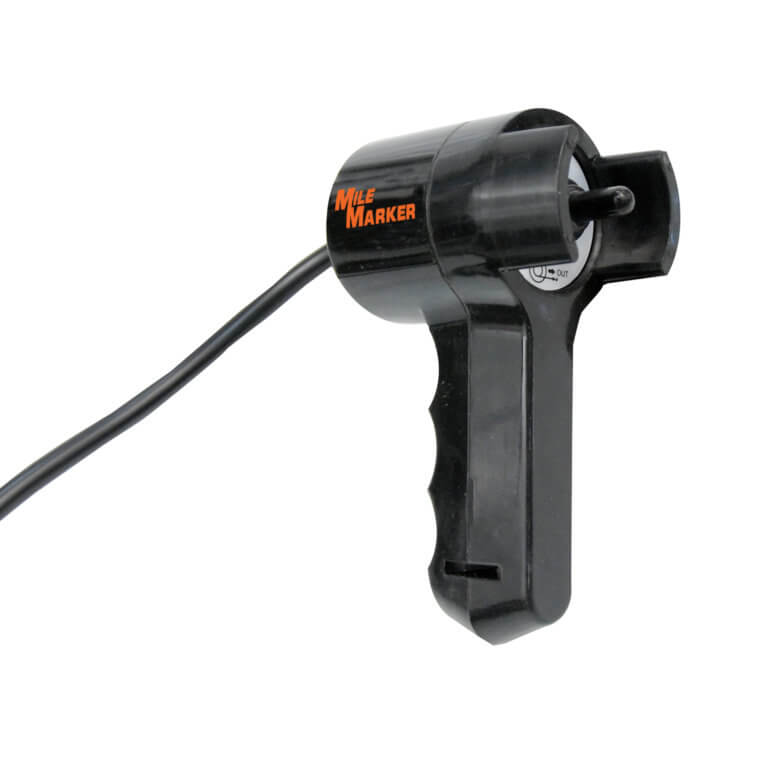

• Handheld Remote control

Specifcations:

• Rated line pull 9500 lbs (4309 Kgs)
• Gear Train 3 Stage Planetary
• Gear Ratio 210:1
• Motor Series Wound, 4.9 hp (3.6 kw), 12V
• Remote Control Power In, Power Out Remote, 12 foot
• Dimensions (LxWxH) 22.25 inch X 6.25 inch X 8.00 inch (565.2 mm X 158.8 mm X 203.2 mm)
• Steel Cable 3/8 inch X 100 foot (nominal 14,400 lbs, 6531 kg) (9.53 mm X 30.5 m)
• Drum Size 2.5 inch X 9 inch (63.5 mm X 228.6 mm)
• Net weight 67 lbs (30.3 Kg)
• Bolt Pattern 4 Bolt Pattern, 4.5 inch X 10 inch, (114.3 mm X 254 mm)
