Mile Marker 76-50251BW - 12000 LB Winch Waterproof 12V 4.8 HP Wound Motor w/Standard Electronics SEC12 ES

Mile Marker 76-50251BW - 12000 LB Winch Waterproof 12V 4.8 HP Wound Motor w/Standard Electronics SEC12 ES

Proven Winch Design, Unmatched Value, Heavy duty series wound motors and rugged planetary gear sets are the backbone of Mile Marker. With robust controls and a fully sealed solenoid and body, the SEC12 and SEC95 are proven winches at an unmatched value.

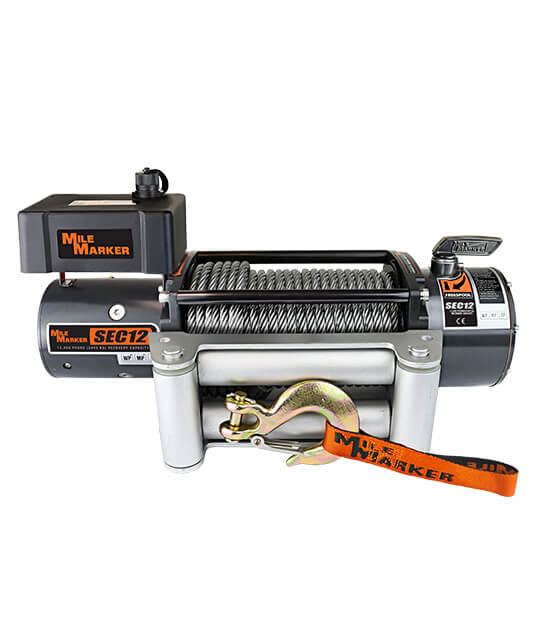

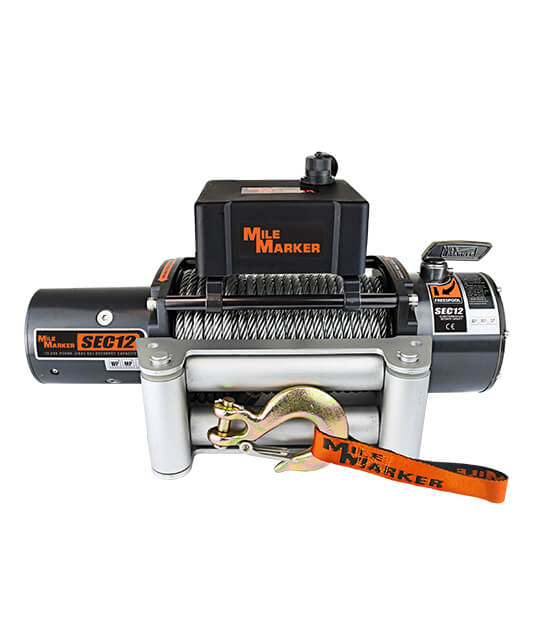

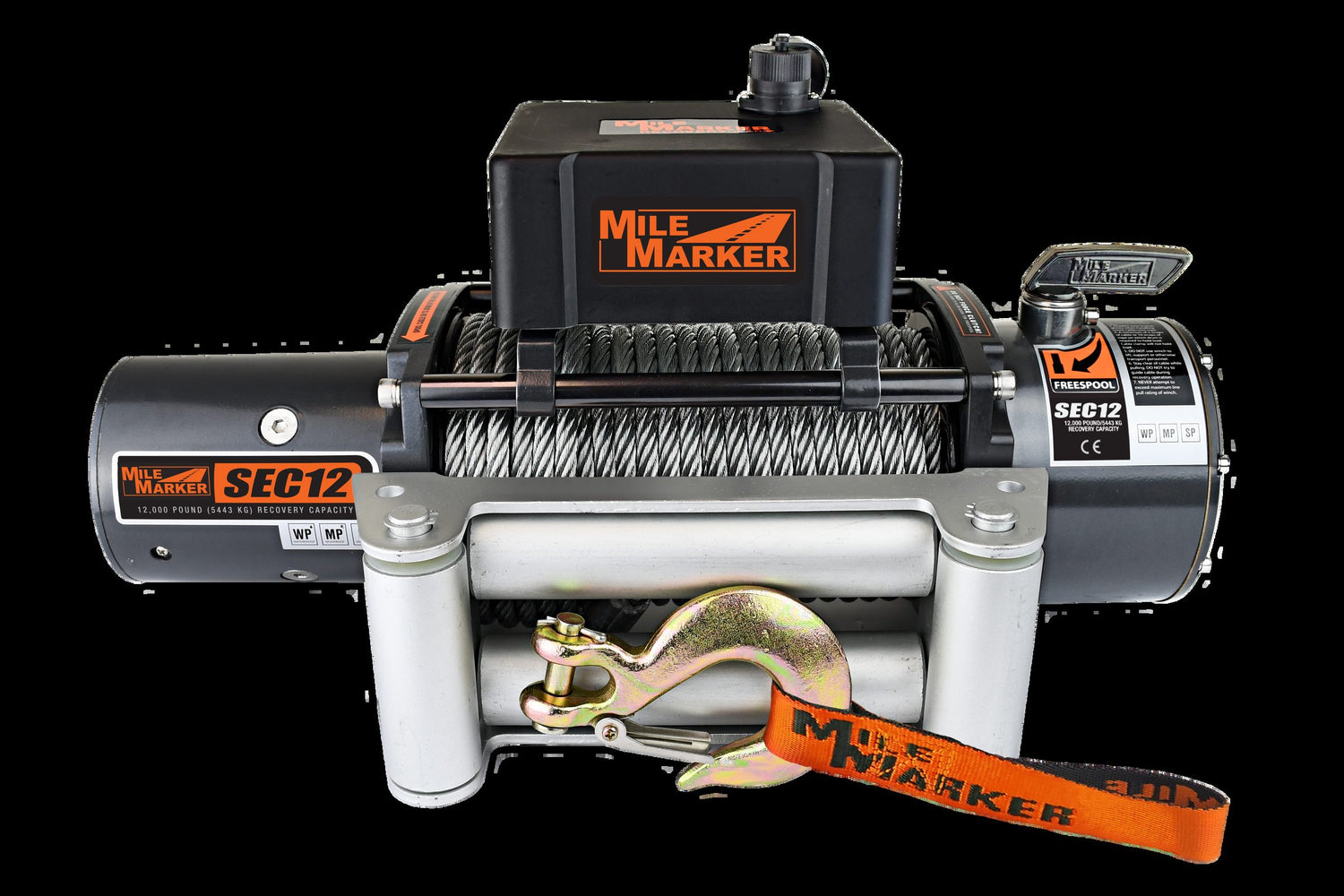

The Mile Marker SEC12 premium Jeep/Truck/SUV winch with an impressive 12,000 pound pull strength stands up to the most aggressive off-road environments. Powerful series-wound motors and rugged planetary gear sets are the backbone of this winch.

With robust controls, fully sealed 400-amp solenoids and body, and an integrated kill switch, the SEC12 is an industry proven winch at an unmatched value.

Built with marine grade remote control connectors and fully-sealed, submersible, water, mud, and snow proof, each SEC12 comes with a 3/8 inch x 100 foot steel cable, a roller fairlead, stainless steel hardware, corrosive-resistant, and a handheld remote control with a 12 foot cord.

Features:

• 4.9 HP Series Wound Motor
• Rugged Planetary Gear Sets
• Clockable Gear Housing
• Fast Line Speeds
• Submersible, 400 Amp Solenoid
• Automatic Load Holding Brake
• Corrosion Resistant Stainless
• Steel Fasteners
• 100 foot Steel Cable
• Roller Fairlead
• Waterproof

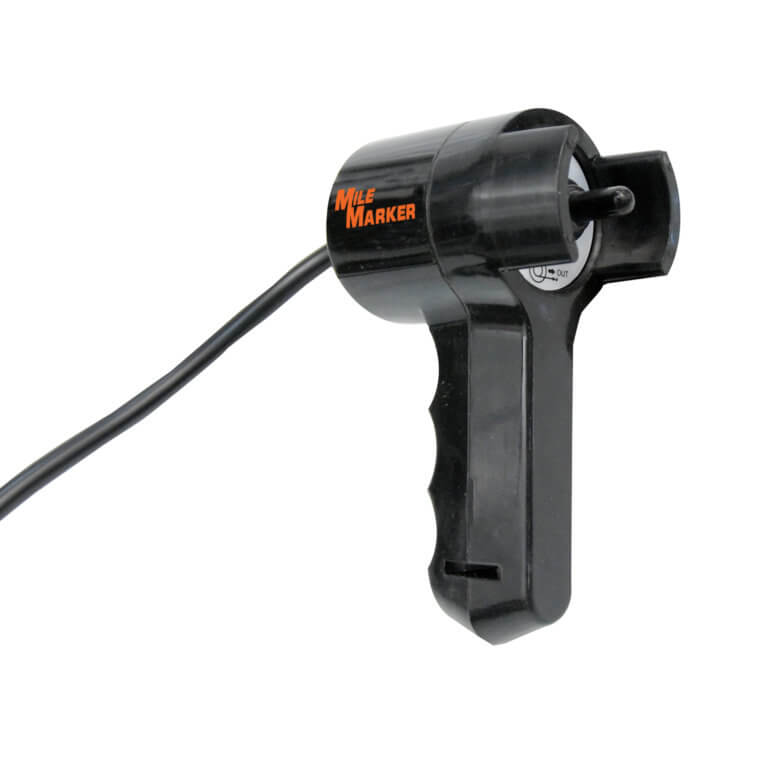

• Handheld Remote Control

Specifications: 12K

• Rated line pull 12000 lbs (5443 Kgs)
• Gear Train 3 Stage Planetary
• Gear Ratio 294:1
• Motor Series Wound, 4.9 hp (3.6 KW), 12V
• Remote Control Power In, Power Out Remote, 12 foot
• Dimensions (LxWxH) 22.25 inch X 6.25 inch X 8.00 inch (565.2 mm X 158.8 mmX 203.2 mm)
• Steel Cable 3/8 inch X 100 foot (9.53 mm X 30.5 m)
• Drum Size 2.5 inch X 9 inch (63.5 mm X 228.6 mm)
• Net weight 92 lbs. (41.7 kg)
• Bolt Pattern 4 Bolt Pattern, 4.5 inch X 10 inch, (114.3 mm X 254 mm)
