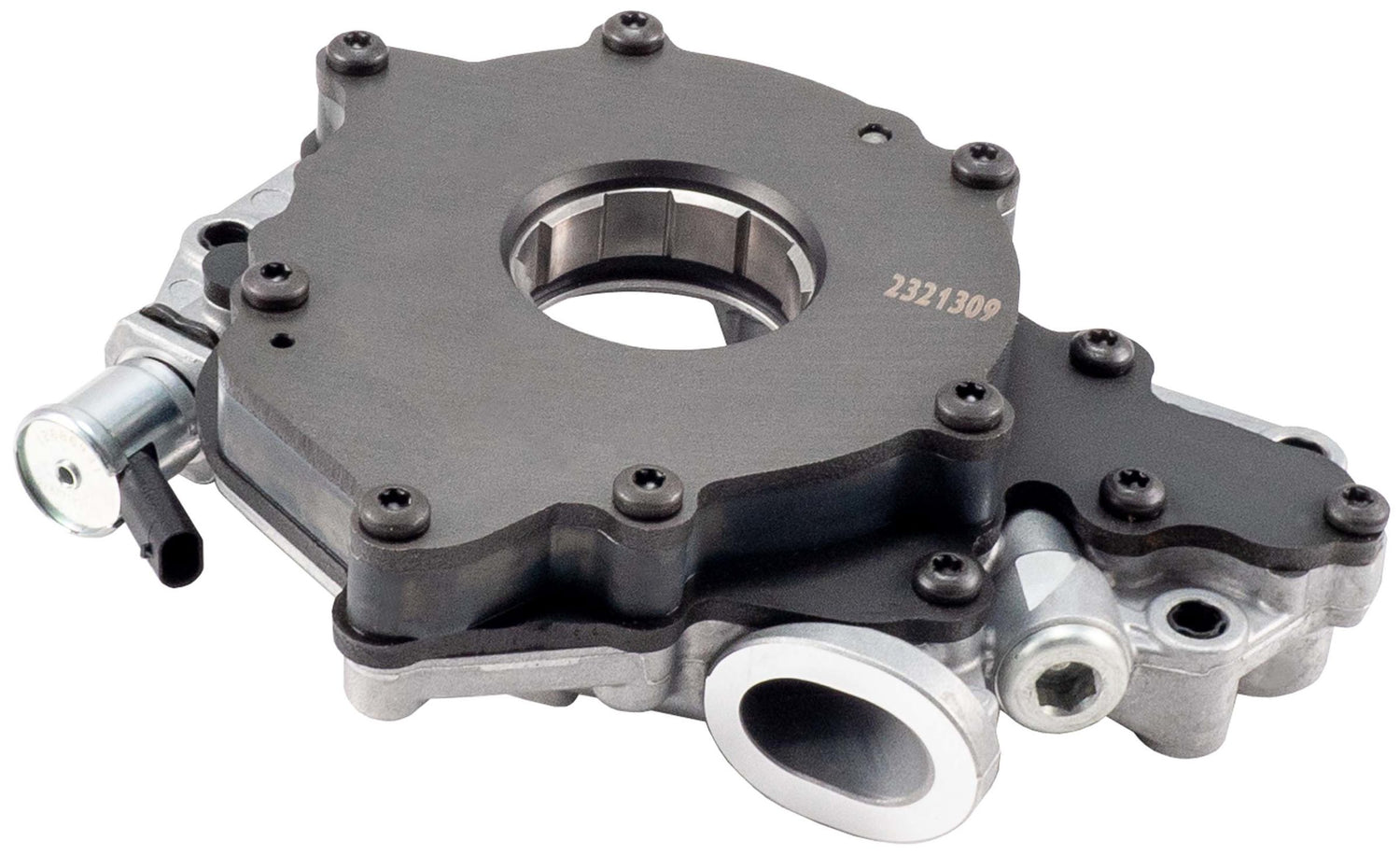

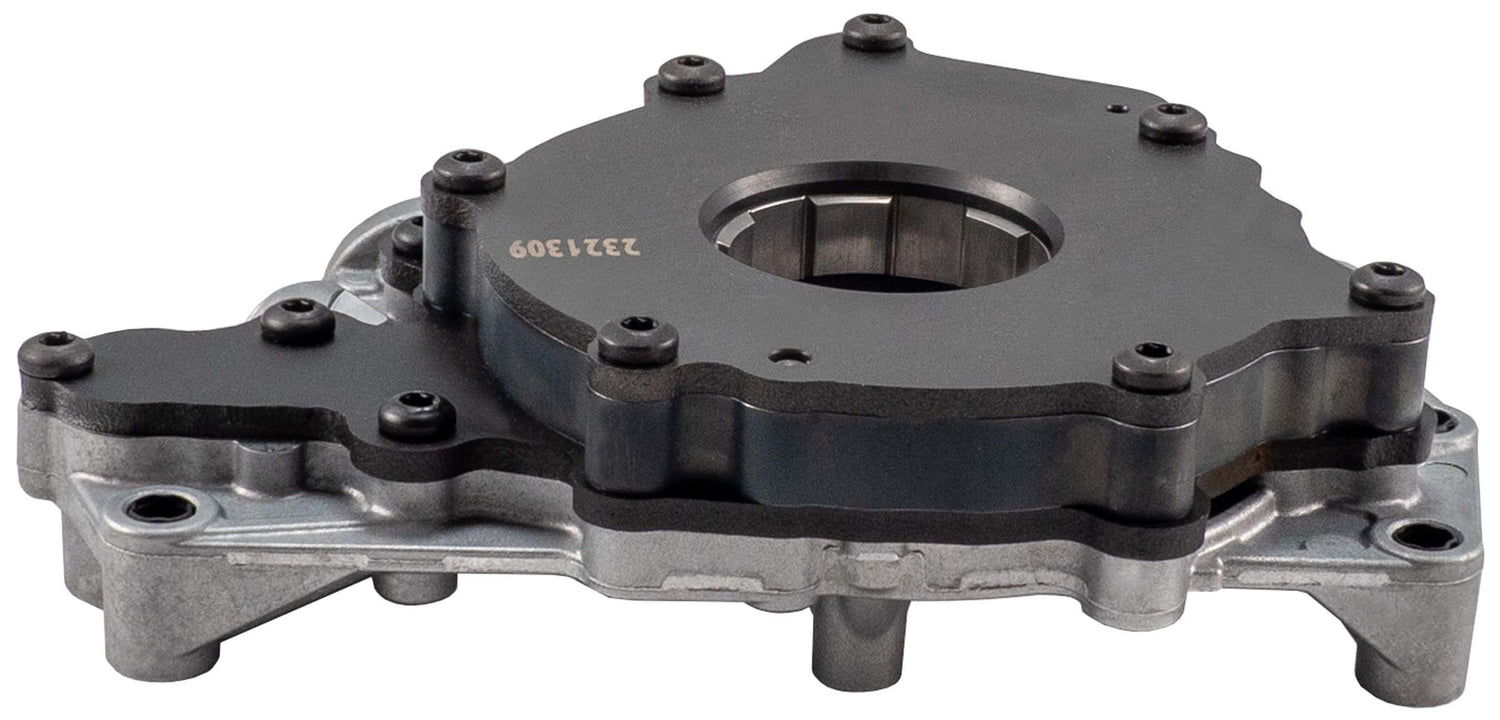

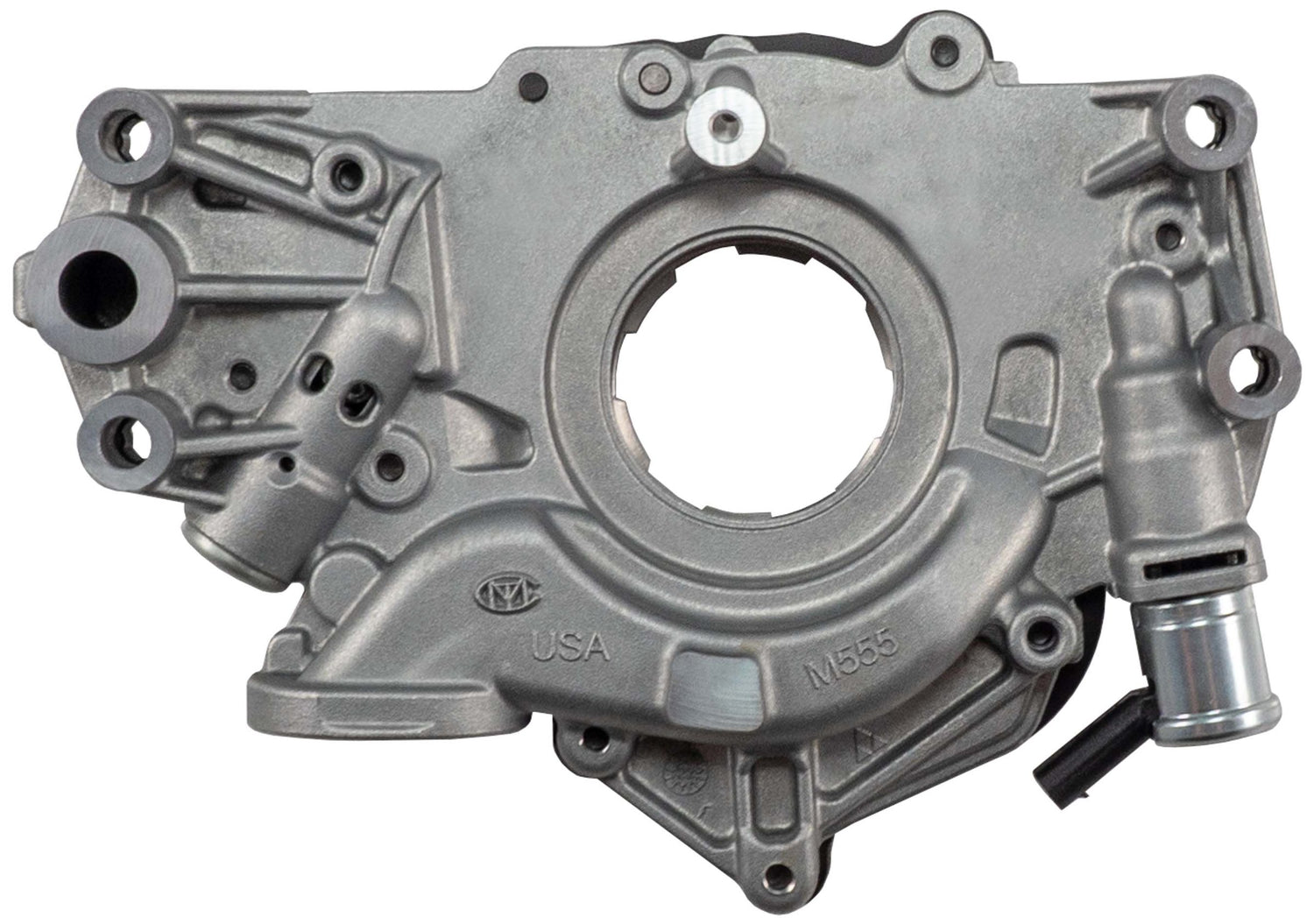

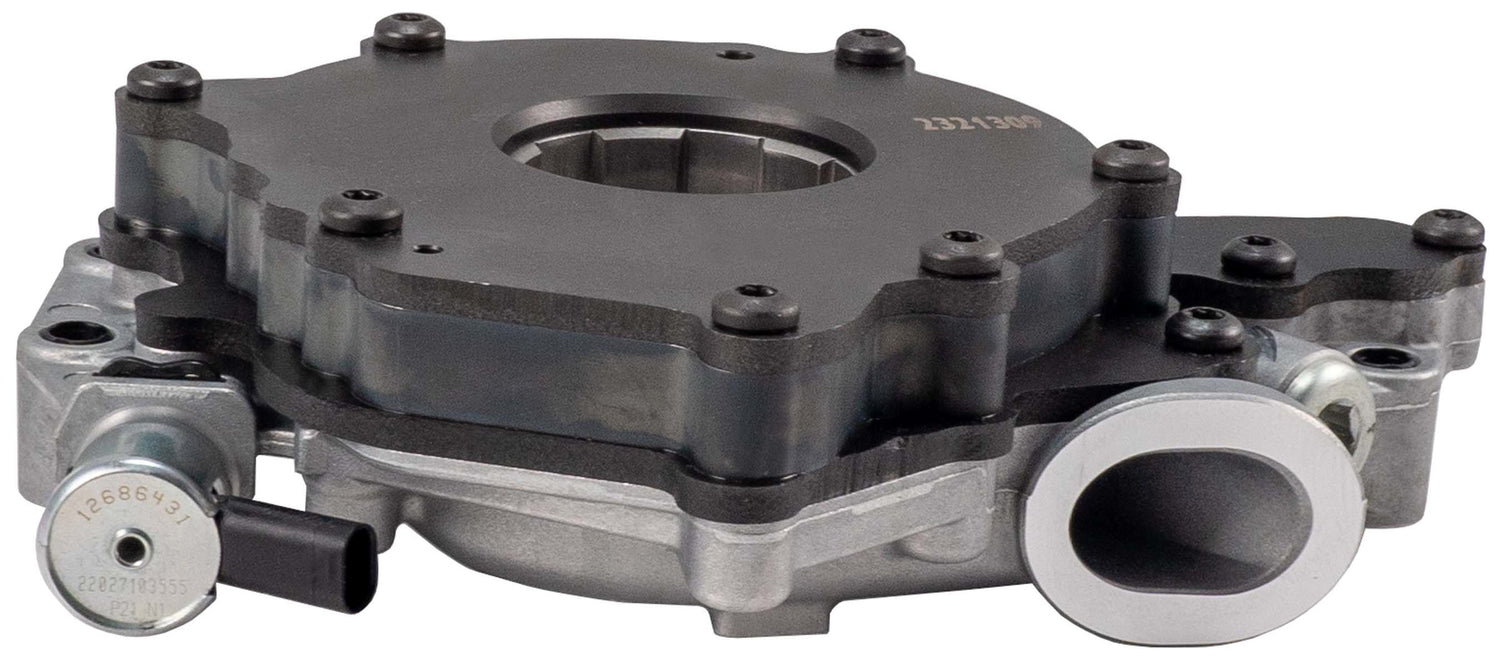

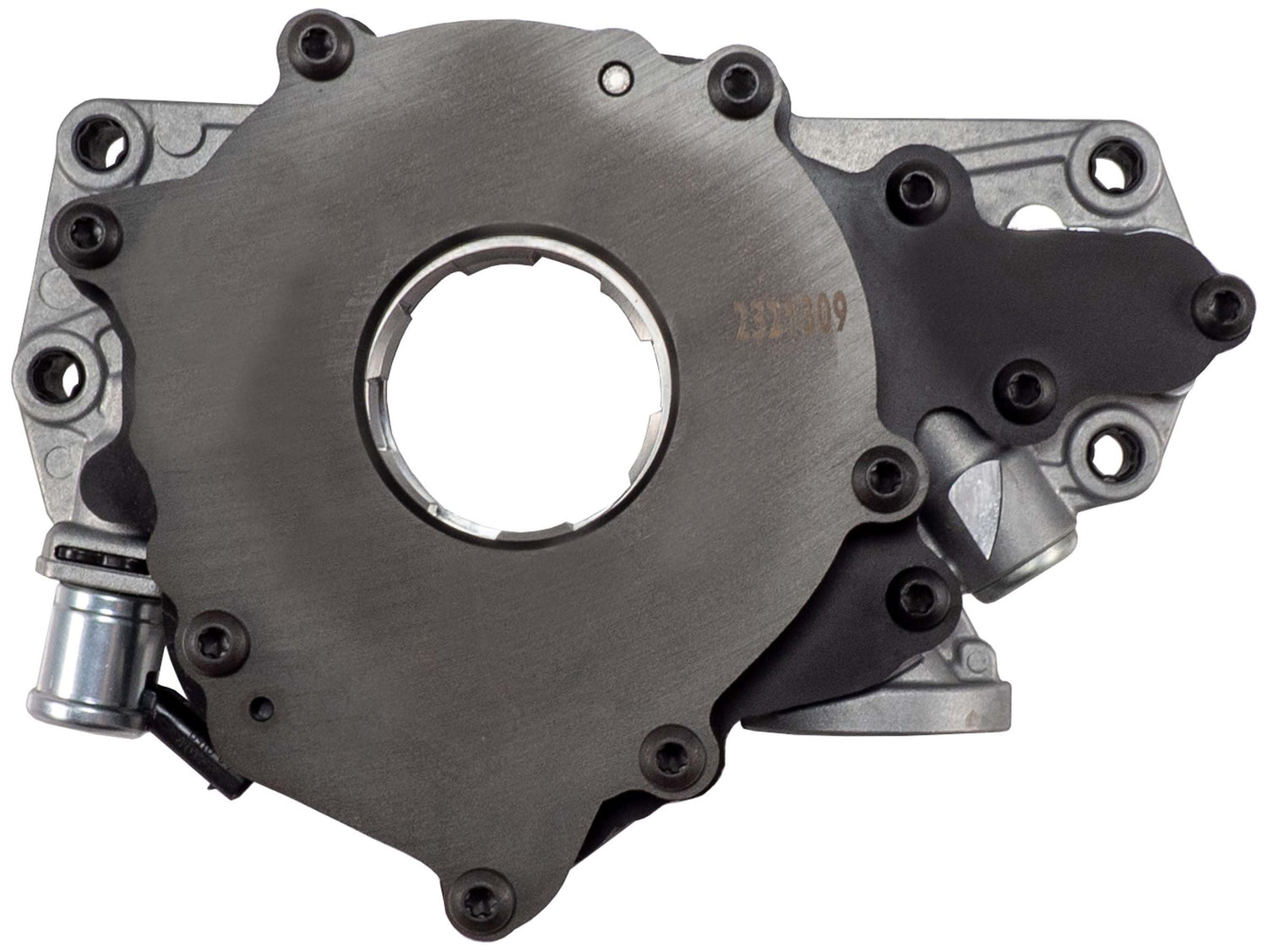

Melling M555 - Stock Replacement Oil Pump

Melling  |  SKU: BCBCM555
$29099 $32009
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Melling M555 - Stock Replacement Oil Pump

M555 Stock Replacement : Standard Volume, Standard Pressure, Aluminum Oil Pump

Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.

  • Precision engineered for optimum fit and function
  • Manufactured from high quality materials for consistent durable wear
  • Designed for long-life and worry-free performance
  • Meets or exceeds original equipment specifications
  • Melling oil pumps are tested for pressure and flow under operating conditions to ensure quality
Adjustable Bypass Pressure: No
Alternate Pressure Springs Included: No
Anti-Cavitation: No
Adjustable Pickup Screen: No
Oil Pump Pressure Type: Standard Pressure
Oil Pump Volume Type: Standard Volume
Pickup Tube Diameter: 1.500
Pickup Tube Diameter: 13.00
Inlet Size (mm): 13.00
Spacer Included: No
Gears Included: Not Applicable
Pickup Screen Included: No
Intermediate Shaft Included: Not Applicable
Inlet Size (in): 1.500
Cover Material: Cast Iron
Bolts Included: No
Bushing Included: No
Cotter Pin Included: No
Finish: Rust Preventative
Governor Spinner Included: No
Guide Included: No
Nylon Bushing Included: No
O-Ring Included: Yes
Pump Cover Included: Yes
Shaft Material: Not Applicable
Timing Cover Included: No
Washers Included: No
Width: 9.250
Width: 235.00
Height: 6.500
Height: 165.00
Grade Type: Standard Replacement
Gasket Or Seal Included: No
Mounting Hole Quantity: 4
Housing Material: Cast Aluminum
Drive Type: Crankshaft
Rotor Material: Steel
Oil Pump Type: Rotary
Solenoid Included: Yes
Mounting Hole Diameter: 0.375
Mounting Hole Diameter: 9.525
