Melling M523 - Stock Replacement Oil Pump

Melling  |  SKU: BCBCM523
$14399 $15839
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

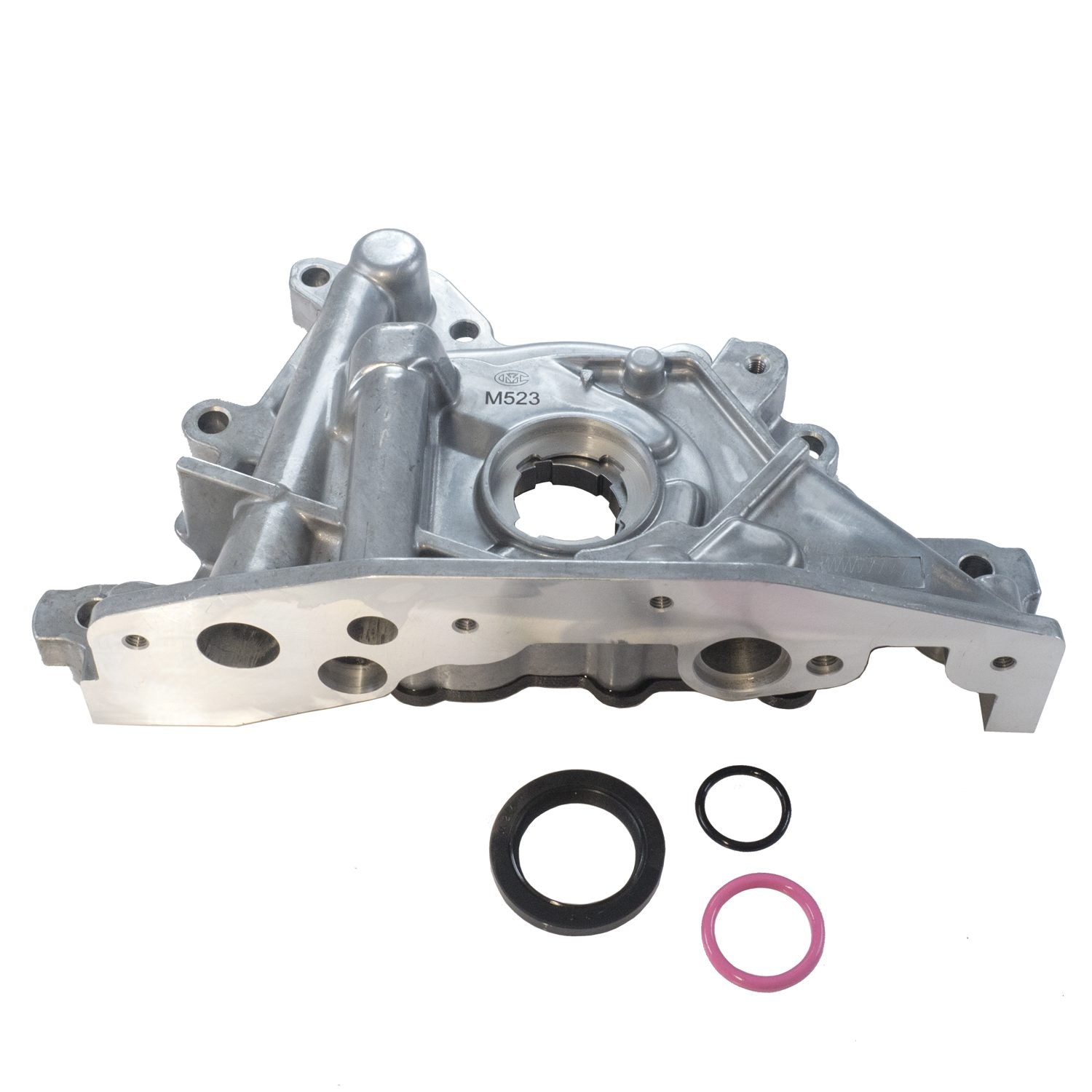

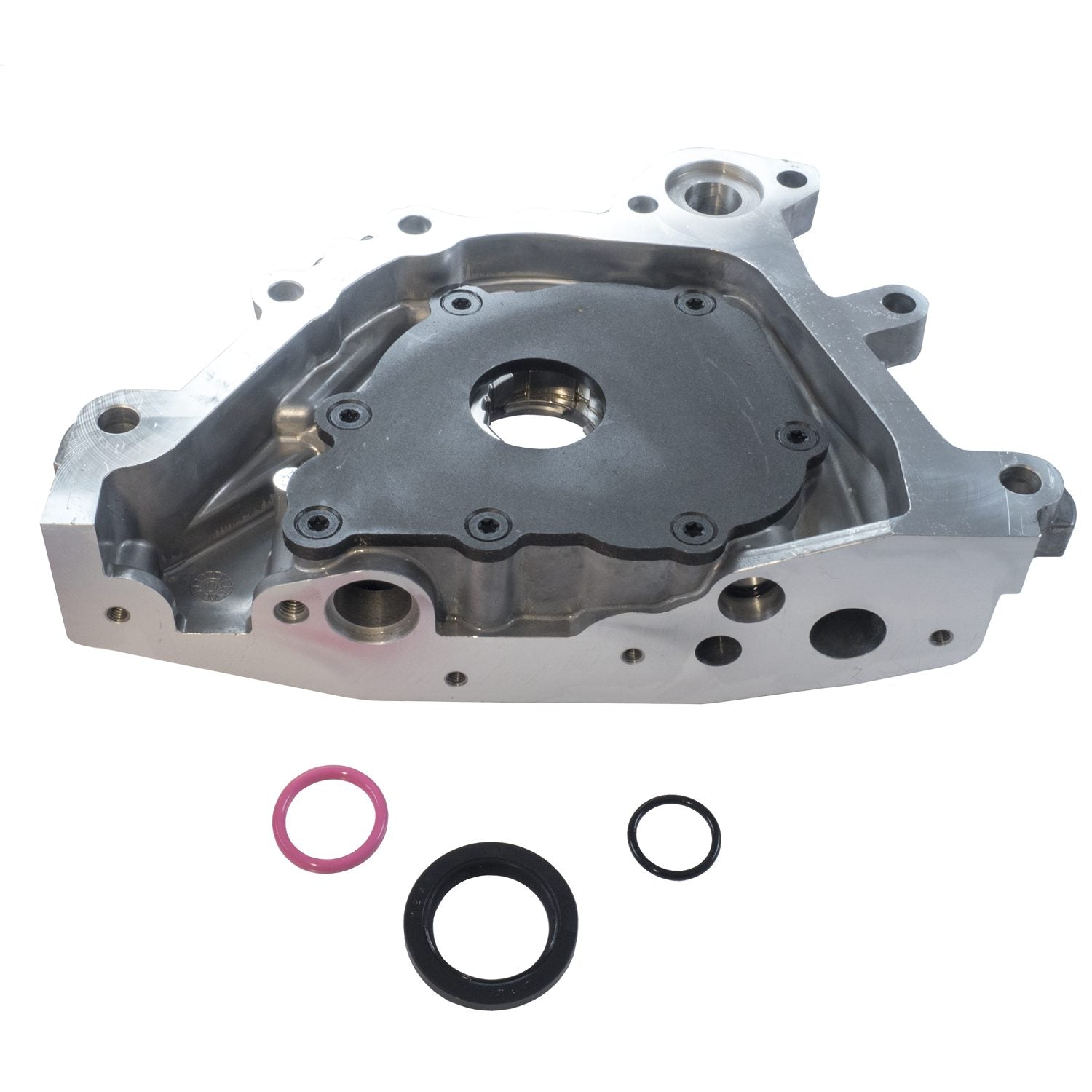

Melling M523 - Stock Replacement Oil Pump

Oil Pump - Wet Sump - Internal - Standard Volume - Mopar 4-Cylinder - Each

M523 Stock Replacement : Standard Volume, Standard Pressure, Cast Aluminum Oil Pump With Gasket

Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.

  • Precision engineered for optimum fit and function
  • Manufactured from high quality materials for consistent durable wear
  • Designed for long-life and worry-free performance
  • Meets or exceeds original equipment specifications
Pickup Screen Included: No
Intermediate Shaft Included: No
Inlet Size (in): 1.000
Inlet Size (mm): 25.00
Cover Material: Aluminum
Bolts Included: No
Bushing Included: No
Cotter Pin Included: No
Governor Spinner Included: No
Guide Included: No
Nylon Bushing Included: No
O-Ring Included: Yes
Pump Cover Included: Yes
Shaft Material: Not Applicable
Timing Cover Included: No
Washers Included: No
Spacer Included: No
Gears Included: Not Applicable
Finish: Rust Preventative
Width: 11.0
Width: 280.0
Height: 6.75
Height: 172.0
Grade Type: Standard Replacement
Gasket Or Seal Included: Yes
Mounting Hole Quantity: 7
Housing Material: Cast Aluminum
Drive Type: Crankshaft
Oil Pump Type: Rotary
Pickup Screen Diameter: 0.81
Pickup Screen Diameter: 21.0
Pickup Tube Diameter: 1.0
Mounting Hole Diameter: 0.315
Mounting Hole Diameter: 8.0
Oil Pump Pressure Type: Standard Pressure
Oil Pump Volume Type: Standard Volume
Rotor Material: Powdered Metal
Adjustable Bypass Pressure: No
Drive Shaft Included: No
Alternate Pressure Springs Included: No
