Melling M365HV - High Volume Replacement Oil Pump

Melling  |  SKU: BCBCM365HV
$17199 $18919
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

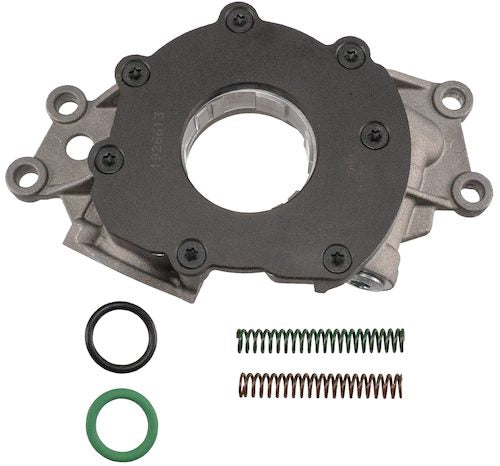

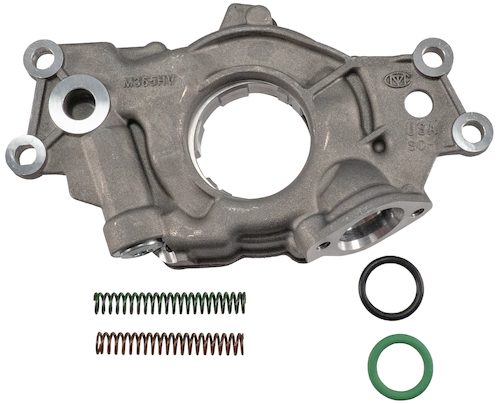

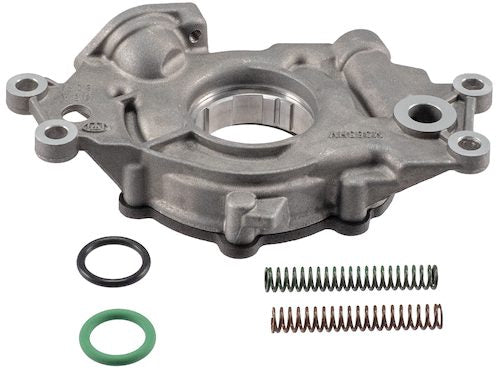

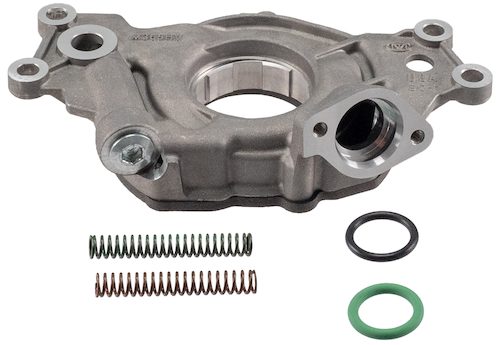

Melling M365HV - High Volume Replacement Oil Pump

M365HV Stock Replacement : High Volume, Standard Pressure, Aluminum Oil Pump With Gasket

Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.

Pickup Screen Included: No
Intermediate Shaft Included: Not Applicable
Inlet Size (in): 0.875
Inlet Size (mm): 22.00
Cover Material: Aluminum
Bolts Included: No
Bushing Included: No
Cotter Pin Included: No
Governor Spinner Included: No
Guide Included: No
Nylon Bushing Included: No
O-Ring Included: Yes
Pump Cover Included: Yes
Shaft Material: Not Applicable
Timing Cover Included: No
Washers Included: No
Spacer Included: No
Gears Included: Not Applicable
Finish: Rust Preventative
Width: 8.25
Width: 210.0
Height: 4.68
Height: 119.0
Gasket Or Seal Included: Yes
Mounting Hole Quantity: 4
Housing Material: Aluminum
Drive Type: Crankshaft
Rotor Material: Stainless Steel
Oil Pump Type: Rotary
Pickup Screen Diameter: 1.090
Pickup Tube Diameter: 28.00
Mounting Hole Diameter: 0.375
Mounting Hole Diameter: 10.0
Anti-Cavitation: No
Oil Pump Pressure Type: Standard Pressure
Oil Pump Volume Type: High Volume
Additional Volume Over Stock Percentage: 20%
Grade Type: Improved Design
Pickup Tube Diameter: 0.875
Pickup Tube Diameter: 22.00
Adjustable Bypass Pressure: No
Alternate Pressure Springs Included: No
Drive Shaft Included: No
