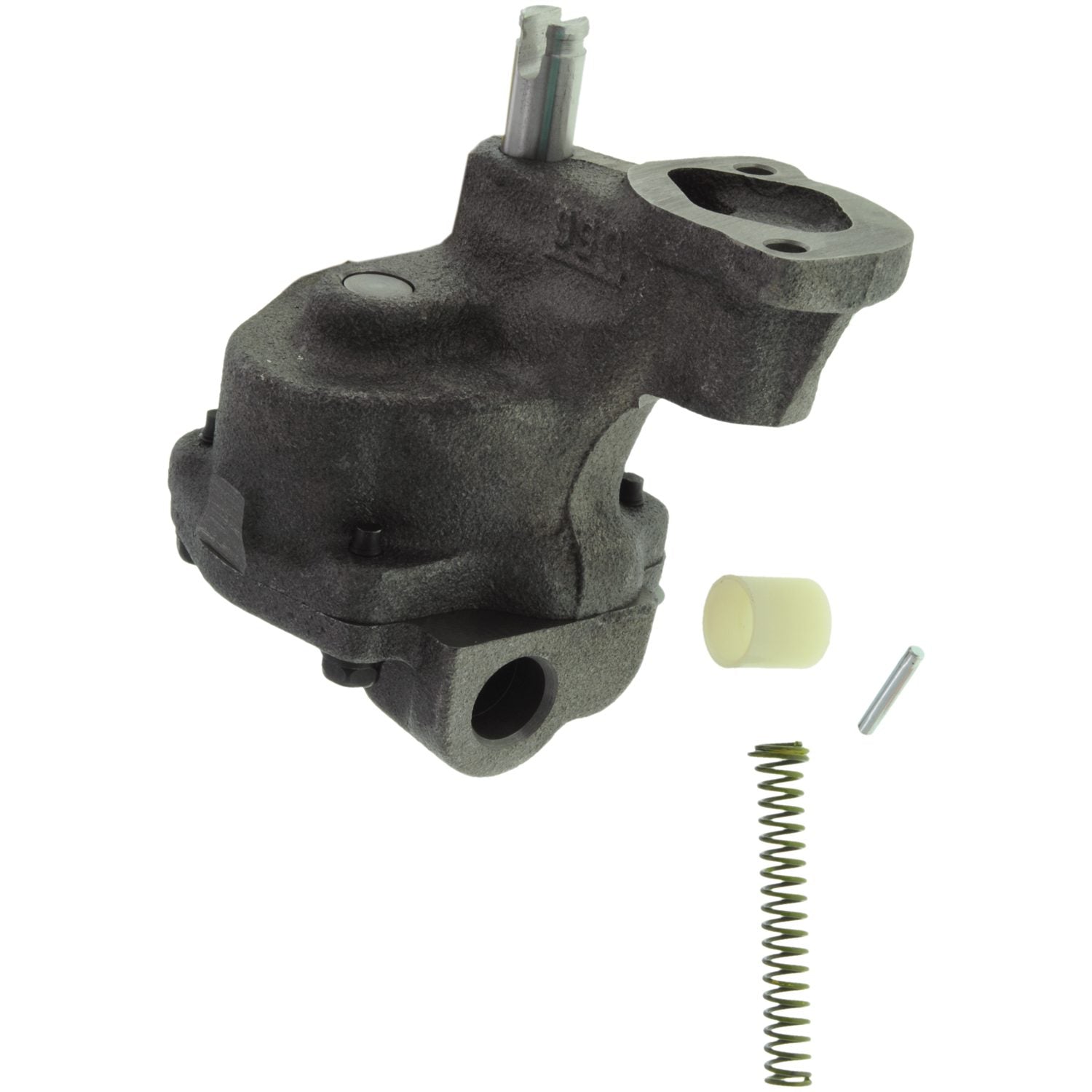

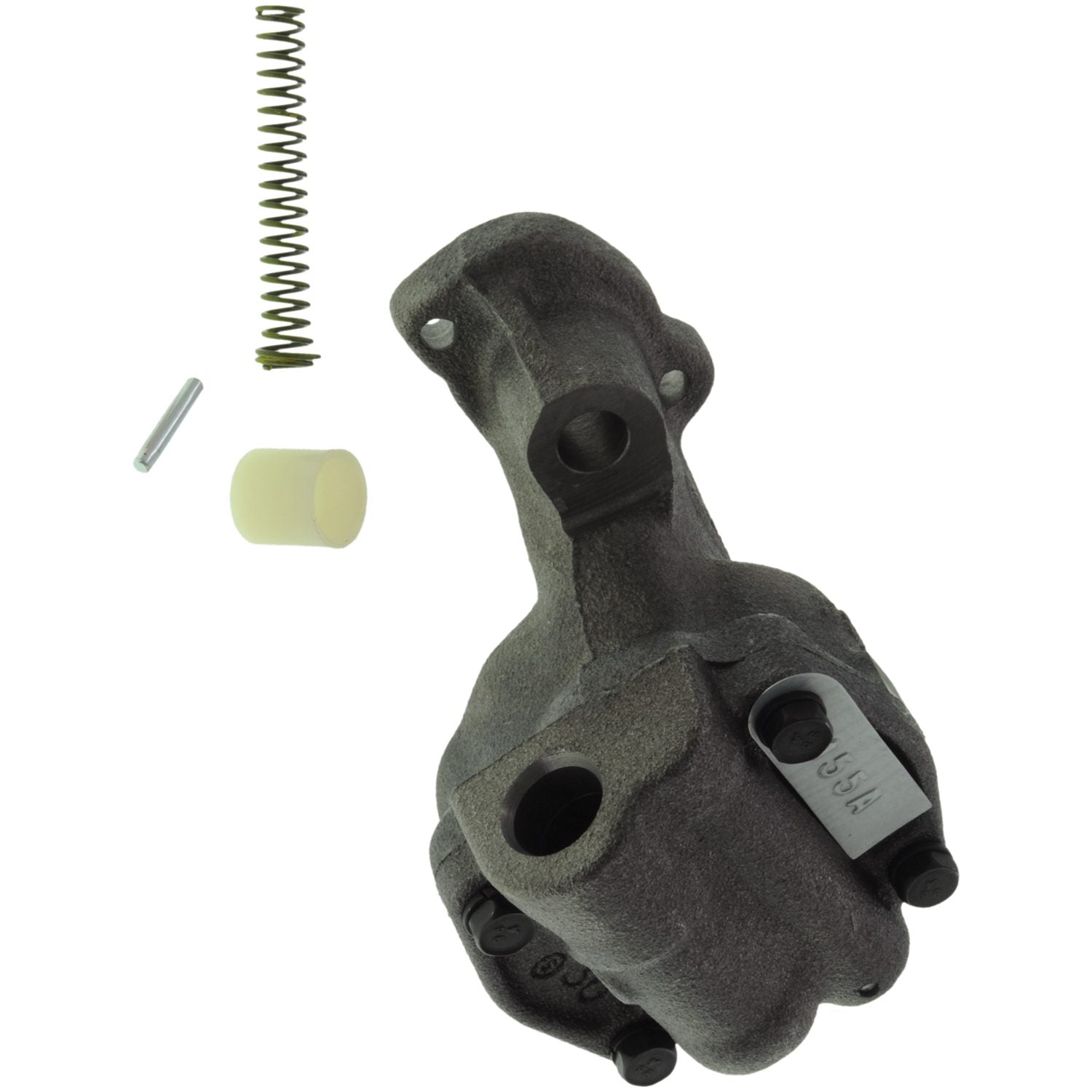

Melling M-55A - Stock Replacement Oil Pump

Melling  |  SKU: BCBCM-55A
$8199 $9019
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Melling M-55A - Stock Replacement Oil Pump

Oil Pump - Wet Sump - Internal - Standard Volume - High Pressure - Small Block Chevy - Each

M-55A Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump

Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.

  • Precision engineered for optimum fit and function
  • Manufactured from high quality materials for consistent durable wear
  • Designed for long-life and worry-free performance
  • Meets or exceeds original equipment specifications
Pickup Screen Included: No
Intermediate Shaft Included: No
Inlet Size (in): 0.500
Inlet Size (mm): 13.00
Gears Included: Yes
Cover Material: Cast Iron
Bolts Included: No
Bushing Included: Yes
Cotter Pin Included: No
Finish: Rust Preventative
Governor Spinner Included: No
Guide Included: Yes
Nylon Bushing Included: Yes
O-Ring Included: No
Pump Cover Included: Yes
Shaft Material: Not Applicable
Timing Cover Included: No
Washers Included: No
Spacer Included: No
Width: 3.24
Width: 82.0
Height: 4.14
Height: 105.0
Grade Type: Standard Replacement
Gasket Or Seal Included: No
Mounting Hole Quantity: 2
Housing Material: Cast Iron
Drive Type: Drive Shaft
Oil Pump Type: Gear
Mounting Hole Diameter: 0.25
Mounting Hole Diameter: 6.0
Alternate Pressure Springs Included: Yes
Gear Type: Spur Gear
Oil Pump Pressure Type: Standard Pressure
Oil Pump Volume Type: Standard Volume
Gear Material: Steel
Pickup Tube Diameter: 0.500
Pickup Tube Diameter: 13.00
Drive Shaft Included: No
Adjustable Bypass Pressure: No
Alternate Pressure Springs Included: No
