Mcleod 651052-00-07 - Mag Force Double Pin Drive Chevy 98-Up LS 0Bal 1-1/8X26 Spl 168

Mcleod  |  SKU: MC-651052-00-07
Sale price $1,35399 Regular price $1,65000

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

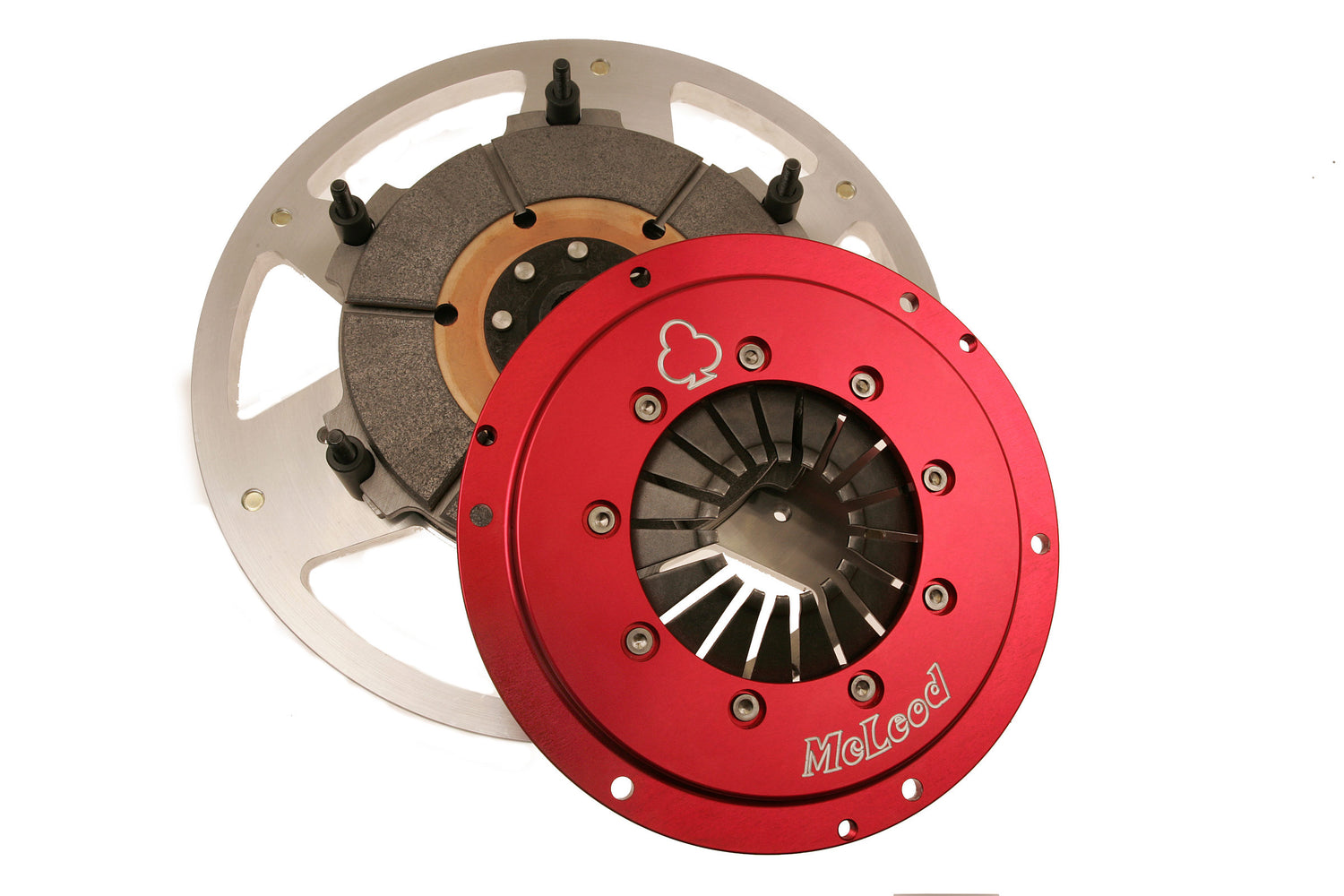

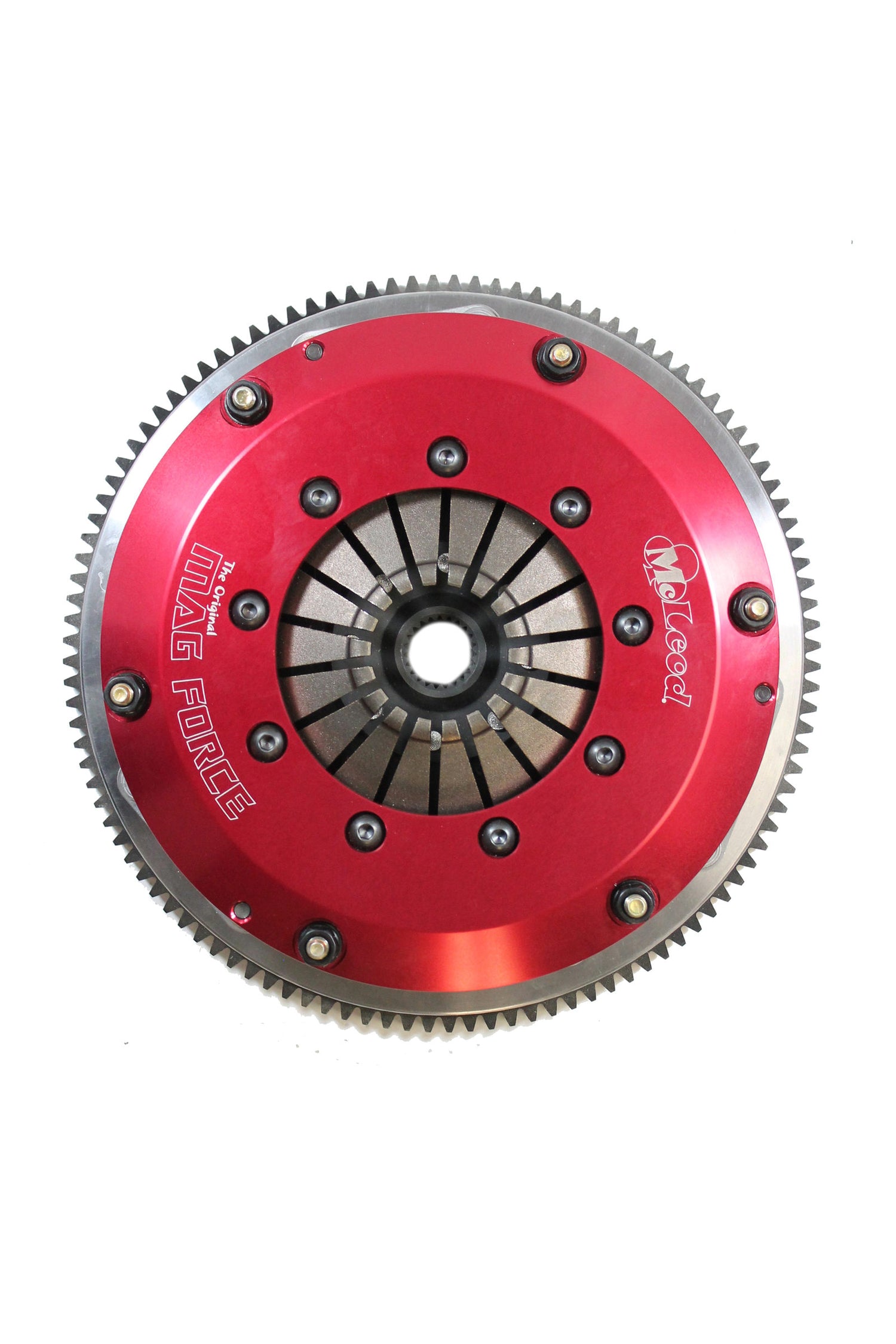

Mcleod 651052-00-07 - Mag Force Double Pin Drive Chevy 98-Up LS 0Bal 1-1/8X26 Spl 168

Mag Force:Double Disc: Pin Drive:Chevy:1997-13 LS-X 6 Blt:0Bal:168T:1-1/8x26

Mag Force: 2 Disc: Pin Drive: GM 1997-13 LS-X 6 Bolt Crank: 1-1/8 x 26: 168T

Mag Force - These clutches are the perfect choice for racers looking for a lightweight, high torque capacity unit. They are designed to be used for oval track, road racing and dry lakes applications. These units are offered in single disc (500ft tq) double disc (900 ft tq) and triple disc (1500 ft tq) configurations to meet the harshest needs in the industry. These units rely on a pin drive actuation system where the floater plate slides on 6 evenly spaced pins for quick release in a racing application. Our Mag Force units also offer bolt on external balance weights for most applications.

  • • Ceramic Discs. • Pin or Strap Drive. • Oval Track, Road Racing and Dry Lakes usage. • Single Disc (500Ft Tq) • Double Disc (900 Ft Tq) • Triple Disc (1500 Ft Tq
Crankshaft to Flywheel Bolt Quantity: 6-bolt
Engine Balance: Internal
Quantity: Sold as a kit.
Make: Chevrolet
Disc Diameter (in.): 8.000
Input Shaft Diameter (in.): 1.125
Input Spline Quantity: 26
Disc Material: Sintered Iron
Disc Style: Full face
Hub Style: Solid
Clutch Disc Quantity: 2
Pressure Plate Style: Diaphragm
Clutch Usage: Performance
Hardware Included: Yes
Alignment Tool Included: Yes
Pilot Bushing Included: No
Throwout Bearing Included: No
Flywheel Included: Yes
Flywheel Material: Billet aluminum
Ring Gear Tooth Quantity: 168-tooth
