Mcleod 6333807HD - 18-23 Ford Mustang RXT Twin Disc Clutch Kit 1 1/8 x 26 Spline 164T 8 Bolt AL Flywheel

Mcleod  |  SKU: MC-6333807HD
Sale price $1,61099 Regular price $1,69500

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

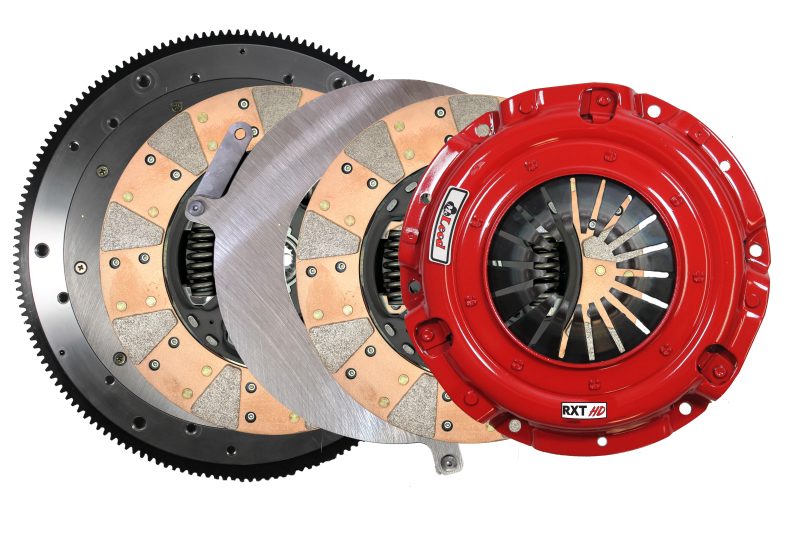

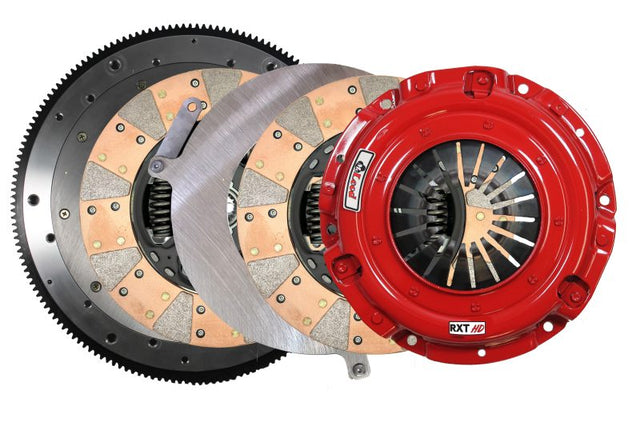

Mcleod 6333807HD - 18-23 Ford Mustang RXT Twin Disc Clutch Kit 1 1/8 x 26 Spline 164T 8 Bolt AL Flywheel

RXT HD 1300HP Twin Disc Clutch: Aluminum Flywheel: Ford Mustang 2018-23 5.0L 8 Bolt: 1-1/8 x 26: 164T: Aftermarket Transmission

McLeod RXT HD – Rated up to 1300 HP, this twin disc clutch is Intended for the high horsepower street/strip fan. This clutch can handle serious horsepower and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a moderate pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ¼ mile passes then drive back home, the RXT HD is what you’ll need! This series of clutches comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a patented approved adapter ring to bolt to your supplied flywheel. Complete unit with dedicated flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.

  • • Metallic Facings for Increased Holding Power. • Higher Clamp Load Pressure Plate. • Excellent Release Qualities. • Bolts to Most Flywheels. • Available with Aluminum or Steel Flywheel.
Hub Style: Solid
Hardware Included: Yes
Pressure Plate Style: Diaphragm
Throwout Bearing Included: No
Pilot Bushing Included: Yes
Clutch Usage: Performance
Horsepower Rating: 1300
Flywheel Included: Yes
Flywheel Material: Billet aluminum
Ring Gear Tooth Quantity: 164-tooth
Crankshaft to Flywheel Bolt Quantity: 8-bolt
Engine Balance: Internal
Quantity: Sold as a kit.
Note: 2018+ GT Calimer Specific Trans Only
Make: Ford
Clutch Disc Quantity: 2
Disc Diameter (in.): 9.688
Input Shaft Diameter (in.): 1.125
Input Spline Quantity: 26

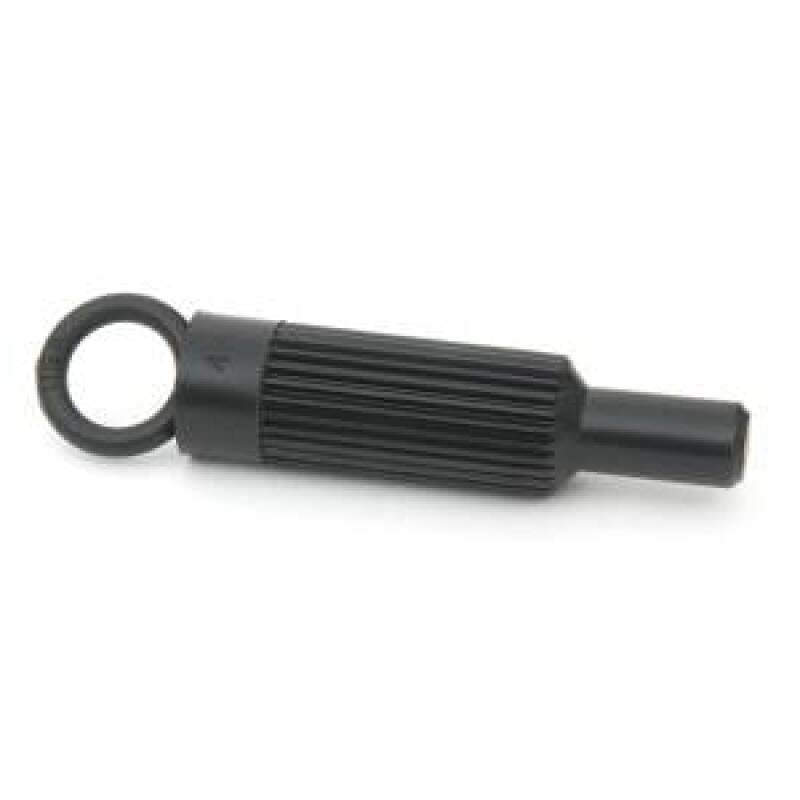

Alignment Tool Included: Yes
Disc Material: Ceramic
Disc Style: Segmented
