Mcleod 563408 - Flywheel Aluminum Ford 4.6/5.0/5.4L Cobra 8 Bolt Crank - 96-15 Gt Muti Drill 164
Mcleod | SKU:
MC-563408
Sale price
$42499
Regular price
$44500
Unit price
/
Unavailable
$20.01 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

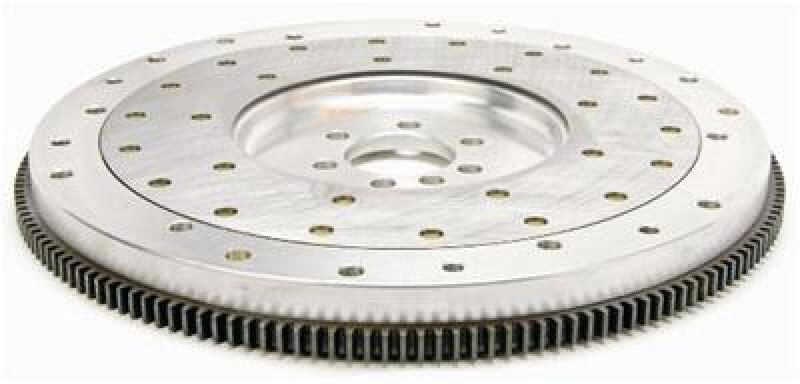

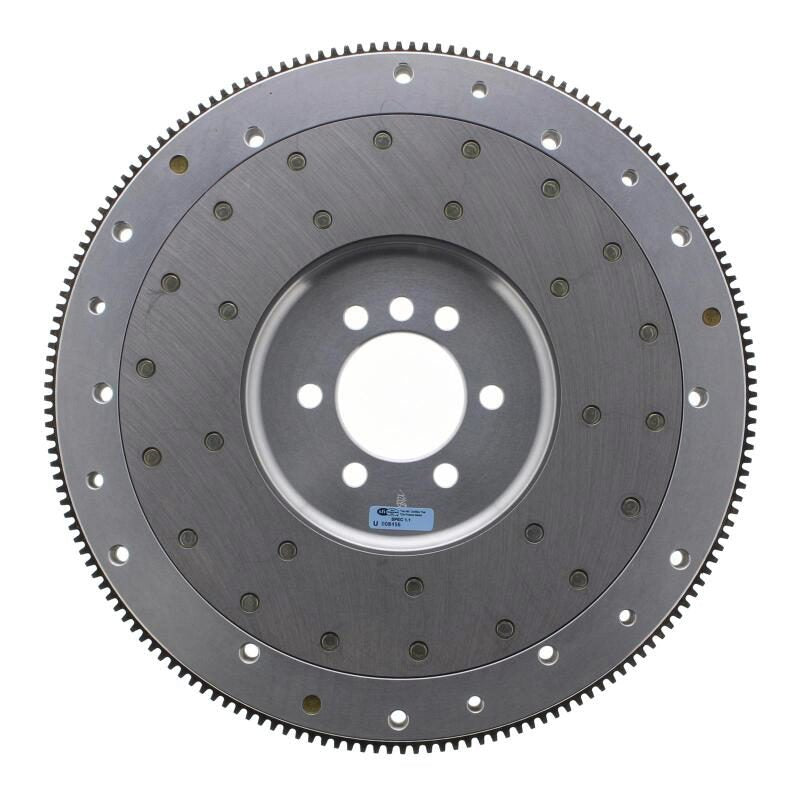

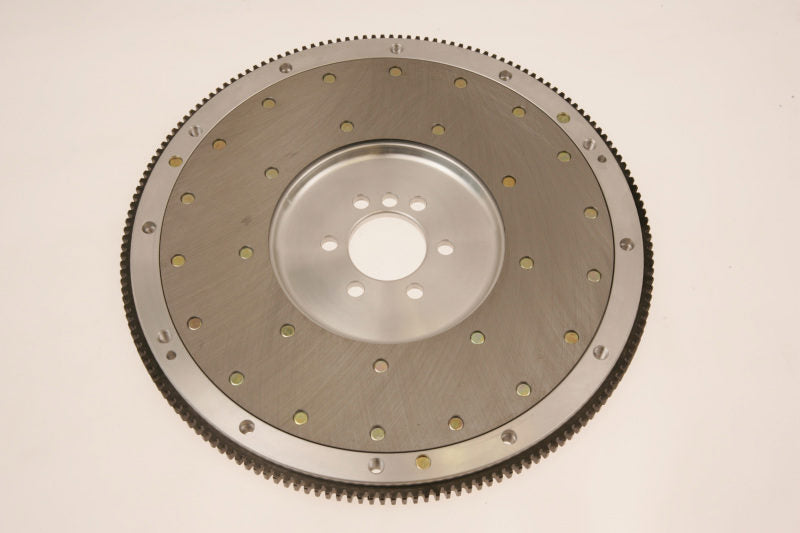

Mcleod 563408 - Flywheel Aluminum Ford 4.6/5.0/5.4L Cobra 8 Bolt Crank - 96-15 Gt Muti Drill 164
Flywheel - 164 Tooth - 15 lbs - Steel - Internal Balance - Aluminum - Ford Modular - Each
ALUMINUM FLYWHEEL FORD 96-16 4.6L/5.0L/5.4L McLeod aluminum flywheel with multiple clutch patterns and replaceable friction surface. Fits 8 bolt crank only.
McLeod Aluminum Flywheels are ideal for numerous applications such as supercharged or turbocharged engines. These flywheels are ideal for higher horsepower engines and combinations that achieve rapid RPM levels. McLeod Aluminum Flywheels are CNC machined from 6061 T6 aluminum and come with a replaceable steel friction plate and 1045 steel hardened ring gear.
- • Billet Aluminum 6060-T6. • 1045 Steel Hardened Ring Gear. • SFI rated.
Make: Ford
Flywheel Material: Billet aluminum
Marine Use: No
Replaceable Friction Surface: Yes
Engine Balance: Internal
Quantity: Sold individually.
Ring Gear Tooth Quantity: 164-tooth
SFI 1.1 Approved: Yes
Crankshaft to Flywheel Bolt Quantity: 8-bolt
Disc Diameter (in.): 10.500/11.000 in.
Engine: 1996-2017 4.6L/5.0L/5.4L, 2011-2017 3.7L 8 bolt crank
Notes: This flywheel does NOT contain 2012-Up GT/Boss 302 9 bolt pressure plate pattern.
Pressure Plate Style: Diaphragm
Weight: 15.000 lbs.
