Mcleod 563406 - Flywheel Aluminum Ford 4.6/5.4L MOD Motor 6Bolt Crk Muli-Drilled 164
Mcleod | SKU:
MC-563406
Sale price
$40399
Regular price
$47400
Unit price
/
Unavailable
$70.01 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description

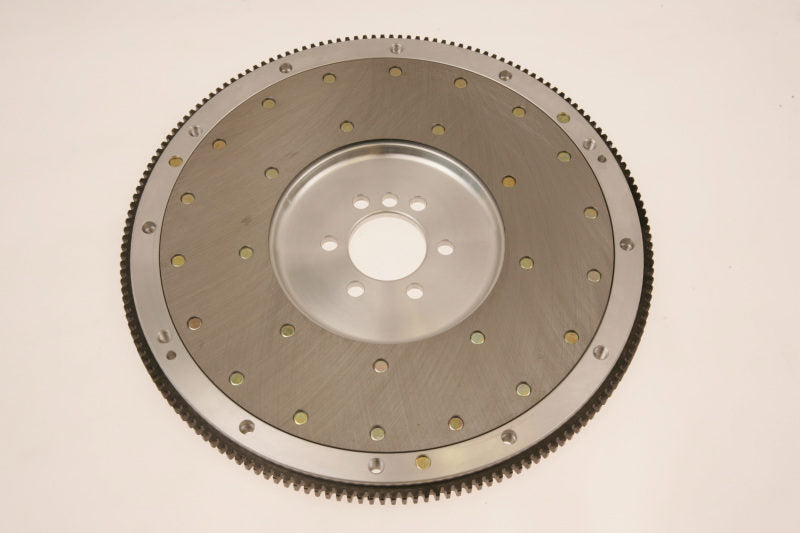

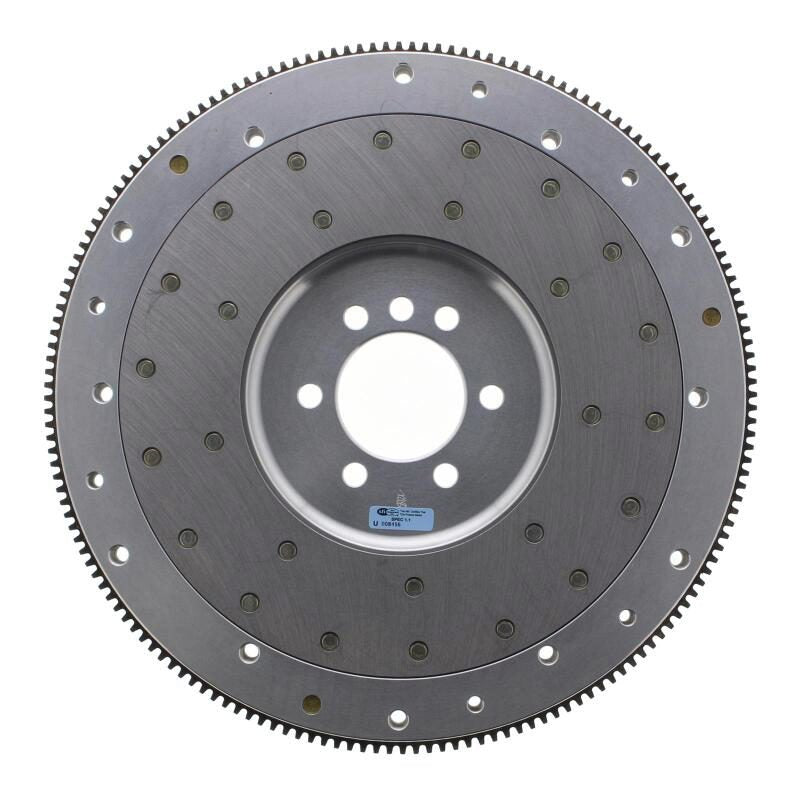

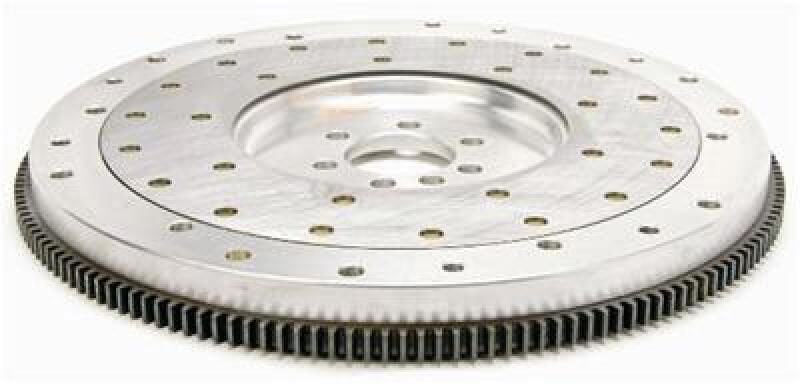

Mcleod 563406 - Flywheel Aluminum Ford 4.6/5.4L MOD Motor 6Bolt Crk Muli-Drilled 164
Flywheel - 164 Tooth - 15 lb - SFI 1.1 - Aluminum - Internal Balance - Ford Modular - Each
ALUMINUM FLYWHEEL FORD 96-04 4.6L McLeod aluminum flywheel with multiple clutch patterns and replaceable friction surface. Fits 6 bolt crank only.
McLeod Aluminum Flywheels are ideal for numerous applications such as supercharged or turbocharged engines. These flywheels are ideal for higher horsepower engines and combinations that achieve rapid RPM levels. McLeod Aluminum Flywheels are CNC machined from 6061 T6 aluminum and come with a replaceable steel friction plate and 1045 steel hardened ring gear.
- • Billet Aluminum 6060-T6. • 1045 Steel Hardened Ring Gear. • SFI rated.
Ring Gear Tooth Quantity: 164-tooth
SFI 1.1 Approved: Yes
Crankshaft to Flywheel Bolt Quantity: 6-bolt
Disc Diameter (in.): 10.500/11.000 in.
Engine: 1991-2010 4.6L 6 Bolt Crank
Notes: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
Pressure Plate Style: Diaphragm
Weight: 15.000 lbs.
Make: Ford
Flywheel Material: Billet aluminum
Marine Use: No
Replaceable Friction Surface: Yes
Engine Balance: Internal
Quantity: Sold individually.
