Mcleod 563220 - Flywheel Aluminum Ford 429/460 Eng Up To 1978 12in Street Insert 176

Mcleod  |  SKU: MC-563220
$56599 $70200

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

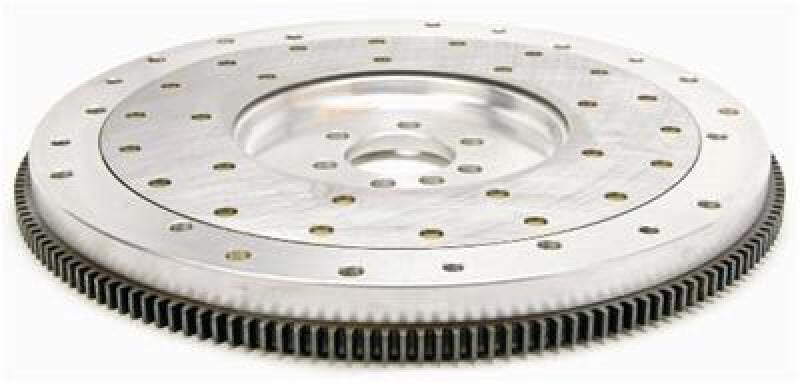

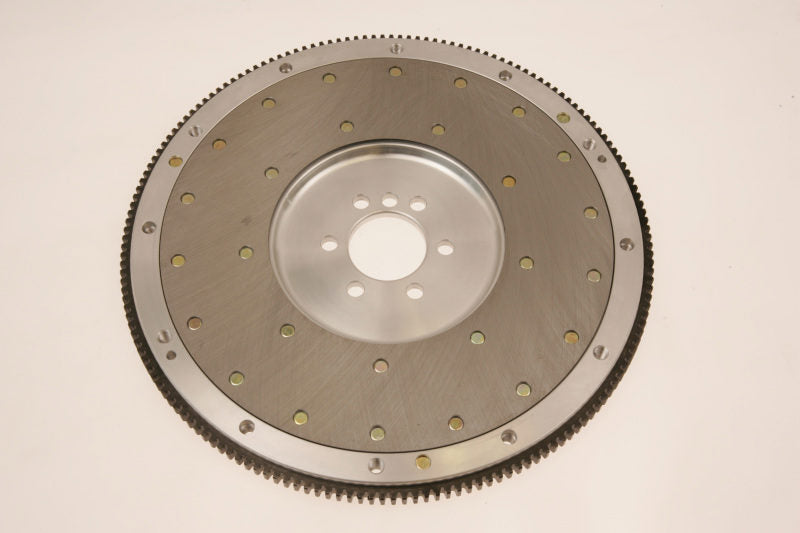

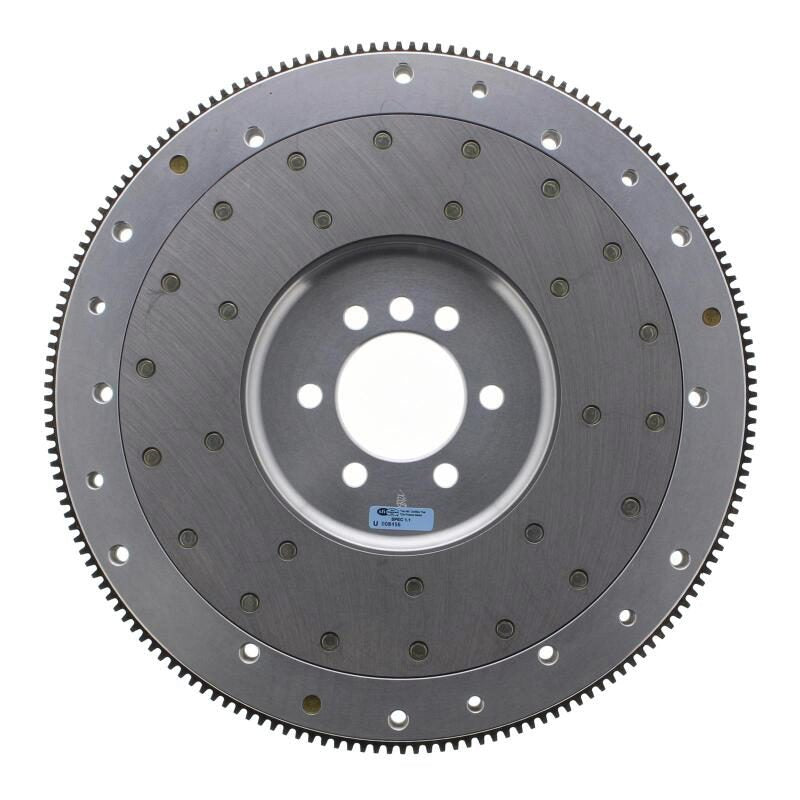

Mcleod 563220 - Flywheel Aluminum Ford 429/460 Eng Up To 1978 12in Street Insert 176

Flywheel Aluminum:1968-98 BBF 429-460 385 Series:0Bal:15Lbs:176T

ALUMINUM FLYWHEEL FORD 429/460 ENGINE UP TO 1978 12" STEEL INSERT 176

McLeod Aluminum Flywheels are ideal for numerous applications such as supercharged or turbocharged engines. These flywheels are ideal for higher horsepower engines and combinations that achieve rapid RPM levels. McLeod Aluminum Flywheels are CNC machined from 6061 T6 aluminum and come with a replaceable steel friction plate and 1045 steel hardened ring gear.

  • • Billet Aluminum 6060-T6. • 1045 Steel Hardened Ring Gear. • SFI rated.
Make: Ford
Flywheel Material: Billet aluminum
Marine Use: No
Replaceable Friction Surface: Yes
Engine Balance: Internal/External
Quantity: Sold individually.
Ring Gear Tooth Quantity: 176-tooth
SFI 1.1 Approved: Yes
Counter Weight Kit Included: Yes
Crankshaft to Flywheel Bolt Quantity: 6-bolt
Disc Diameter (in.): 11.000/11.500/12.000 in.
Notes: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
Pressure Plate Style: Borg & Beck/Diaphragm/Long
Weight: 15.000 lbs.
