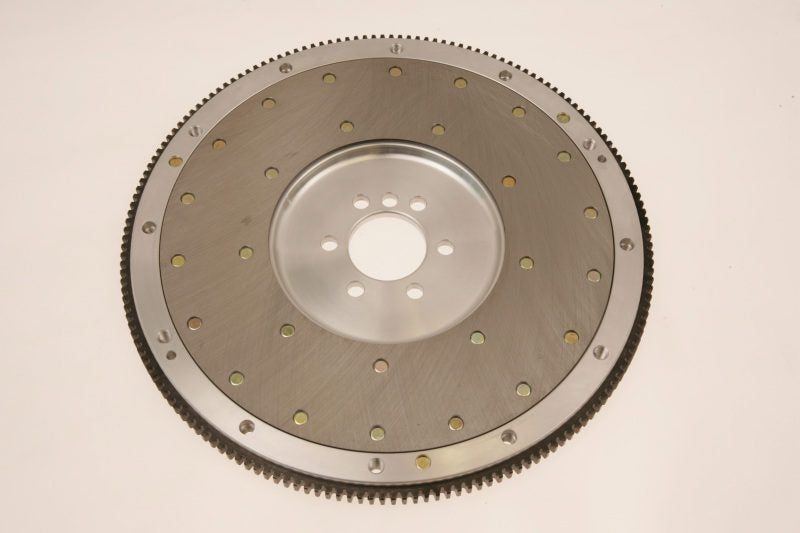

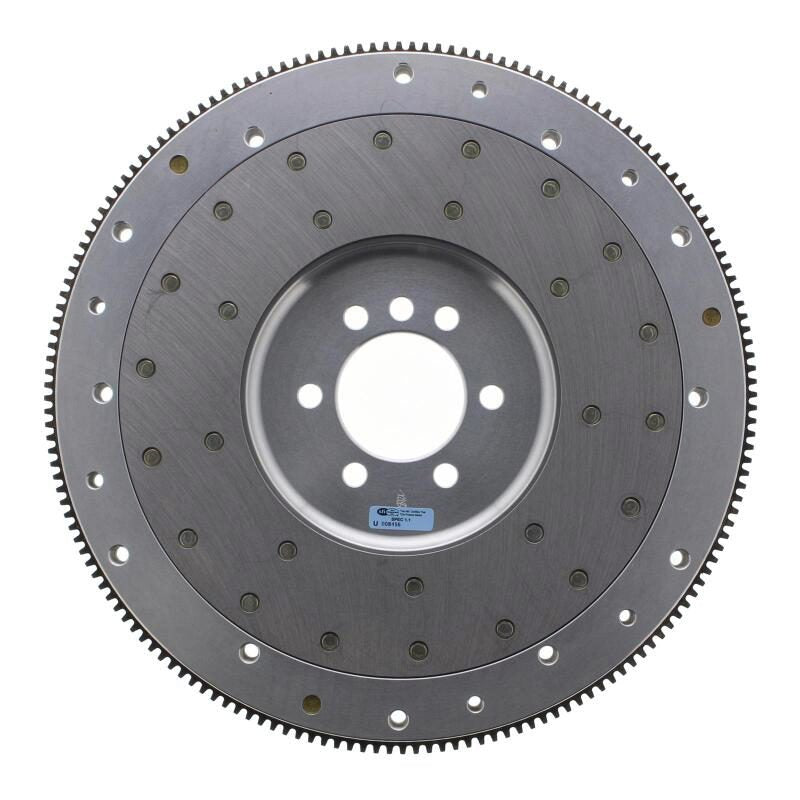

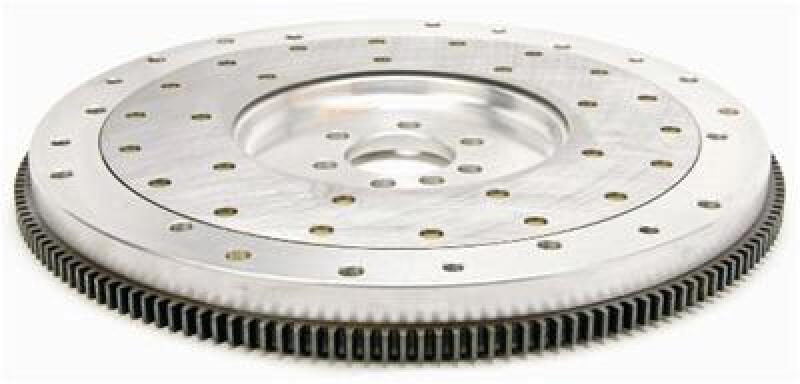

Mcleod 560360 - Flywheel Aluminum 1986-92 Chevy 1Pc Seal Crk 11inStreet Insert 153

Mcleod  |  SKU: MC-560360
$47099 $63000

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

Mcleod 560360 - Flywheel Aluminum 1986-92 Chevy 1Pc Seal Crk 11inStreet Insert 153

Flywheel: Aluminum: Chevrolet: 1986-99 SBC: 1pc Rear Seal: 153T: 15 lbs.

McLeod Aluminum Flywheels are ideal for numerous applications such as supercharged or turbocharged engines. These flywheels are ideal for higher horsepower engines and combinations that achieve rapid RPM levels. McLeod Aluminum Flywheels are CNC machined from 6061 T6 aluminum and come with a replaceable steel friction plate and 1045 steel hardened ring gear.

  • • Billet Aluminum 6060-T6. • 1045 Steel Hardened Ring Gear. • SFI rated.
SFI 1.1 Approved: Yes
Counter Weight Kit if Required: 560222 (sold separately)
Crankshaft to Flywheel Bolt Quantity: 6-bolt
Disc Diameter (in.): 10.500
Engine: 1986-1999 SBC 1pc Seal (Small Register)
Notes: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
Pressure Plate Style: Borg & Beck/Diaphragm
Rear Main Seal Style: 1-piece
Weight: 15.000 lbs.
Make: Chevrolet
Flywheel Material: Billet aluminum
Marine Use: No
Replaceable Friction Surface: Yes
Engine Balance: Internal/External
Quantity: Sold individually.
Ring Gear Tooth Quantity: 153-tooth
