Mcleod 560130 - Flywheel Aluminum Chevy 1955-85 SB & All BB Motors 168

Mcleod  |  SKU: MC-560130
$49500 $61875
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

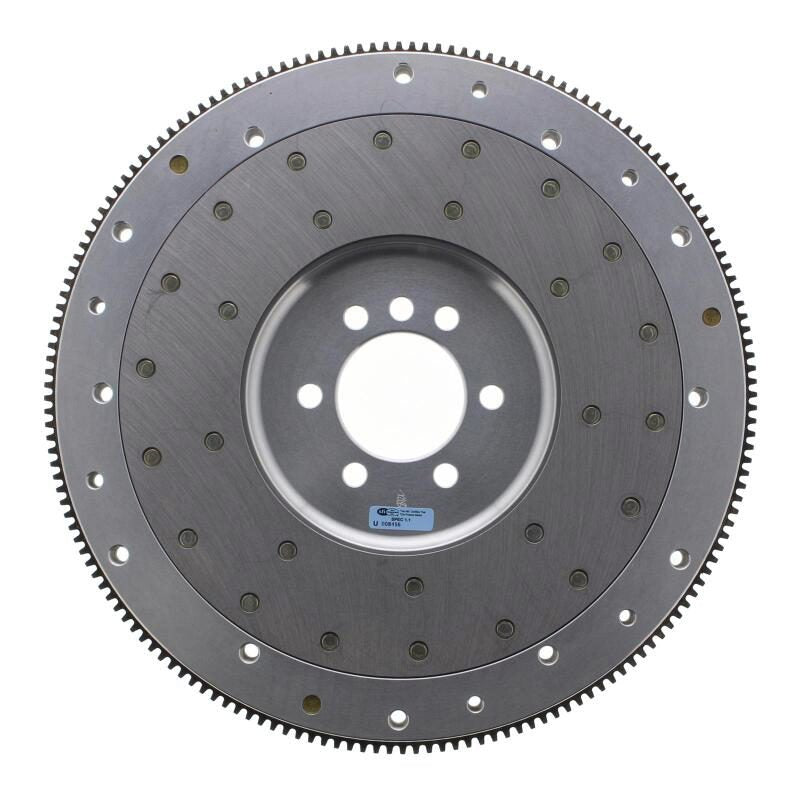

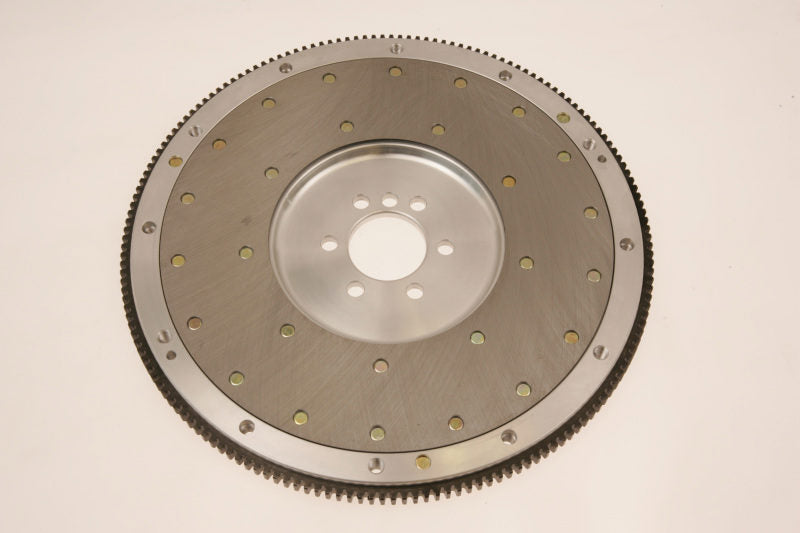

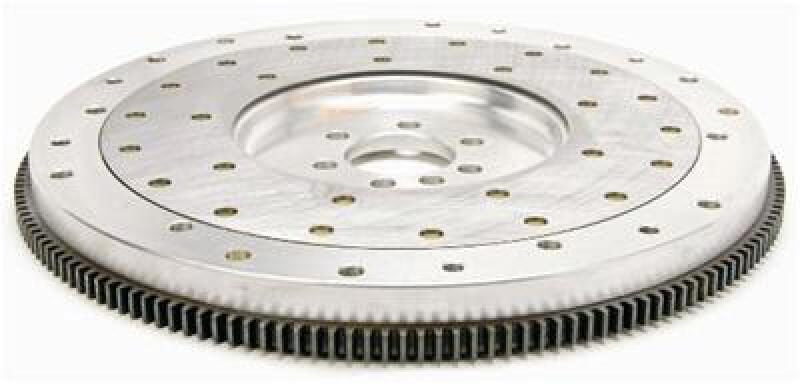

Mcleod 560130 - Flywheel Aluminum Chevy 1955-85 SB & All BB Motors 168

Flywheel - 1-Piece - 168 Tooth - External / Internal Balance - SFI 1.1 - 2-Piece Seal - Chevy V8 - Each

Flywheel: Aluminum: Chevrolet: 1955-85 SBC: 1970-90 BBC: 2pc Rear Main: Internal Balance: 168T: 15 lbs.

McLeod Aluminum Flywheels are ideal for numerous applications such as supercharged or turbocharged engines. These flywheels are ideal for higher horsepower engines and combinations that achieve rapid RPM levels. McLeod Aluminum Flywheels are CNC machined from 6061 T6 aluminum and come with a replaceable steel friction plate and 1045 steel hardened ring gear.

  • • Billet Aluminum 6060-T6. • 1045 Steel Hardened Ring Gear. • SFI rated.
Make: Chevrolet
Flywheel Material: Billet aluminum
Marine Use: No
Replaceable Friction Surface: Yes
Engine Balance: Internal
Quantity: Sold individually.
Ring Gear Tooth Quantity: 168-tooth
SFI 1.1 Approved: Yes
Pressure Plate Style: Borg & Beck/Diaphragm
Rear Main Seal Style: 2-piece
Counter Weight Kit if Required: 560222 (sold separately)
Notes: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
Crankshaft to Flywheel Bolt Quantity: 6-bolt
Engine 3: 1991-Up BBC 1pc Seal 454, 502, 572 (Large Register)
Engine 2: 1991-Up BBC 1pc Seal 454, 502, 572 (Large Register)
Engine 1: 1955-85 SBC 2pc Seal (Large Register)
Disc Diameter (in.): 10.500/11.000/12.000 in.
Weight: 15.000 lbs.
