Mcleod 4968-00-03 - Soft Lok Hcf Ford Sm Blk 4.6L 8 Blt Crk 10.5in X 1-1/16 X 10 164

Mcleod  |  SKU: MC-4968-00-03
$1,75799 $2,22000


AVAILABILITY: This Item Is Out Of Stock.


Description

Mcleod 4968-00-03 - Soft Lok Hcf Ford Sm Blk 4.6L 8 Blt Crk 10.5in X 1-1/16 X 10 164

Soft Lok Alm Ford 4.6/5.0/5.4L 8 Blt: 10.5" X 1-1/16 X 10HCF 8 Bolt Crk 0Bal164T

Soft Lok Alm Ford 4.6/5.0/5.4L 8 Blt: 10.5" X 1-1/16 X 10 Spl HCF 8 Bolt Crk 0Bal 164T

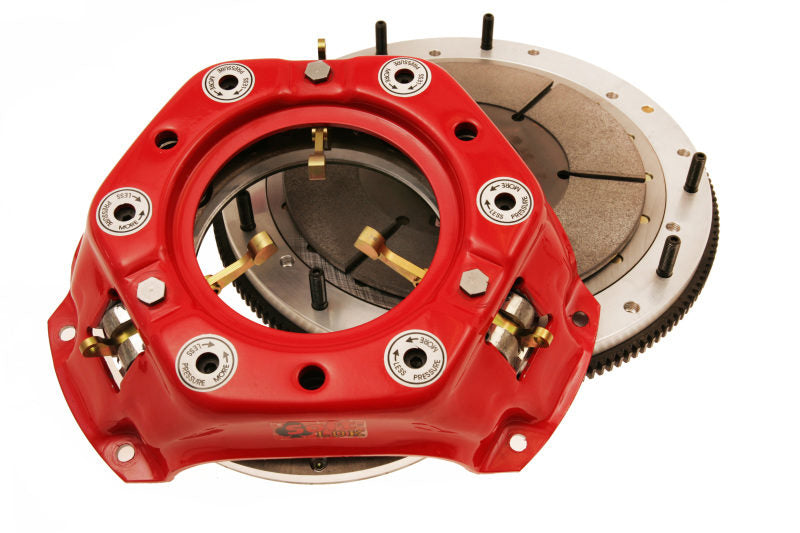

Soft Lok - The McLeod Soft Lok assembly is the most widely used McLeod clutch assembly for drag racers, and is not recommended for street use. This unit is an NHRA and IHRA record holder. Low static pressure for light pedal effort and soft clutch engagement. Leave the starting line harder with less tire spin. Enough holding power for the entire run. Adjustable spring pressure and counter weights. Kit includes adjustable long style pressure plate, sintered iron 5135 compound disc and billet aluminum flywheel. SFI Rated and made in the USA!

  • • Low Static Pressure. • Soft Clutch Engagement. • Leave Line Harder with Less Tire Spin. • Adjustable Spring Pressure. • Available with Counterweights.

Make: Ford
Disc Diameter (in.): 10.500
Input Shaft Diameter (in.): 1.063
Input Spline Quantity: 10
Disc Material: Sintered Iron
Disc Style: Full face
Hub Style: Solid
Clutch Disc Quantity: 1
Pressure Plate Style: Long
Counterweight Assist: Yes
Alignment Tool Included: Yes
Hardware Included: Yes
Clutch Usage: Performance
Pilot Bushing Included: No
Throwout Bearing Included: No
Flywheel Included: Yes
Flywheel Material: Billet aluminum
Ring Gear Tooth Quantity: 164-tooth
Engine Balance: Internal
Crankshaft to Flywheel Bolt Quantity: 8-bolt
Quantity: Sold as a kit.
