Mcleod 4917-00-05 - Soft Lok Hcf Chevy 1986-92 350 1Pc Seal 0Bal 10inX1-3/16X18 168

Mcleod  |  SKU: MC-4917-00-05
$1,87699 $2,22000

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

Mcleod 4917-00-05 - Soft Lok Hcf Chevy 1986-92 350 1Pc Seal 0Bal 10inX1-3/16X18 168

Soft Lok: Chevrolet 1986-92 350 1Pc Seal: 10 x 1-3/16 x 18 Spline: 168T

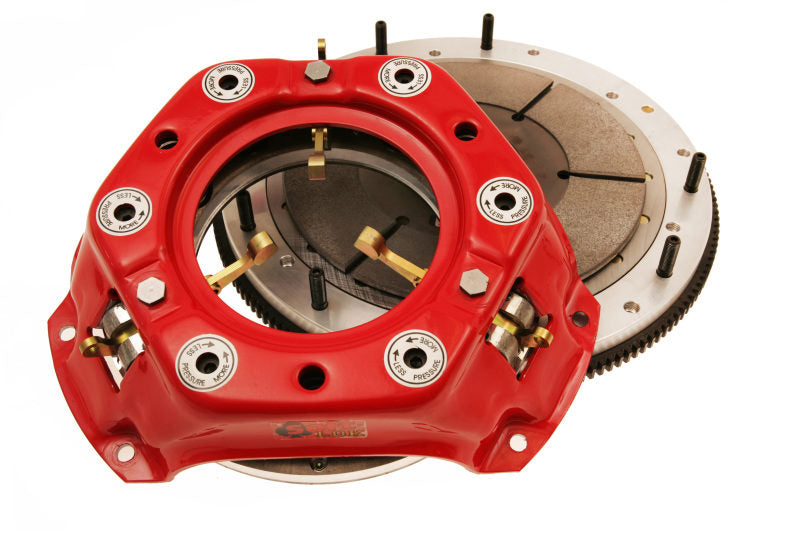

Soft Lok - The McLeod Soft Lok assembly is the most widely used McLeod clutch assembly for drag racers, and is not recommended for street use. This unit is an NHRA and IHRA record holder. Low static pressure for light pedal effort and soft clutch engagement. Leave the starting line harder with less tire spin. Enough holding power for the entire run. Adjustable spring pressure and counter weights. Kit includes adjustable long style pressure plate, sintered iron 5135 compound disc and billet aluminum flywheel. SFI Rated and made in the USA!

  • • Low Static Pressure. • Soft Clutch Engagement. • Leave Line Harder with Less Tire Spin. • Adjustable Spring Pressure. • Available with Counterweights.
Quantity: Sold as a kit.
Rear Main Seal Style: 1-piece
Counter Weight Kit if Required: 560222 (sold separately)
Make: Chevrolet
Disc Diameter (in.): 10.000
Input Shaft Diameter (in.): 1.188
Input Spline Quantity: 18
Disc Material: Sintered Iron
Disc Style: Full face
Hub Style: Solid
Clutch Disc Quantity: 1
Pressure Plate Style: Long
Counterweight Assist: Yes
Alignment Tool Included: Yes
Hardware Included: Yes
Clutch Usage: Performance
Pilot Bushing Included: No
Throwout Bearing Included: No
Flywheel Included: Yes
Flywheel Material: Billet aluminum
Ring Gear Tooth Quantity: 168-tooth
Engine Balance: Internal
Crankshaft to Flywheel Bolt Quantity: 6-bolt
