Mcleod 460132 - Steel Flywheel Chevy 28 1955-85 1955-85 SB & All BB 168 Gear 11inLong Pattern

Mcleod  |  SKU: MC-460132
$47099 $59400

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

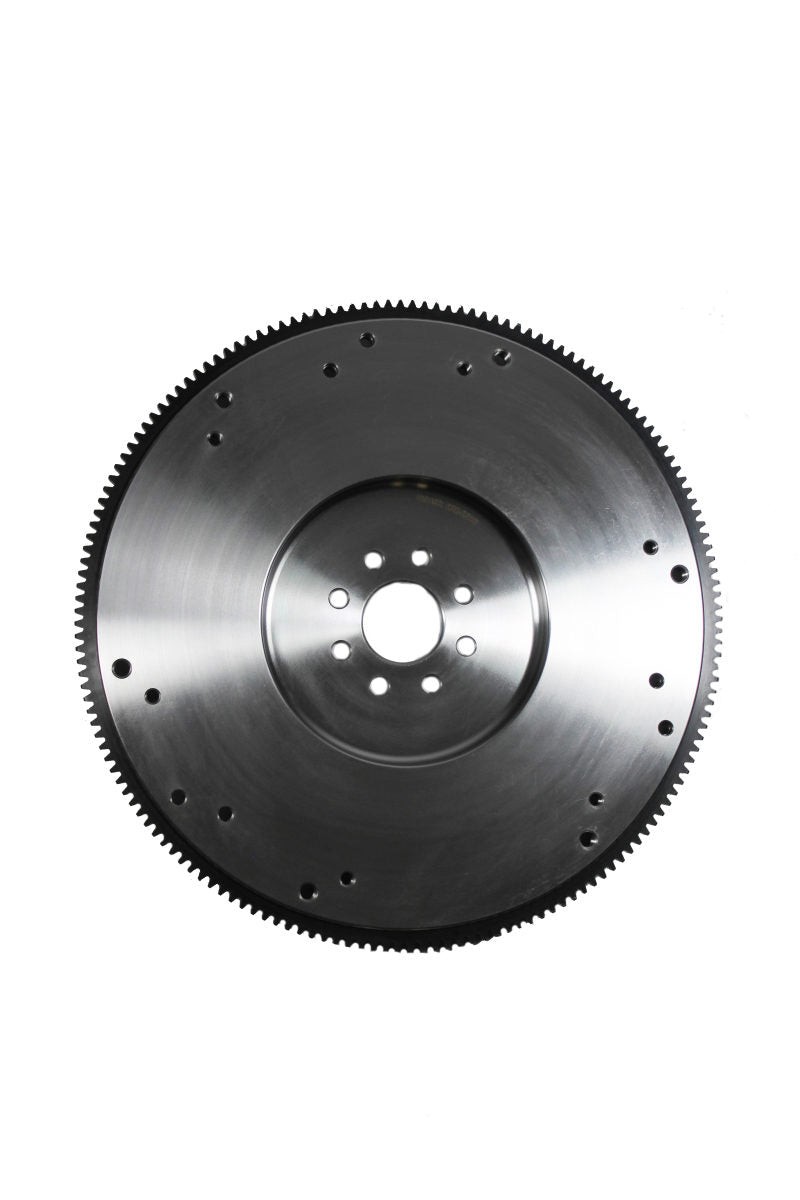

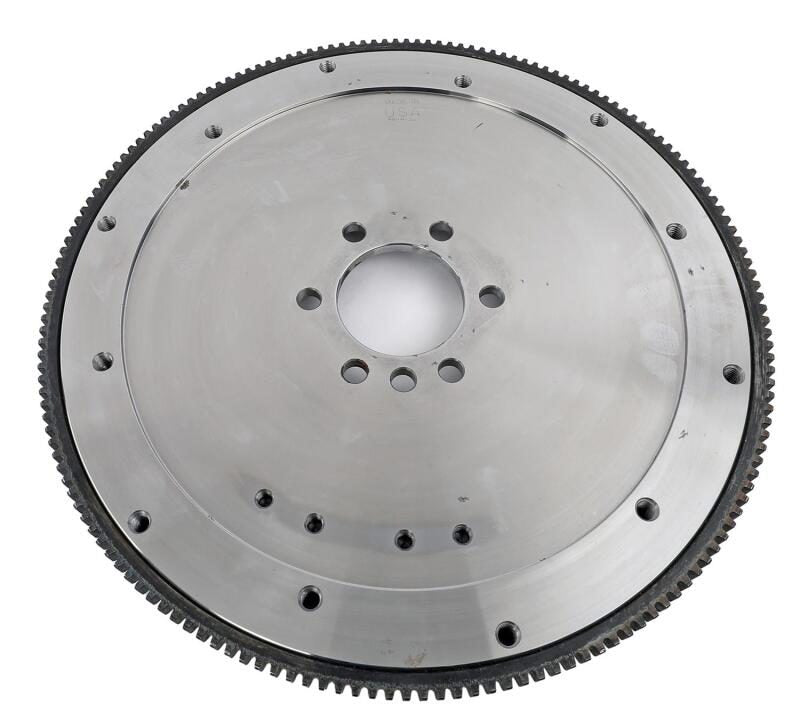

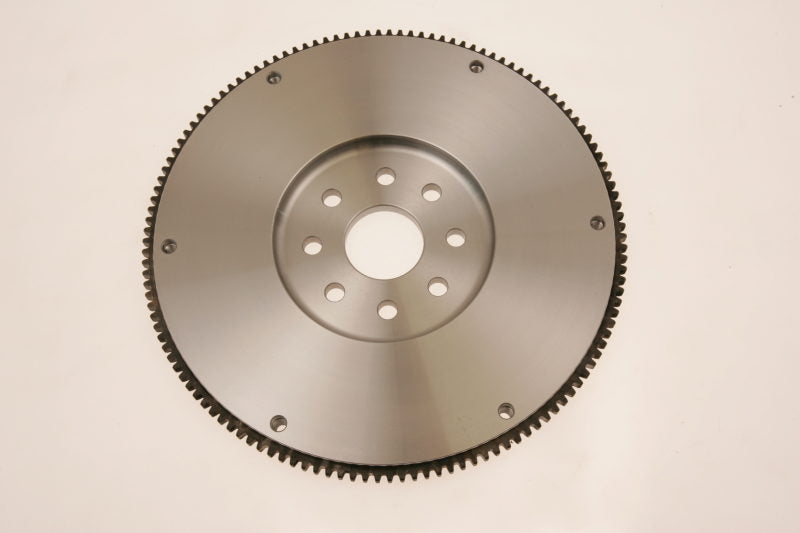

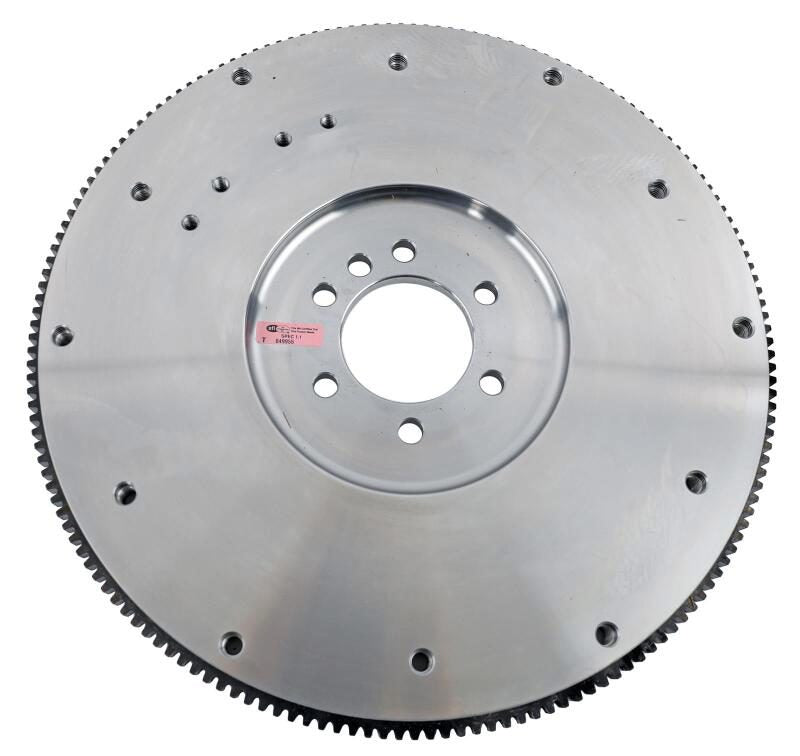

Mcleod 460132 - Steel Flywheel Chevy 28 1955-85 1955-85 SB & All BB 168 Gear 11inLong Pattern

Flywheel: Steel: Chevrolet: 1955-85 SBC: 1970-90 BBC: 168T: 30 lbs.

McLeod steel flywheels are perfect for drivers wanting to retain near factory weight. Our flywheels are CNC machined from billet steel. The ring is a durable 1045 steel.168 RG.Must add CW kit 560222 for ALL EXTERNALLY BALANCED ENGINES

McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.

  • • Billet Steel. • 1045 Steel Hardened Ring Gear. • SFI rated.
Make: Chevrolet
Flywheel Material: Billet steel
Marine Use: No
Replaceable Friction Surface: No
Engine Balance: Internal
Quantity: Sold individually.
Ring Gear Tooth Quantity: 168-tooth
SFI 1.1 Approved: Yes
Pressure Plate Style: Borg & Beck/Diaphragm/Long
Rear Main Seal Style: 2-piece
Counter Weight Kit if Required: 560222 (sold separately)
Notes: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
Crankshaft to Flywheel Bolt Quantity: 6-bolt
Engine 3: 1991-Up BBC 1pc Seal 454, 502, 572 (Large Register)
Engine 2: 1991-Up BBC 1pc Seal 454, 502, 572 (Large Register)
Engine 1: 1955-85 SBC 2pc Seal (Large Register)
Disc Diameter (in.): 10.500/11.000/12.000 in.
Weight: 30.000 lbs.
