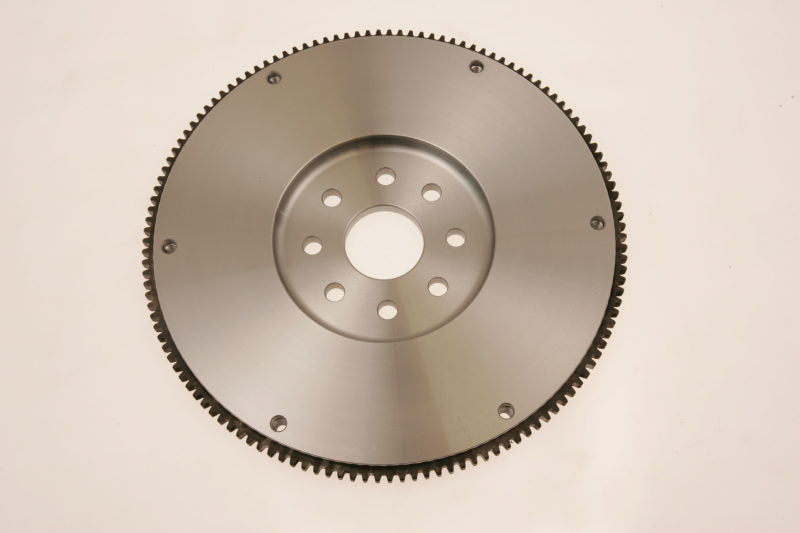

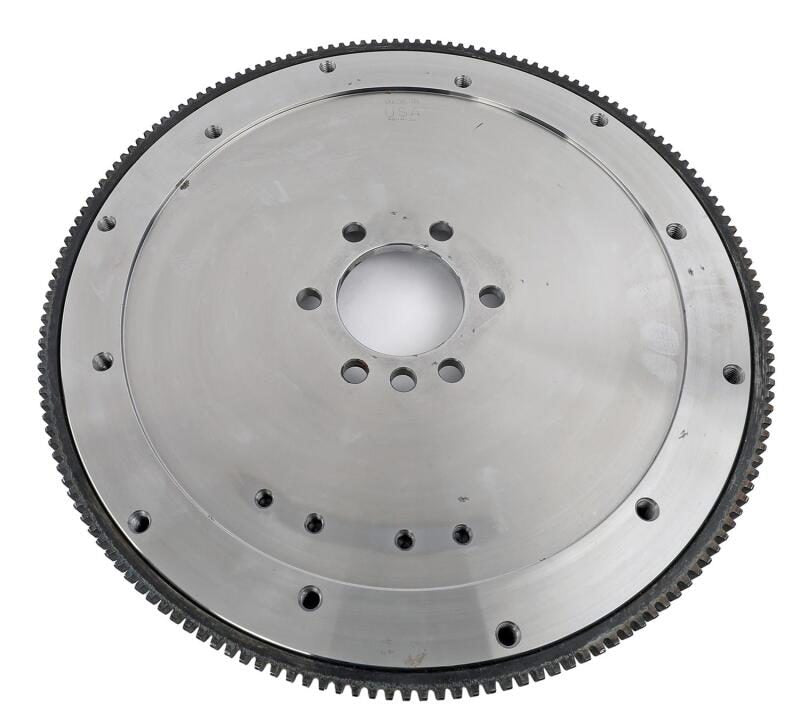

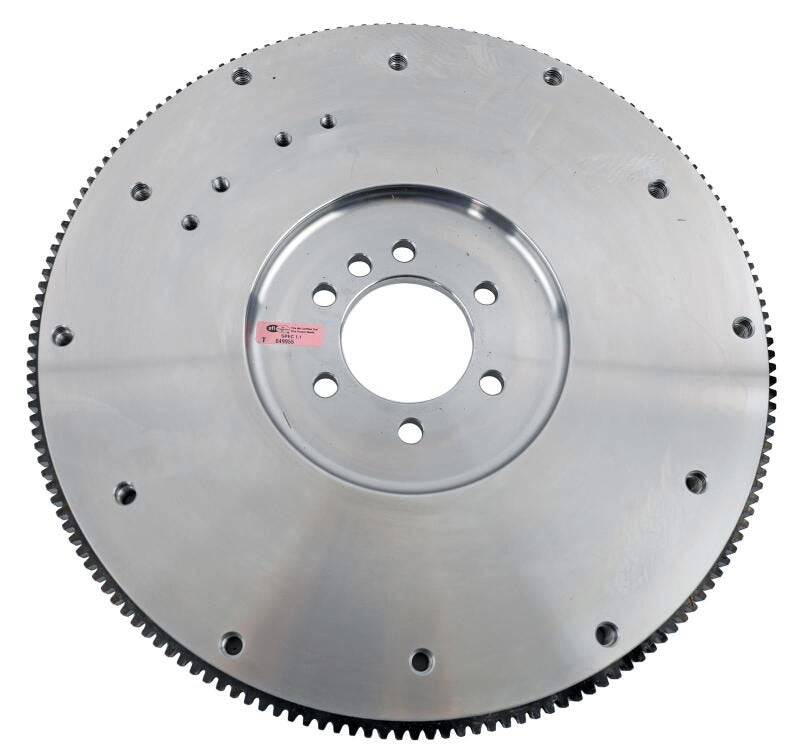

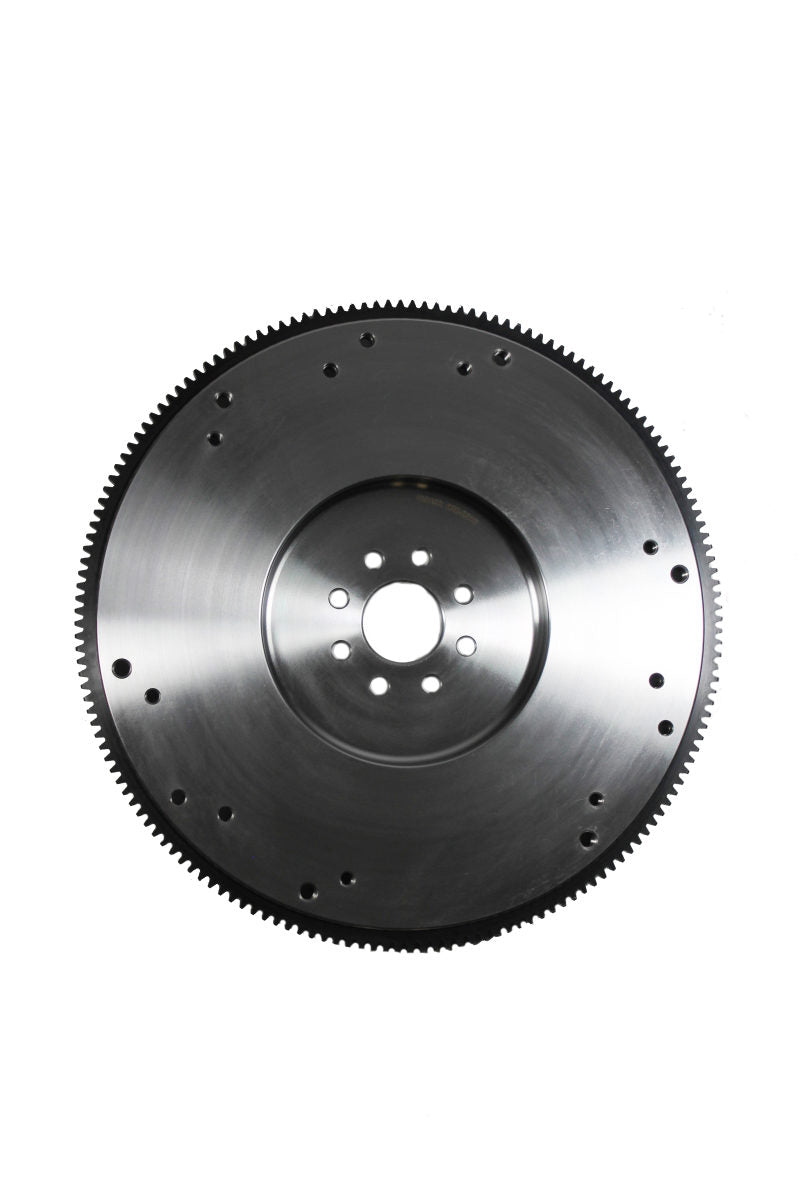

Mcleod 460130 - Steel Flywheel Chevy 28 1955-85 1955-85 SB & All BB 168 Gear

Mcleod  |  SKU: MC-460130
$28099 $35400
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

Mcleod 460130 - Steel Flywheel Chevy 28 1955-85 1955-85 SB & All BB 168 Gear

Flywheel - 168 Tooth - 28 lb - Steel - Internal Balance - 2-Piece Seal - GM - Each

McLeod steel flywheels are perfect for those drivers wanting to retain near factory weight. Our flywheels are CNC machined from billet steel. The ring is made from very durable 1045 steel.Must add counterweight for 383/400 & 454

McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.

  • • Billet Steel. • 1045 Steel Hardened Ring Gear. • SFI rated.
Engine 3: 1991-Up BBC 1pc Seal 454, 502, 572 (Large Register)
Engine 2: 1991-Up BBC 1pc Seal 454, 502, 572 (Large Register)
Engine 1: 1955-85 SBC 2pc Seal (Large Register)
Disc Diameter (in.): 10.500/11.000/12.000 in.
Weight: 30.000 lbs.
Make: Chevrolet
Flywheel Material: Billet steel
Marine Use: No
Replaceable Friction Surface: No
Engine Balance: Internal
Quantity: Sold individually.
Ring Gear Tooth Quantity: 168-tooth
SFI 1.1 Approved: Yes
Pressure Plate Style: Borg & Beck/Diaphragm
Rear Main Seal Style: 2-piece
Counter Weight Kit if Required: 560222 (sold separately)
Notes: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
Crankshaft to Flywheel Bolt Quantity: 6-bolt
