Mcleod 1327 - 1300 Series Hydraulic Bearing: GM: Saginaw: "A" 2.50"-2.99"

Mcleod  |  SKU: MC-1327
$000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

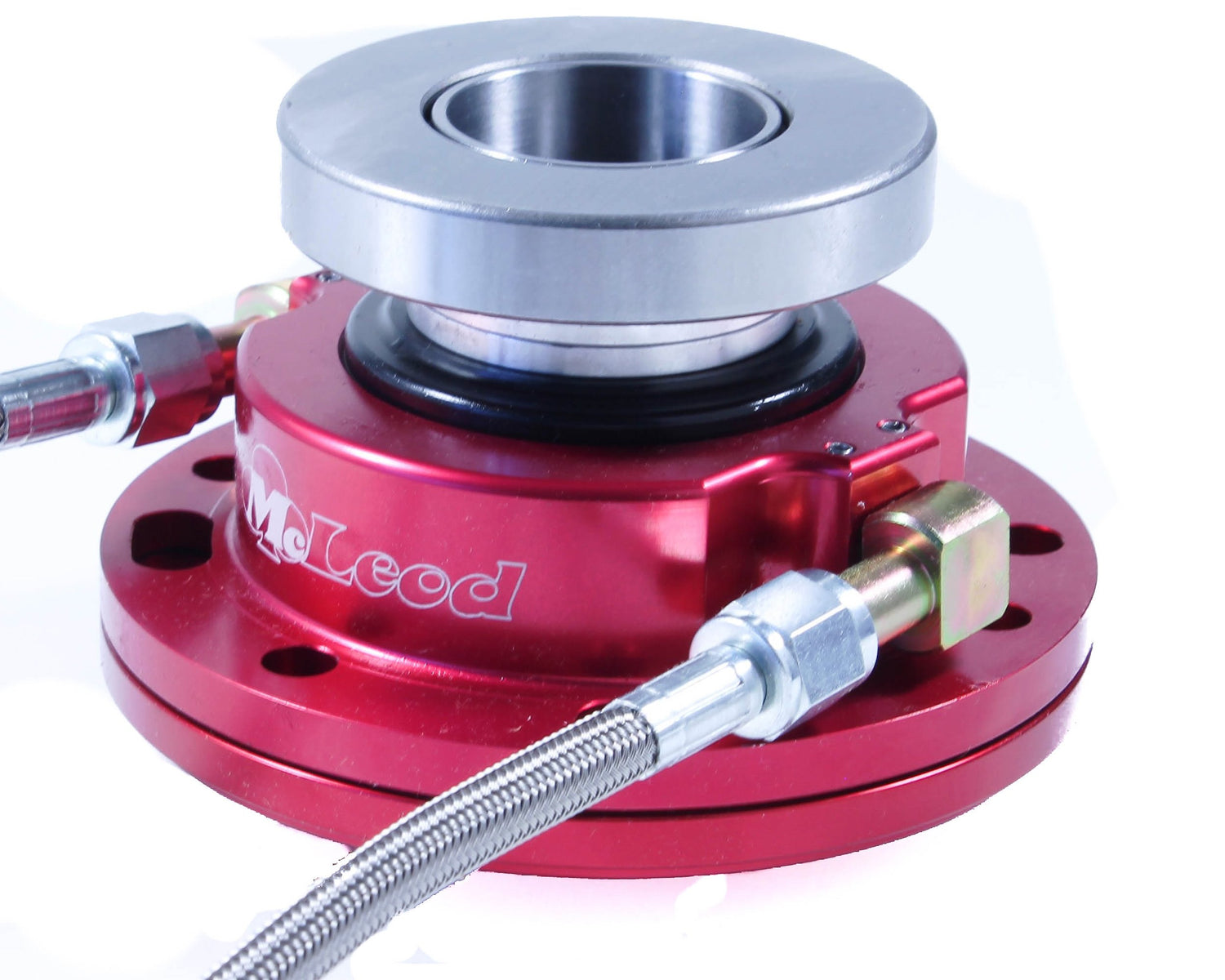

Mcleod 1327 - 1300 Series Hydraulic Bearing: GM: Saginaw: "A" 2.50"-2.99"

Throwout Bearing - 1300 Series - Hydraulic - Bolt-On - Braided Stainless Lines - GM Saginaw - Each

1300 Series Hydraulic Bearing: GM: Saginaw: "A" Dimension: 2.50"-2.99": 4.680" Register

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.

  • • Hard Anodized Billet Aluminum. • Stainless Steel Lines. • Bleeder. • Slip on. • Self-adjusting.
Transmission: Saginaw
"A" Dimension: 2.50 in. to 2.99 in.
Spline: 1 1/8In. x 26
Stock Collar I.D. (in.): 4.680In.
Height 3 Spacers: 2.890In.
Height 2 Spacers: 2.740
Height 1 Spacer: 2.590In.
Bearing Face O.D. (in.): 3.000
Bearing Face I.D. (in.): 1.590
Quantity: Sold individually.
Note: This bearing will NOT work with a OEM self adjusting pressure plate. For more info please call McLeod Tech at 714-630-2764
Note 2: This bearing will NOT work with counter weighted diaphragm pressure plates.
