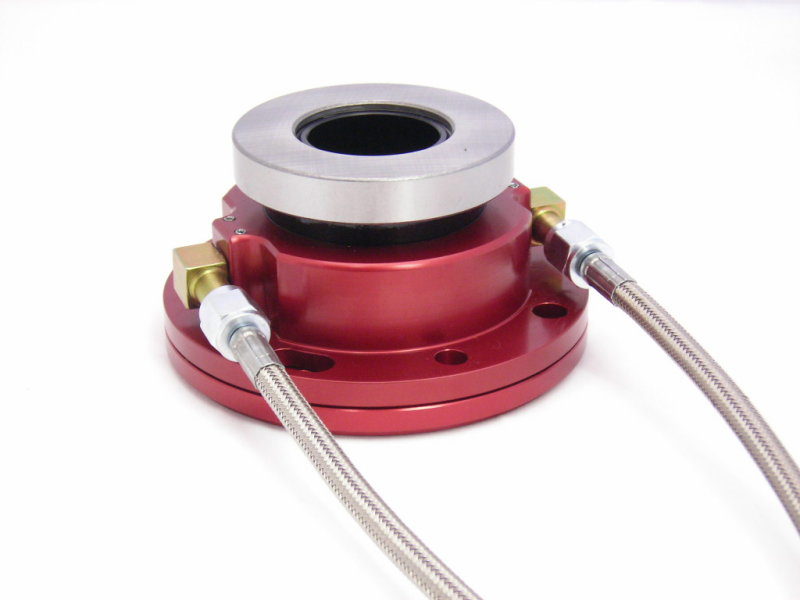

Mcleod 1304 - Hydraulic T.O. Bearing Blt On 1-1/16X10 Ford Top Loader

Mcleod  |  SKU: MC-1304
Sale price $36599 Regular price $46200

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

Mcleod 1304 - Hydraulic T.O. Bearing Blt On 1-1/16X10 Ford Top Loader

Throwout Bearing - 1300 Series - Hydraulic - Bolt-On - 4.850 in Collar ID - Braided Stainless Lines - Ford 3/4 Speeds / Top Loaders - Each

HYDRAULIC THROWOUT BEARING BLT ON 1-1/16X10 FORD TOP LOADER McLeod Hydraulic TOB's are made of the finest hard anodized billet aluminum. They are built with swivel fittings, stainless steel lines and a bleeder for easier installation.

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.

  • • Hard Anodized Billet Aluminum. • Stainless Steel Lines. • Bleeder. • Slip on. • Self-adjusting.
Transmission: Ford Top Loader (Small Shaft 1-1/16 x 10)
"A" Dimension: 2.50 in. to 2.99 in.
Spline: 1 1/8In. x 26
Stock Collar I.D. (in.): 4.680In.
Height 3 Spacers: 2.890In.
Height 2 Spacers: 2.740
Height 1 Spacer: 2.590In.
Bearing Face O.D. (in.): 3.000
Bearing Face I.D. (in.): 1.590
Quantity: Sold individually.
Note: This bearing will NOT work with a OEM self adjusting pressure plate. For more info please call McLeod Tech at 714-630-2764
Note 2: This bearing will NOT work with counter weighted diaphragm pressure plates.
