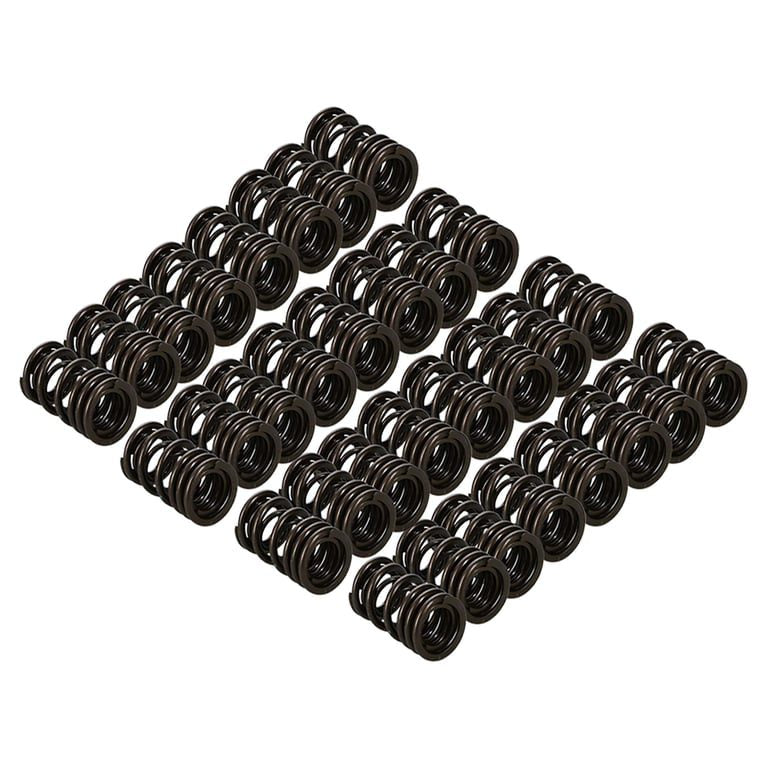

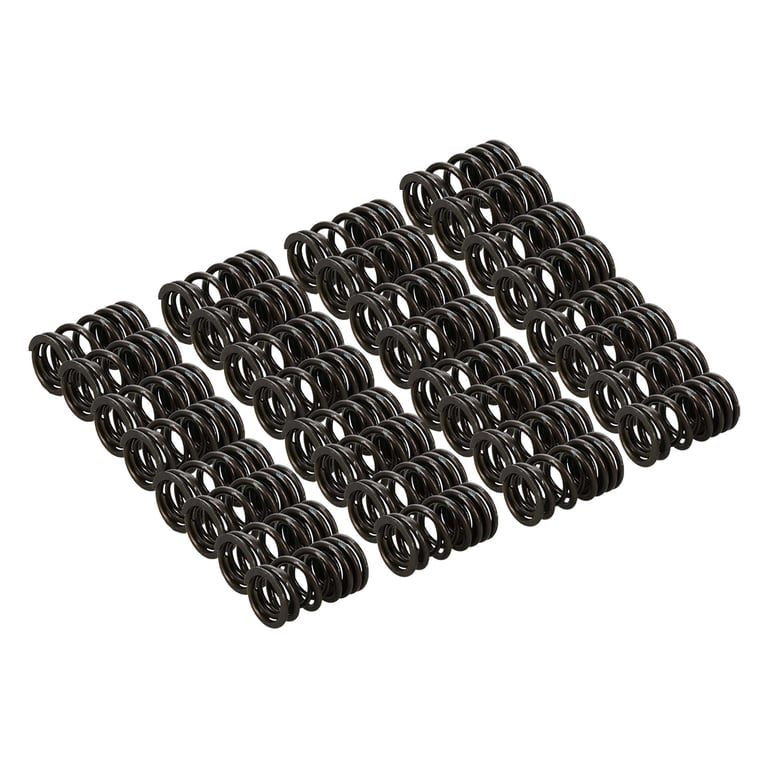

Manley 26205 - Toyota 3UR-FE Valve Spring and Retainer Kit (Use factory valve locks)

Manley  |  SKU: BBPB-26205
Sale price $76042 Regular price $80044

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Manley 26205 - Toyota 3UR-FE Valve Spring and Retainer Kit (Use factory valve locks)

Manley Sprng/Retnr Kit - Toyota Tundra 3UR-FE (OE sprng seat) - Locks NOT Incld

Max Lift: 0.480" - Spring: 22205-32 - Titanium Retainer: 23205-32

Manley Performance Valve spring and Retainer Kits take the guess work out of making your valvetrain race-ready. Engineered for maximum durability, stability, and precision in high-performance and racing applications, these chrome-silicon alloy springs provide exceptional fatigue resistance and high-tensile strength, ensuring consistent valve control at extreme RPMs. Save time and money with these kits, featuring premium springs, retainers, designed to handle aggressive aftermarket camshafts.

  • Includes matched Valve Springs, Retainers, and Locks (if part number ends in "K"). Spring Locators included in some applications.
  • Designed to handle aftermarket camshafts and up to 10,000 RPM
  • Heat treated aerospace grade titanium retainers CNC machined to exacting tolerances
  • Includes 7 Machined Valve Locks manufactured from the premium quality heat treated steel
Stem Diameter: 5.50
Valve Stem Diameter: 5.50
Product Type: Valve Spring Kit
Valve Spring Outer Diameter: 0.990
Valve Spring Inner Diameter: 0.710
Valve Spring Quantity: 32
Valve Spring Coil Bind Height: 0.920
Valve Spring Rate: 265
Valve Lift - Stock: 0.430
Valve Lift - Maximum: 0.480
Installed Pressure and Height: 75 @ 1.450
Open Pressure and Height: 205 @ 0.970
Valve Spring Retainer Step Height: 0.080
Valve Lock Angle: 6
Engine Type: ICE
Make: Toyota
Engine: 3URFE
