Manley 23675-1 - Ti Retainers-11/32", 3/8" stem diam. 7 DEG vlv lock, 1.325" OD, +.100" inst. hgt
Manley | SKU:
BBPB-23675-1
Regular price
$000
Unit price
/
Unavailable
AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

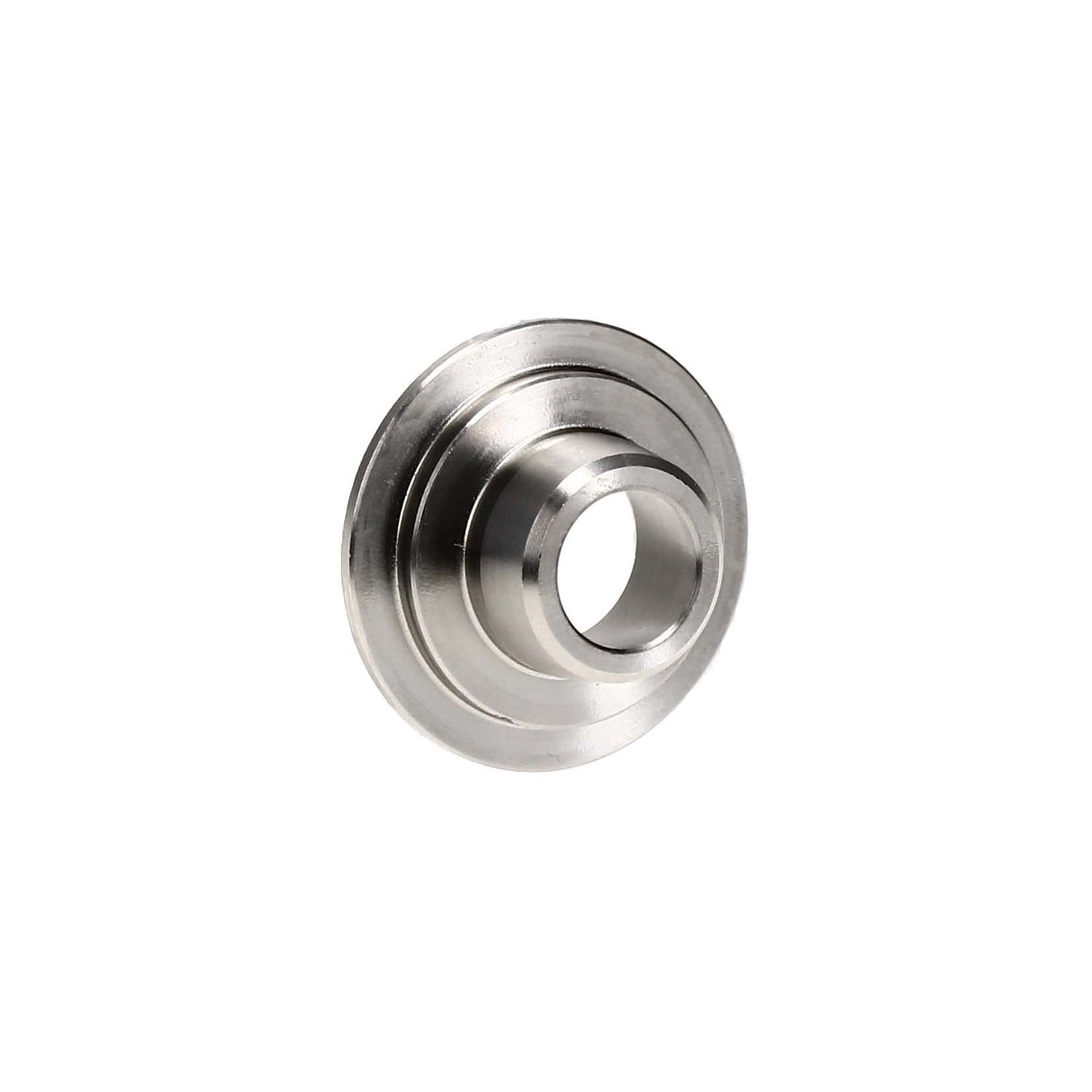

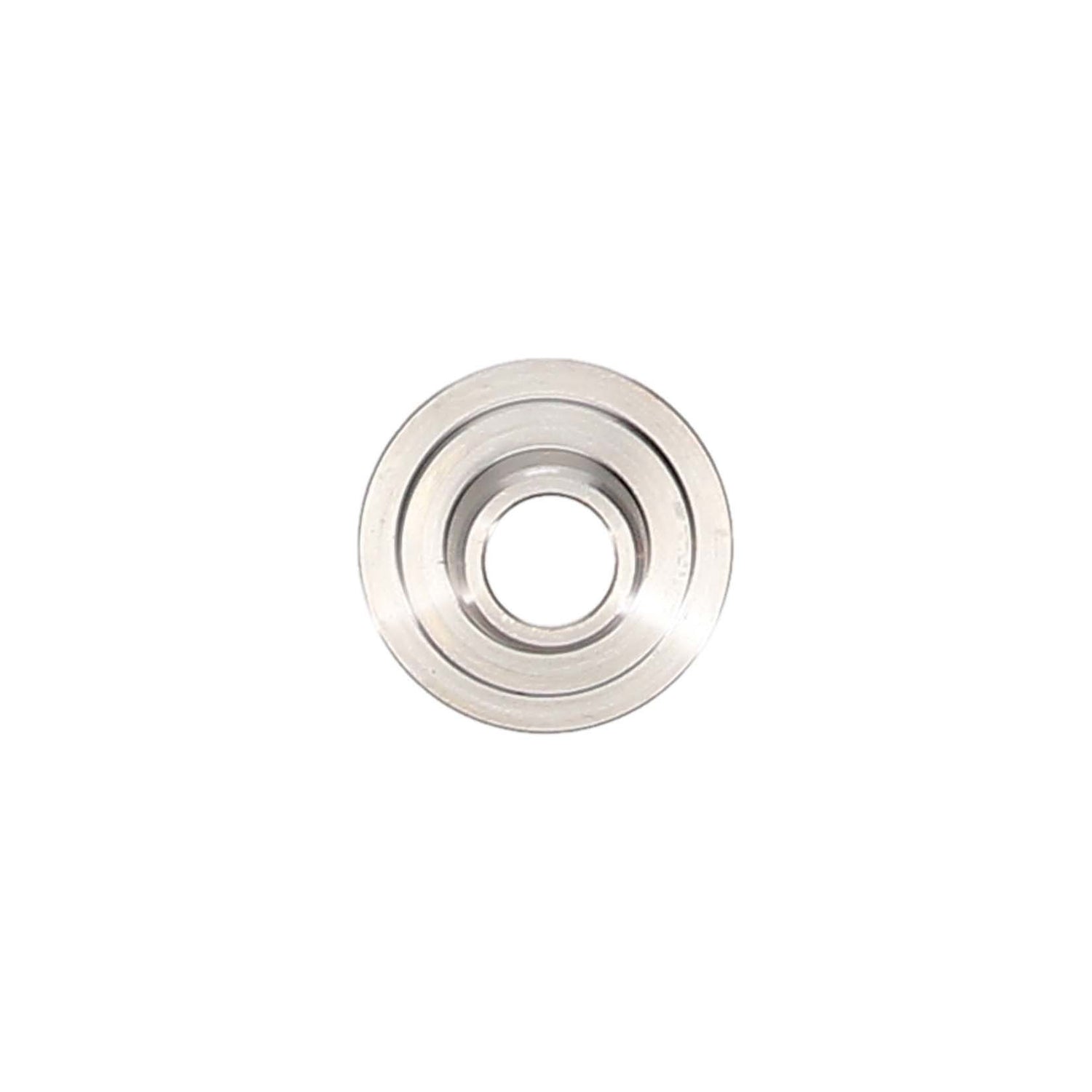

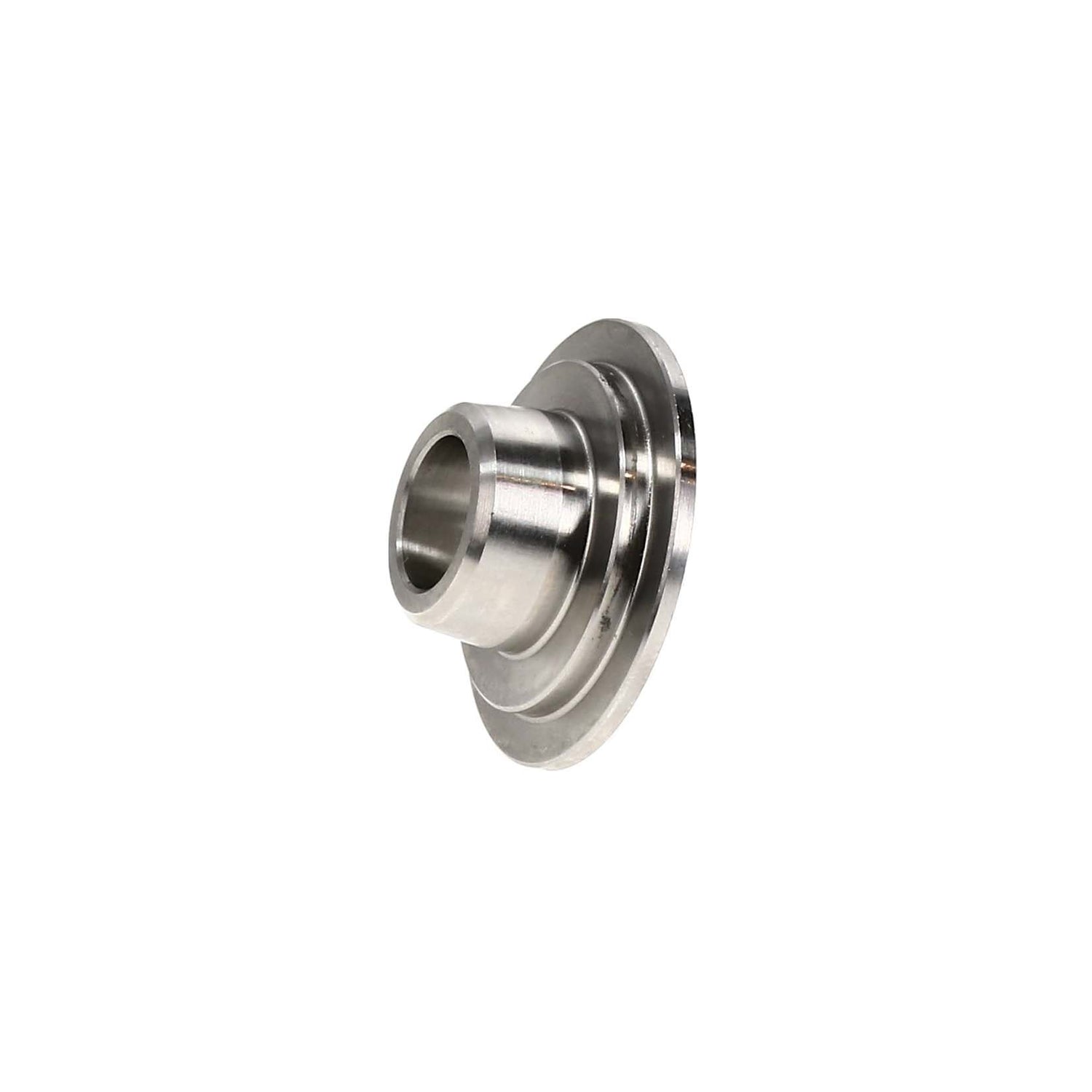

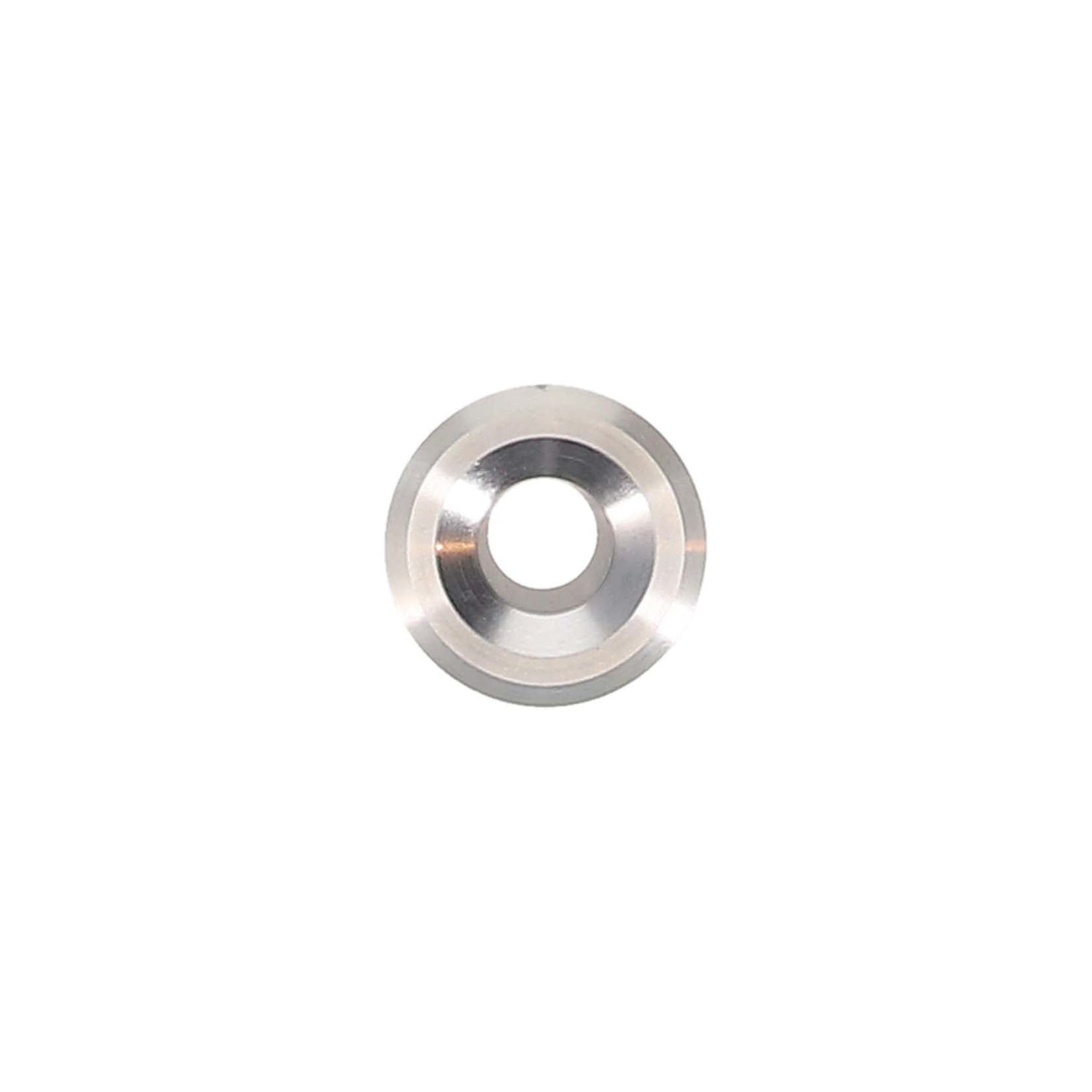

Manley 23675-1 - Ti Retainers-11/32", 3/8" stem diam. 7 DEG vlv lock, 1.325" OD, +.100" inst. hgt
Ti Retainers-11/32", 3/8" stem diam. 7 DEG vlv lock, 1.325" OD, +.100" inst. hgt
Height: +.100 in. - Spring Diameter: 1.500 in. - Valve Stem Diameter: 11/32 in. - Weight: 14.0 grams
Manley Valve Spring Retainers are engineered using finite element analysis and CNC machined to exacting tolerances to deliver unmatched strength and performance. These retainers reduce valvetrain mass, improve RPM potential, and ensure superior valve control in the most demanding racing applications.
- Special 6AL-4V titanium for maximum strength
- CAD designed for ultimate reduction in mass without sacrificing strength
- Must use 7 valve locks
- Use Manley P/N 13098 (recommended) or factory Chevrolet LT valve locks
- Sames as 23623 but +.055" more installed height
- Sames as 23628 dimensionally except made of Titanium
Product Market: Domestic
Weight: 15
Stem Diameter: 11/32, 3/8
Valve Stem Diameter: 11/32, 3/8
Product Type: Engine Valve Spring Retainer
Valve Spring Outer Diameter: 1.500
Valve Spring Retainer Quantity: 1
Valve Spring Retainer Series: 7 Degree Titanium
Valve Spring Retainer Material: 6AL-4V Titanium
Valve Spring: Manley 221420, 1455, 1456, 1457, 1460, 1461
Valve Lock Angle: 7
Height: 0.100
First Step Diameter: 1.325
Second Step Diameter: 1.035
Third Step Diameter: 0.705
Industry: Automotive
Engine Type: ICE
