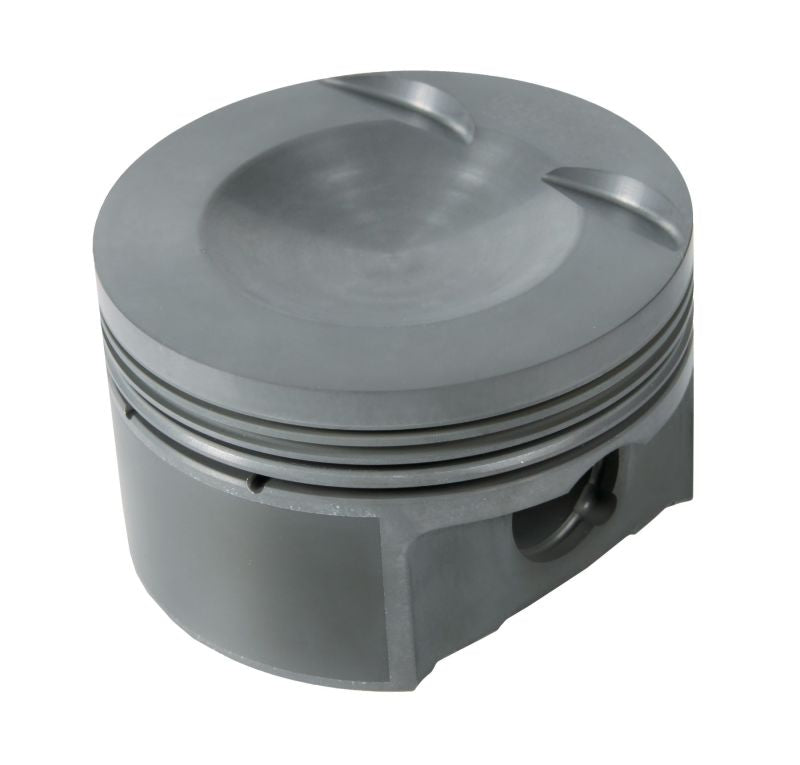

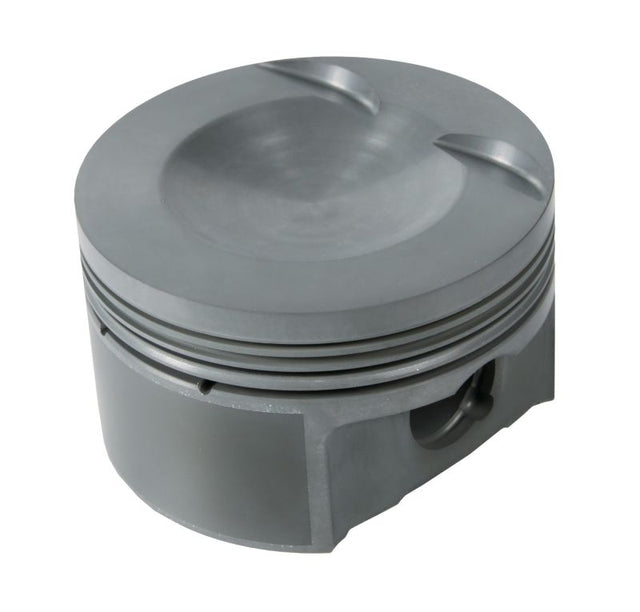

Mahle Motorsport 930286348 - Mahle MS Piston Set VW TSi 2.0L 82.5mm Bore 92.8mm Stroke 144mm Rod 23mm Pin -7.1cc 9.5CR Set of 4
Mahle Motorsport | SKU:
DGJH-930286348
Sale price
$71499
Regular price
$79504
Unit price
/
Unavailable
$80.05 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930286348 - Mahle MS Piston Set VW TSi 2.0L 82.5mm Bore 92.8mm Stroke 144mm Rod 23mm Pin -7.1cc 9.5CR Set of 4
Piston and Ring - PowerPak - Forged - Dish - 82.5 mm Bore - 1.165 in Compression Height - 1.2 x 1.5 x 2.0 mm Ring Grooves - Minus 7.10 cc - Volkswagen 4-Cylinder - Kit
82.50mm x 29.6mm CH, 92.8mm stroke,144mm rod,23mm pin,-7.1cc,314g,9.5CR, M142P
Piston Mass: 314g
LCR Coating: Phosphate
Pin Wall Thickness: 0.187
Pin Style: Floating
Pin Material: Steel
Pin Mass: 122g
Pin Length: 57.404mm
Pin Diameter: 23.0mm
Package Quantity: Sold as a set of 4
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.5mm
LCR Material: Cast Iron
File Fit: N
Piston Material: Forged, M142P
Crown Volume: -7.1cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.2mm
UCR Material: Steel
UCR Coating: CrN PVD
Rings Included: Y
Piston Style: Dish, w/ 2 valve reliefs
Piston Ring Thickness: 1.2mm, 1.5mm, 2.0mm
Pins Included: Y
