Mahle Motorsport 930286245 - Mahle MS Piston Set Honda/Acura K24 87.5mm Bore 99mm Stroke 152mm Rod -9.4cc 10 CR Set of 4
Mahle Motorsport | SKU:
DGJH-930286245
Sale price
$56299
Regular price
$63110
Unit price
/
Unavailable
$68.11 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

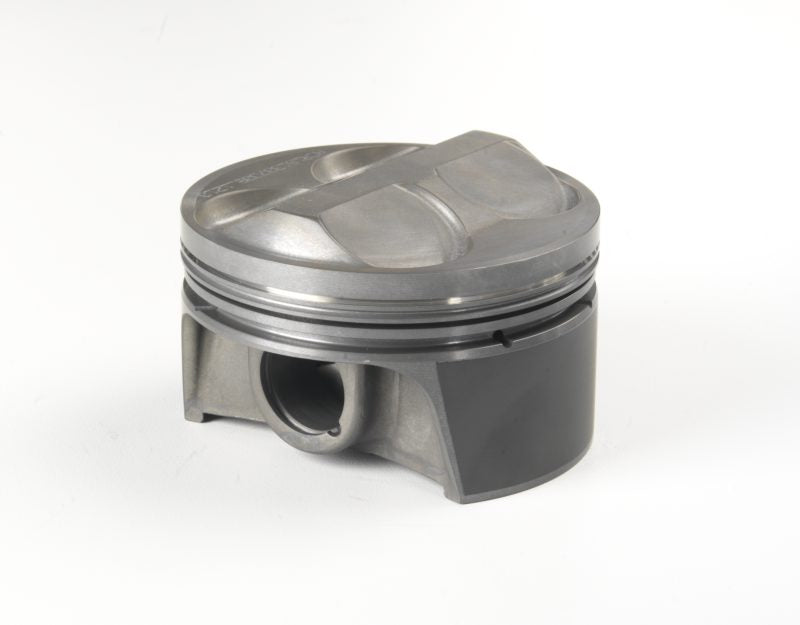

Mahle Motorsport 930286245 - Mahle MS Piston Set Honda/Acura K24 87.5mm Bore 99mm Stroke 152mm Rod -9.4cc 10 CR Set of 4
Piston (set) - HONDA / ACURA K24 2.4L
87.50mm x 30mm CH, 99.0mm stroke,152.0mm rod,22mm pin,-9.4cc,318g,10.0CR, 2618
Clip Style: Round Wire
Pin Wall Thickness: 0.25
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: Y
Piston Style: Dish, w/ 4 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Material: Forged, 2618
Piston Mass: 318g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 125g
Pin Length: 52.0mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 4
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: -9.4cc
UCR Thickness: 1.2mm
