Mahle Motorsport 930286145-1 - Mahle MS Piston Set S54 B32 3.2L 87.5mm Bore 91mm Stroke 139mm Rod 21mm Pin-13.1cc 11.6 CR - Single
Mahle Motorsport | SKU:
DGJH-930286145-1
Sale price
$15199
Regular price
$16980
Unit price
/
Unavailable
$17.81 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

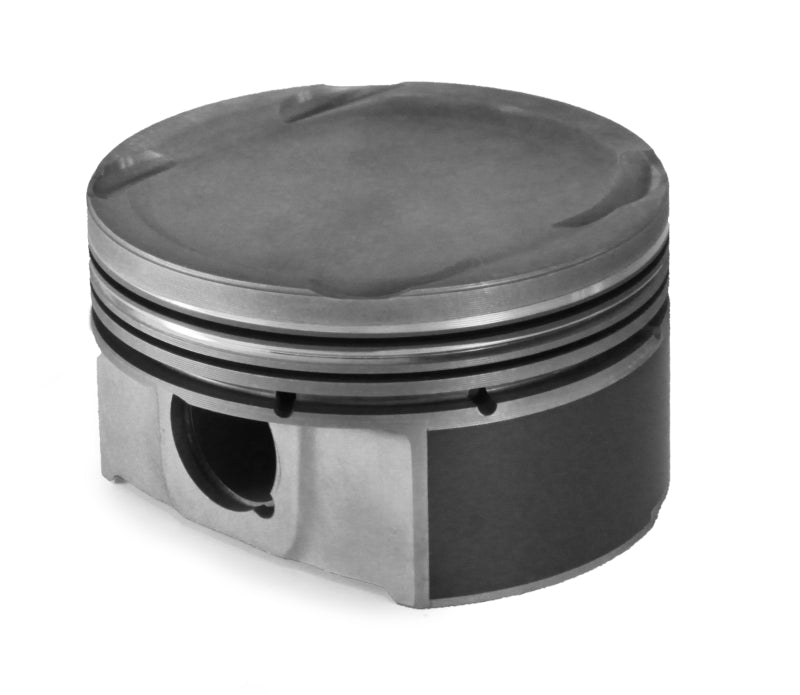

Mahle Motorsport 930286145-1 - Mahle MS Piston Set S54 B32 3.2L 87.5mm Bore 91mm Stroke 139mm Rod 21mm Pin-13.1cc 11.6 CR - Single
Piston (ea) - BMW S54 B32 3.2L E46 M3
87.50mm x 32.3mm CH, 91.0mm stroke,139mm rod,21mm pin,-13.1cc,343g,11.6CR, 2618, SINGLE PISTON
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: -13.1cc
UCR Thickness: 1.2mm
Clip Style: Round Wire
Pin Wall Thickness: 0.197
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: N
Piston Style: Dish, w/ 4 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Material: Forged, 2618
Piston Mass: 343g
Pins Included: N
Pin Style: Floating
Clips Included: N
Pin Material: Steel
Pin Mass: 98g
Pin Length: 50.0mm
Pin Diameter: 21.0mm
Package Quantity: Sold as a set of 1
