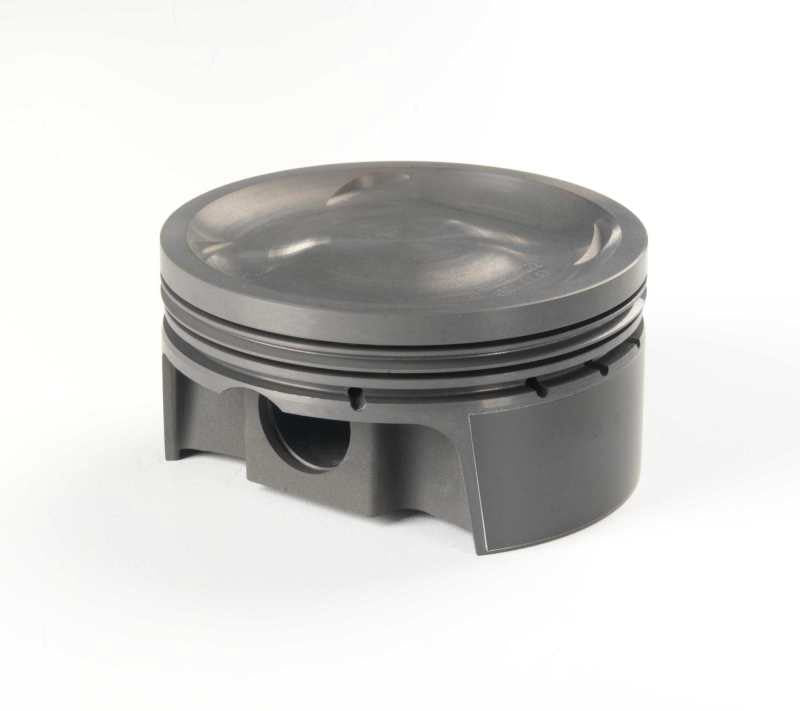

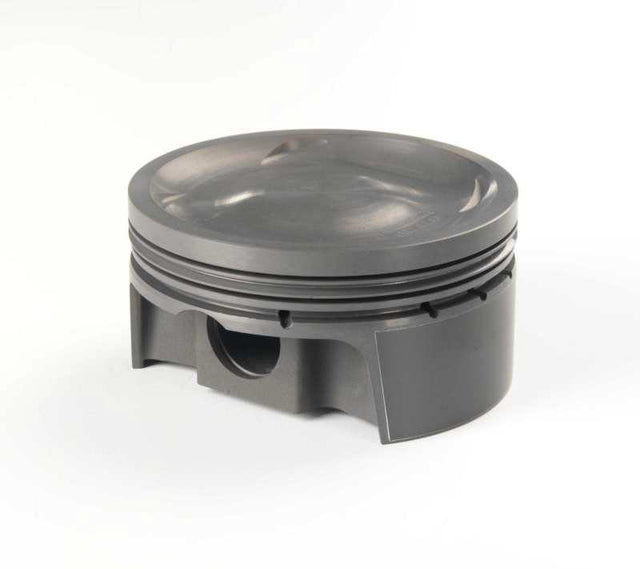

Mahle Motorsport 930285117 - Mahle MS Piston Set Subaru 2.5L 99.50mm Bore 79mm Stroke 130.5mm Rod 23mm Pin -22cc 8.5 CR Set of 4
Mahle Motorsport | SKU:
DGJH-930285117
Sale price
$66199
Regular price
$74216
Unit price
/
Unavailable
$80.17 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930285117 - Mahle MS Piston Set Subaru 2.5L 99.50mm Bore 79mm Stroke 130.5mm Rod 23mm Pin -22cc 8.5 CR Set of 4
Piston (set) - SUBARU WRX 2.5L STI, FORESTER, LEGACY
99.50mm x 30.7mm CH, 79.0mm stroke,130.5mm rod,23mm pin,-19.3cc,409g,8.5CR, 2618
Clip Style: Round Wire
Pin Wall Thickness: 0.187
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dish, w/ 4 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 409g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 124g
Pin Length: 57.404mm
Pin Diameter: 23.0mm
Package Quantity: Sold as a set of 4
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -19.3cc
UCR Thickness: 1.0mm
