Mahle Motorsport 930266070 - Mahle MS Piston Set Ford 487ci 4.27in Bore 4.250in Stroke 6.7in Rod 0.990 Pin -9cc 12.1 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930266070
Sale price
$76099
Regular price
$83554
Unit price
/
Unavailable
$74.55 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

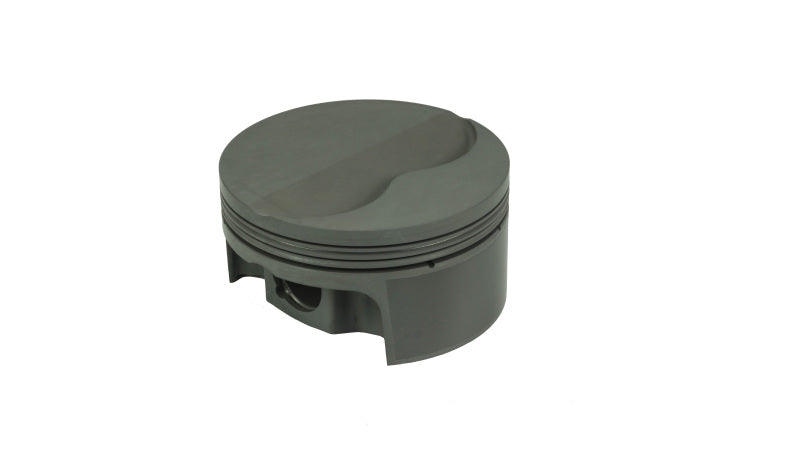

Mahle Motorsport 930266070 - Mahle MS Piston Set Ford 487ci 4.27in Bore 4.250in Stroke 6.7in Rod 0.990 Pin -9cc 12.1 CR Set of 8
Piston (set) - FORD FE FLAT TOP
487cid 4.270 x 1.325CH, 4.250stroke,6.700rod,0.990pin,-8.8cc,506g,12.1CR, 4032
Clip Style: Round Wire
Pin Wall Thickness: 0.18
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 506g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -8.8cc
UCR Thickness: 1.0mm
