Mahle Motorsport 930265060 - Mahle MS Piston Set SBF 462ci 4.160in Bore 4.250in Stroke 6.7in Rod .990 Pin -20cc 10.4 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930265060
Sale price
$79499
Regular price
$87341
Unit price
/
Unavailable
$78.42 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

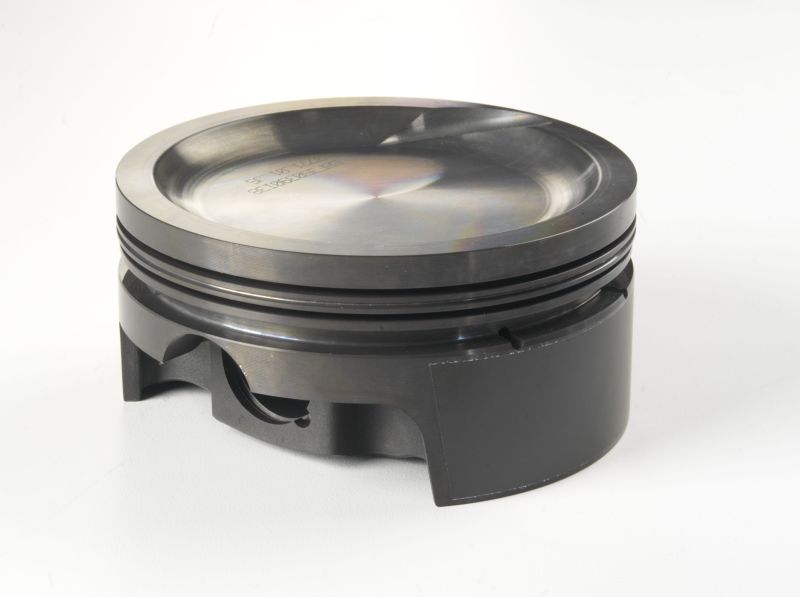

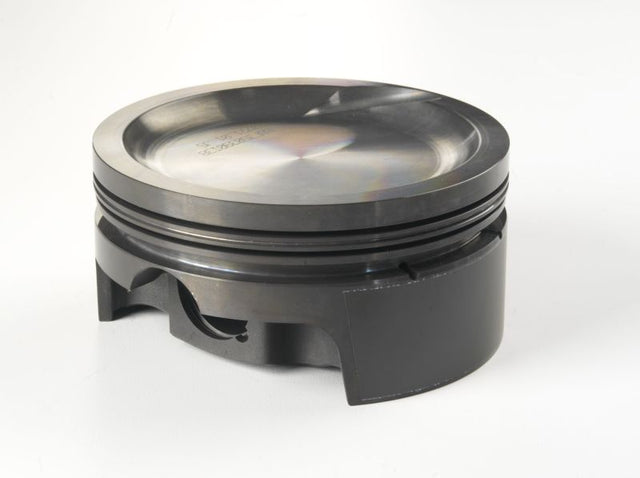

Mahle Motorsport 930265060 - Mahle MS Piston Set SBF 462ci 4.160in Bore 4.250in Stroke 6.7in Rod .990 Pin -20cc 10.4 CR Set of 8

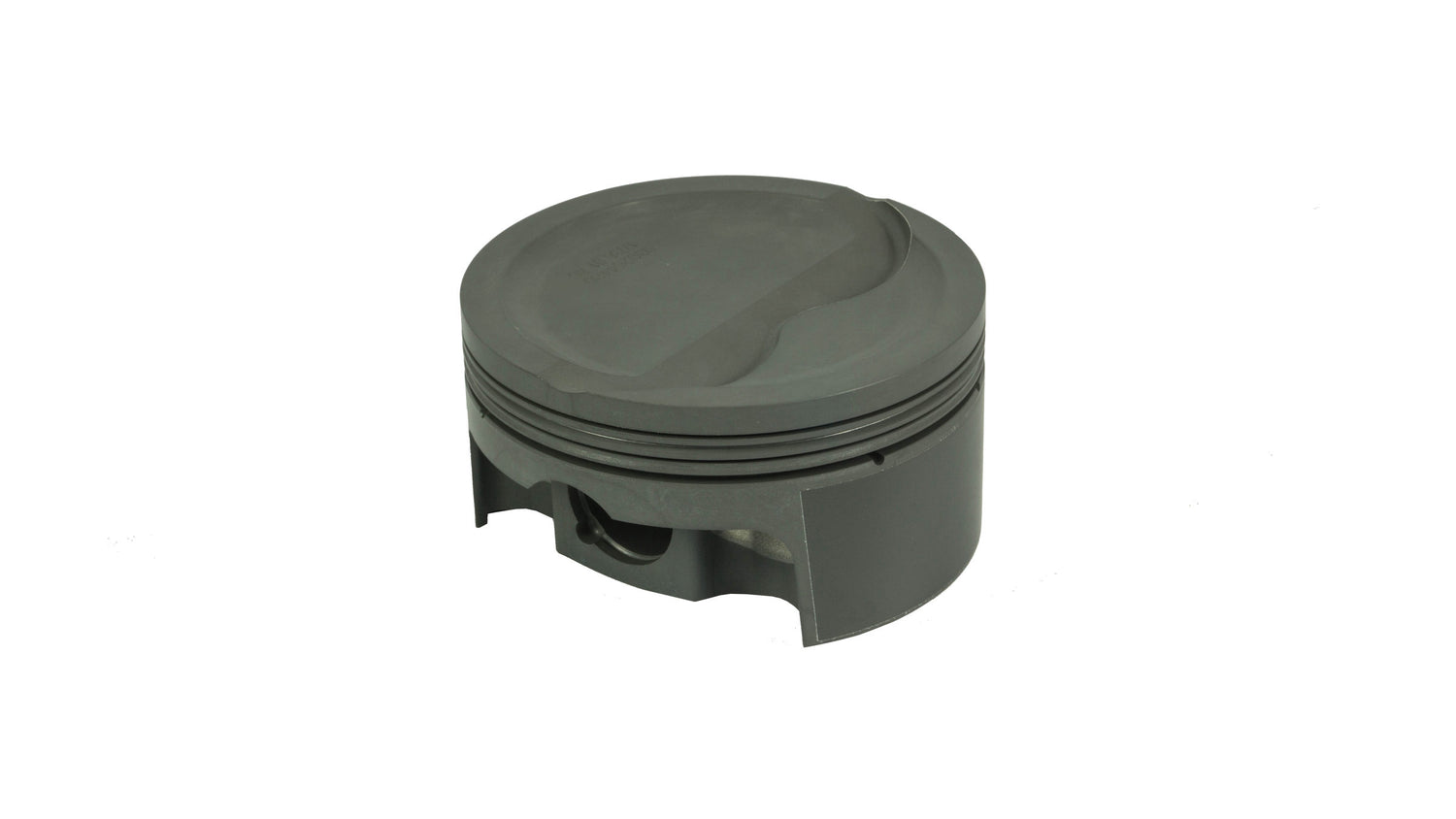

Piston (set) - FORD FE DISH
462cid 4.160 x 1.325CH, 4.250stroke,6.700rod,0.990pin,-20cc,519g,10.4CR, 4032
Piston Material: Forged, 4032
Piston Mass: 519g
Pins Included: Y
Pin Wall Thickness: 0.18
Pin Style: Floating
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
OCR Tension: Standard
OCR Thickness: 2.0mm
Rings Included: Y
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -20cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
Package Quantity: Sold as a set of 8
Piston Style: Dish, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
