Mahle Motorsport 930264990 - Mahle MS Piston Set SBF 447ci 4.090in Bore 4.250in Stroke 6.7in Rod .990 Pin -28cc 9.3 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930264990
Sale price
$78499
Regular price
$86248
Unit price
/
Unavailable
$77.49 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930264990 - Mahle MS Piston Set SBF 447ci 4.090in Bore 4.250in Stroke 6.7in Rod .990 Pin -28cc 9.3 CR Set of 8

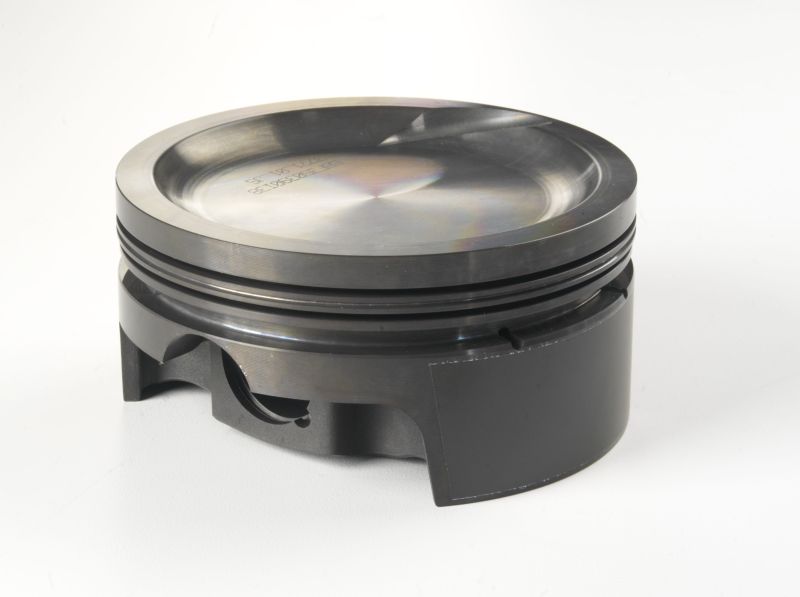

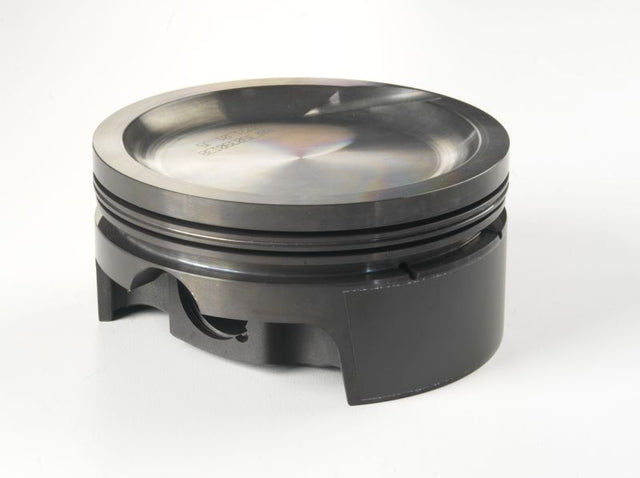

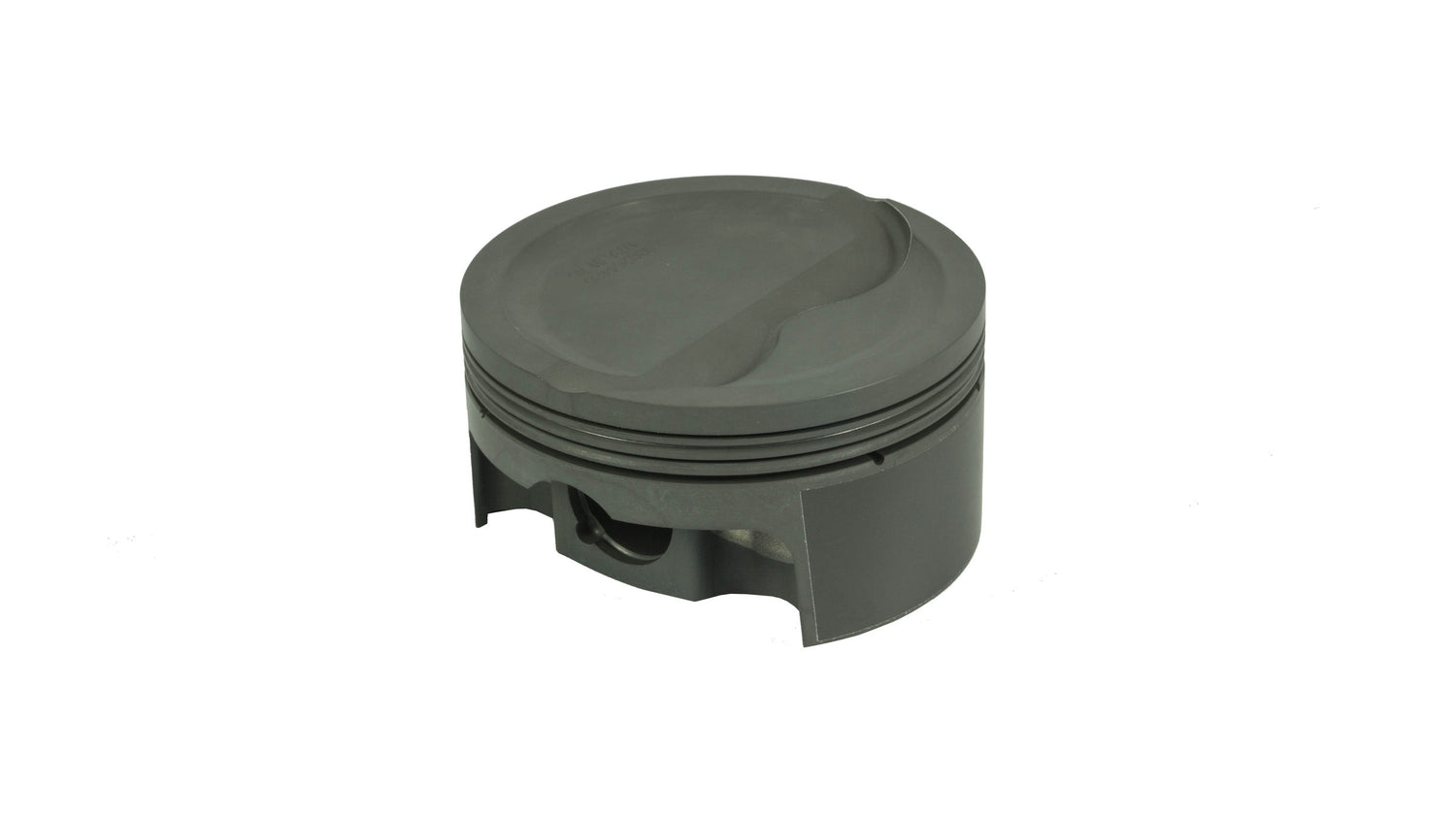

Piston (set) - FORD FE DISH
447cid 4.090 x 1.325CH, 4.250stroke,6.700rod,0.990pin,-28cc,499g,9.4CR, 4032
Piston Material: Forged, 4032
Piston Mass: 499g
Pins Included: Y
Pin Wall Thickness: 0.18
Pin Style: Floating
Pin Material: Steel
Pin Length: 64.0mm
UCR Material: 9254 Steel
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -28cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Coating: HV385
Pin Mass: 148g
Rings Included: Y
Piston Style: Dish, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
