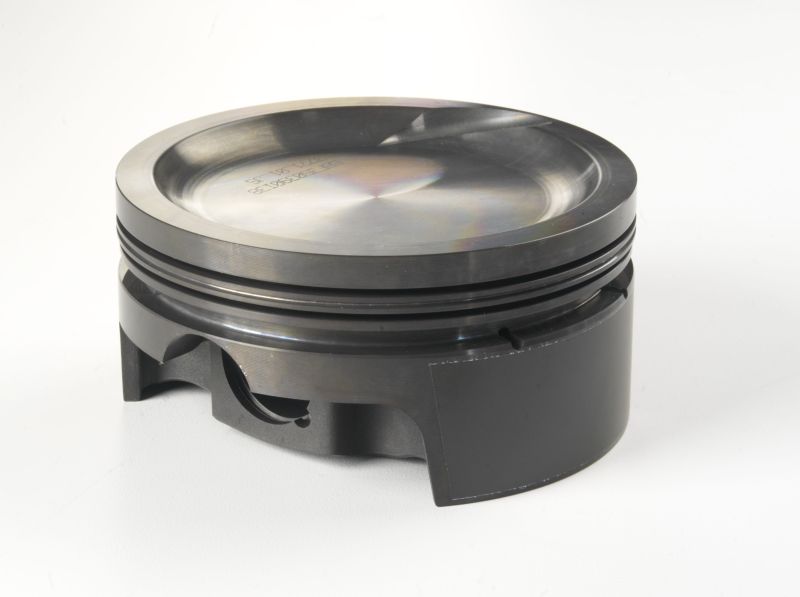

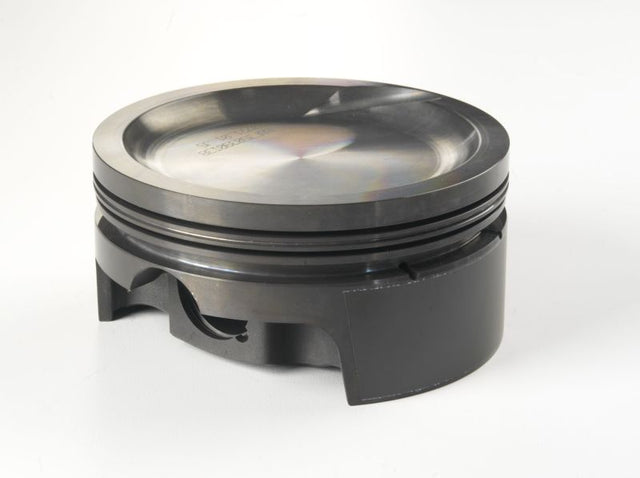

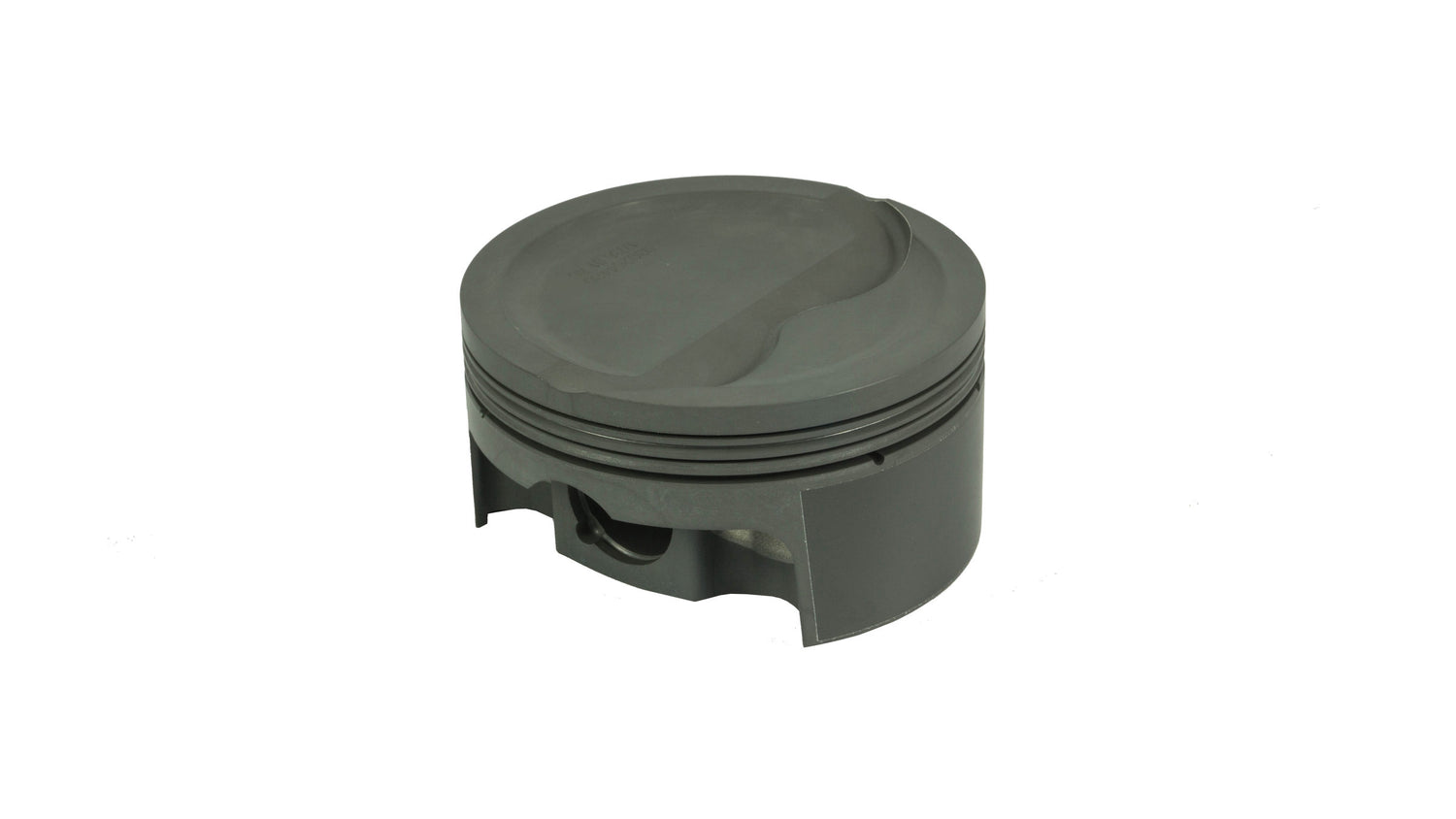

Mahle Motorsport 930264400 - Mahle MS Piston Set SBF 449ci 4.100in Bore 4.250in Stroke 6.7in Rod .990 Pin -18cc 10.0 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930264400
Sale price
$74599
Regular price
$86248
Unit price
/
Unavailable
$116.49 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930264400 - Mahle MS Piston Set SBF 449ci 4.100in Bore 4.250in Stroke 6.7in Rod .990 Pin -18cc 10.0 CR Set of 8
Piston and Ring - PowerPak - Forged - Dish - 4.100 in Bore - 1.325 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Grooves - Minus 18.00 cc - Ford FE-Series - Kit
449cid 4.100 x 1.325CH, 4.250stroke,6.700rod,0.990pin,-18cc,500g,10.3CR, 4032
Clip Style: Round Wire
Pin Wall Thickness: 0.18
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dish, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 500g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -18cc
UCR Thickness: 1.0mm
