Mahle Motorsport 930264190 - Mahle MS Piston Set SBF 434ci 4.090in Bore 4.125in Stroke 6.7in Rod .990 Pin -26cc 9.2 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930264190
Sale price
$76899
Regular price
$86248
Unit price
/
Unavailable
$93.49 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

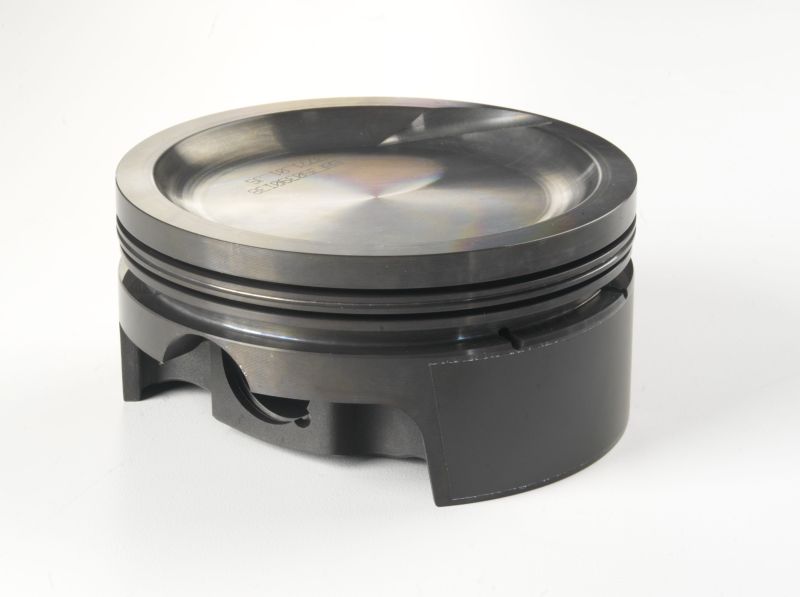

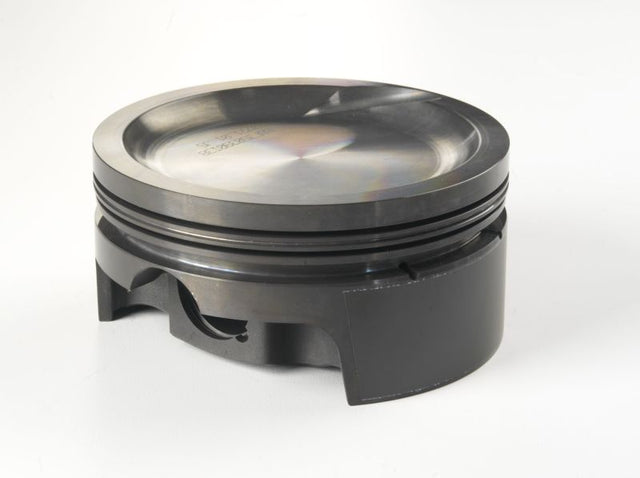

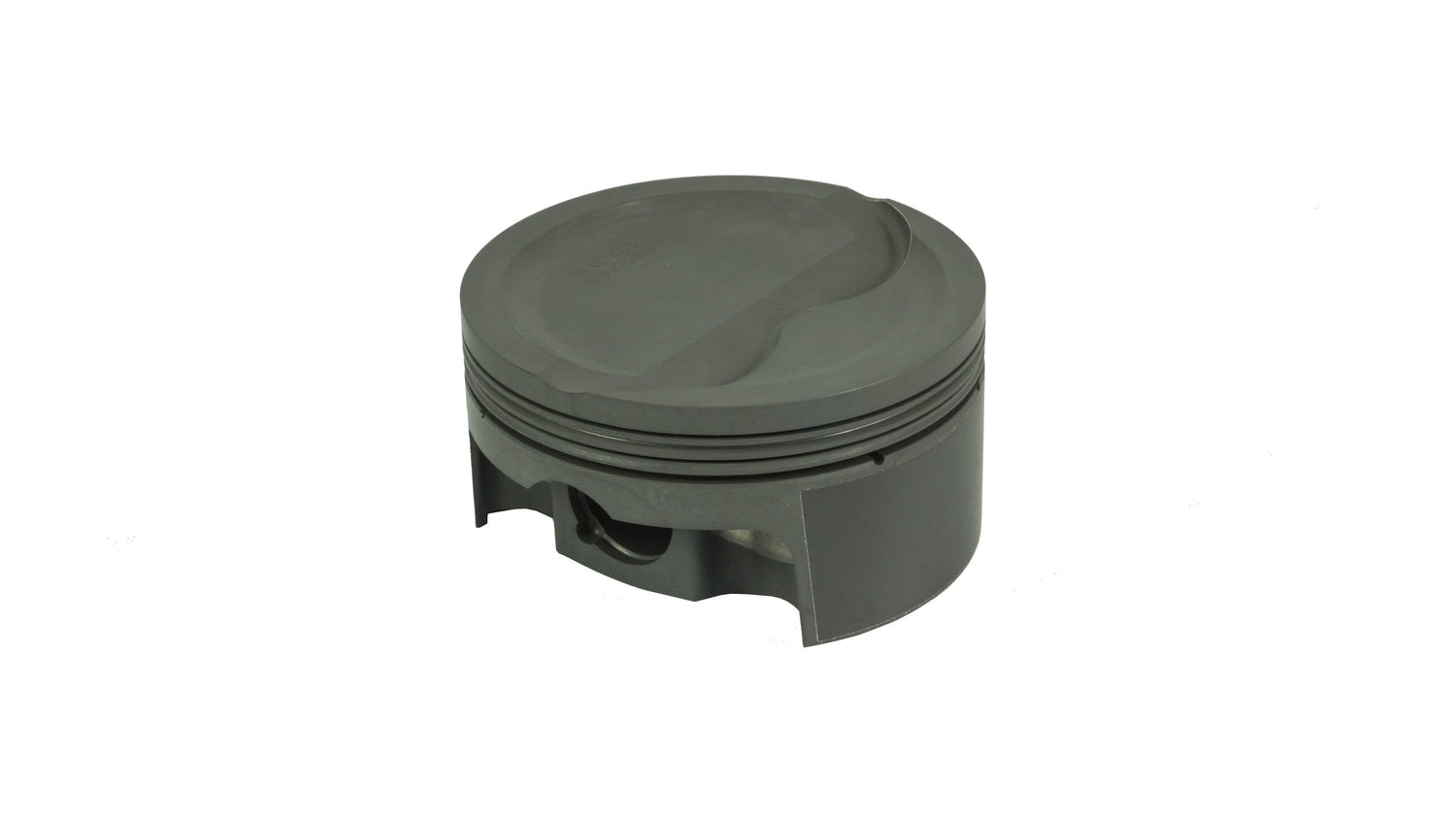

Mahle Motorsport 930264190 - Mahle MS Piston Set SBF 434ci 4.090in Bore 4.125in Stroke 6.7in Rod .990 Pin -26cc 9.2 CR Set of 8
Piston (set) - FORD FE DISH
433cid 4.090 x 1.390CH, 4.125stroke,6.700rod,0.990pin,-26cc,516g,9.3CR, 4032
Clip Style: Round Wire
Pin Wall Thickness: 0.18
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dish, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 516g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -26cc
UCR Thickness: 1.0mm
