Mahle Motorsport 930264080 - Mahle MS Piston Set SBF 416ci 4.080in Bore 3.89in Stroke 6.49in Rod .975 Pin -7cc 10.7 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930264080
Sale price
$80399
Regular price
$88433
Unit price
/
Unavailable
$80.34 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

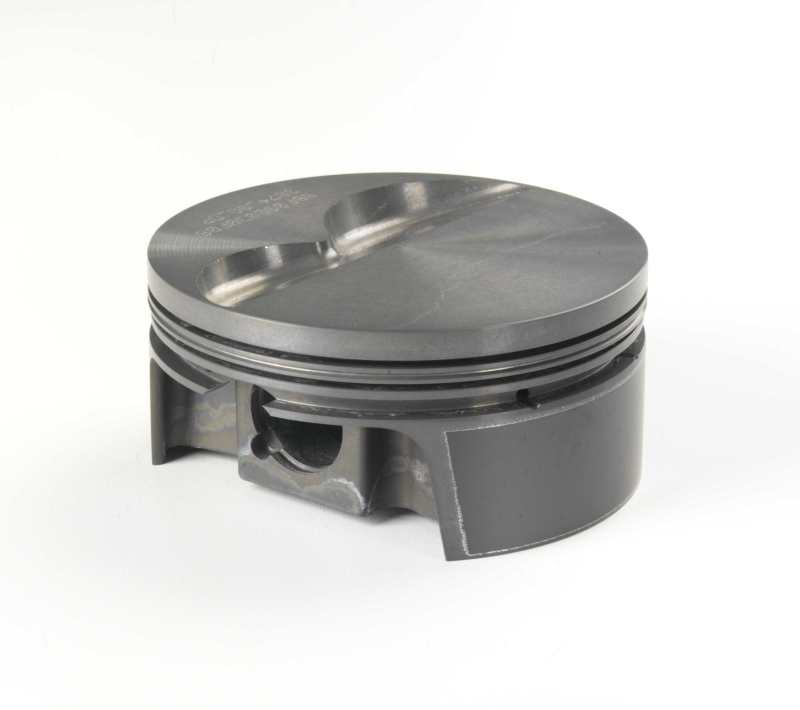

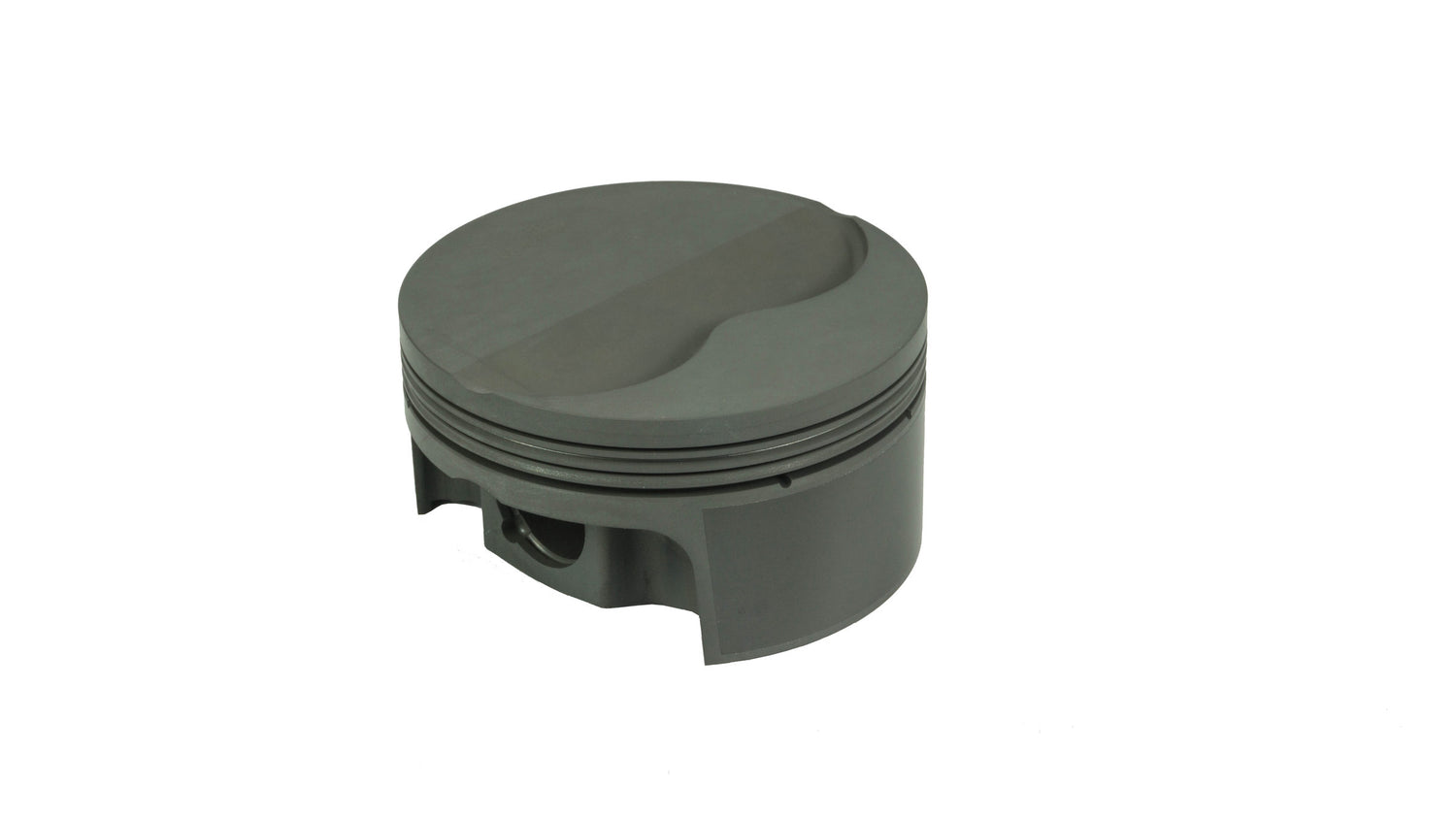

Mahle Motorsport 930264080 - Mahle MS Piston Set SBF 416ci 4.080in Bore 3.89in Stroke 6.49in Rod .975 Pin -7cc 10.7 CR Set of 8
Piston (set) - FORD FE FLAT TOP
416cid 4.080 x 1.665CH, 3.980stroke,6.490rod,0.975pin,-7.5cc,516g,10.7CR, 4032
Clip Style: Round Wire
Pin Wall Thickness: 0.172
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 516g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 130g
Pin Length: 64.0mm
Pin Diameter: 24.765mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -7.5cc
UCR Thickness: 1.0mm
