Mahle Motorsport 930261840 - Mahle MS Piston Set Ford 533ci 4.44in Bore 4.3in Stroke 6.8in Rod 0.990 Pin -5.6cc 12.4CR - Set of 8
Mahle Motorsport | SKU:
DGJH-930261840
Sale price
$79299
Regular price
$87100
Unit price
/
Unavailable
$78.01 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

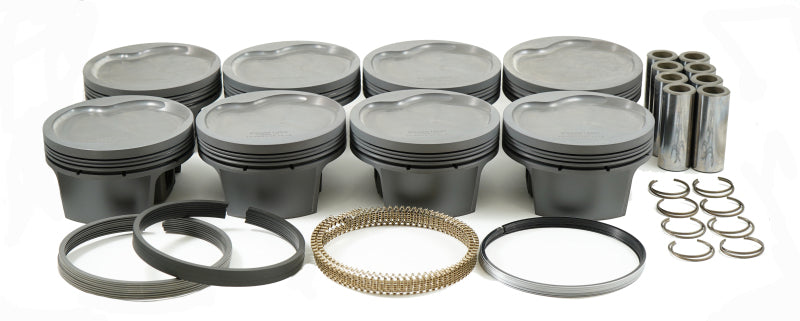

Mahle Motorsport 930261840 - Mahle MS Piston Set Ford 533ci 4.44in Bore 4.3in Stroke 6.8in Rod 0.990 Pin -5.6cc 12.4CR - Set of 8
Piston (set) - BIG BLOCK FORD
533cid 4.440 x 1.350CH, 4.300stroke,6.800rod,0.990pin,-5.6cc,574g,12.4CR, 2618
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -5.6cc
UCR Thickness: 1.5mm
Clip Style: Round Wire
Pin Wall Thickness: 0.18
UCR Material: Ductile Iron
UCR Coating: Plasma Moly
Rings Included: Y
Piston Style: Flattop, w/ INT valve relief
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Material: Forged, 2618
Piston Mass: 574g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.5mm
