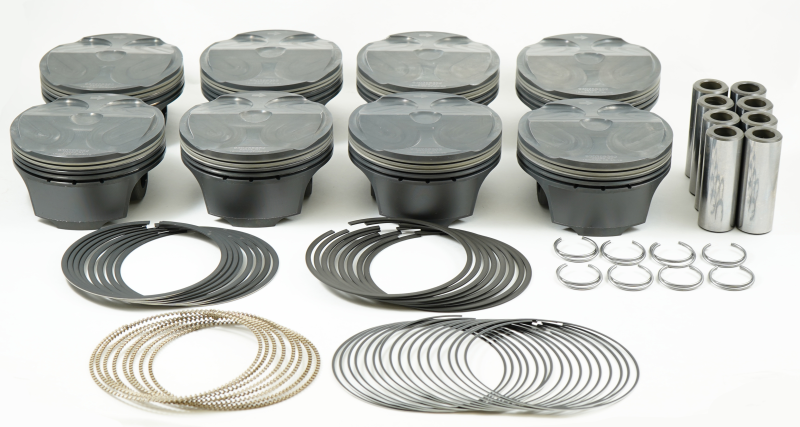

Mahle Motorsport 930258362 - Mahle MS Piston Set Gen 3 Coyote 308ci 3.662in Bore 3.65in Stroke 5.933in Rod .866 Pin 8.4cc 12 CR
Mahle Motorsport | SKU:
DGJH-930258362
Sale price
$93299
Regular price
$1,04358
Unit price
/
Unavailable
$110.59 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930258362 - Mahle MS Piston Set Gen 3 Coyote 308ci 3.662in Bore 3.65in Stroke 5.933in Rod .866 Pin 8.4cc 12 CR
Piston and Ring - PowerPak - Forged - Dome - 3.662 in Bore - 1.167 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Grooves - Minus 12.00 cc - Ford Coyote - Kit
308cid 3.662 x 1.167CH, 3.650stroke,5.933rod,0.866pin,8.4cc,373g,12.0CR, 2618
OCR Tension: Standard
OCR Material: Nitrided stainless steel
LCR Thickness: 1.2mm
LCR Material: 9254 Steel
LCR Coating: Chrome
File Fit: N
Crown Volume: 8.4cc
UCR Thickness: 1.2mm
Clip Style: Round Wire
Pin Wall Thickness: 0.177
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dome, w/ 4 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 373g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 112g
Pin Length: 58.1mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
