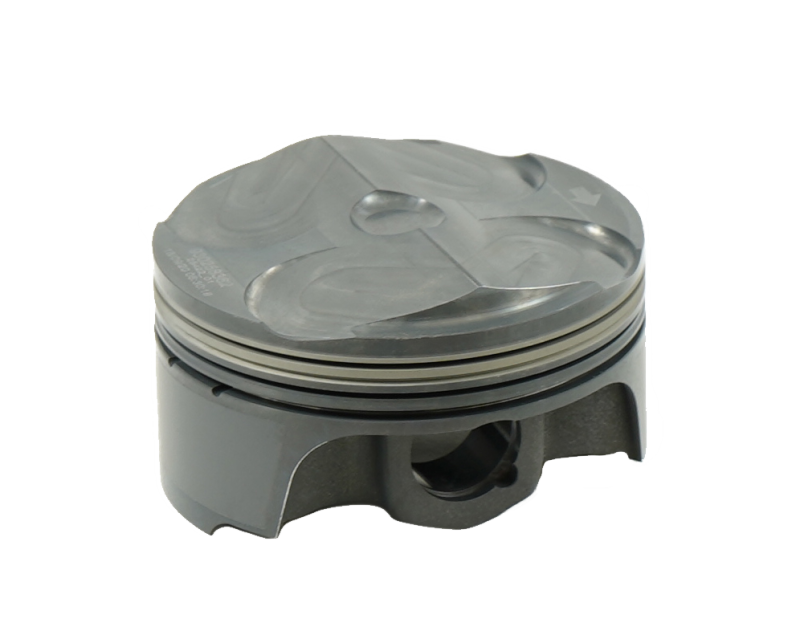

Mahle Motorsport 930258362-1 - Mahle MS Single Piston Gen 3 Coyote 5.0L 3.662in Bore 3.65in Stroke 5.933in Rod .866 Pin 8.4cc 12 CR
Mahle Motorsport | SKU:
DGJH-930258362-1
Sale price
$9999
Regular price
$11170
Unit price
/
Unavailable
$11.71 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930258362-1 - Mahle MS Single Piston Gen 3 Coyote 5.0L 3.662in Bore 3.65in Stroke 5.933in Rod .866 Pin 8.4cc 12 CR
Piston (ea) - FORD 5.0L MODULAR COYOTE Gen 3
308cid 3.662 x 1.167CH, 3.650stroke,5.933rod,0.866pin,8.4cc,373g,12.0CR, 2618, SINGLE PISTON
OCR Material: Nitrided stainless steel
LCR Thickness: 1.2mm
LCR Material: 9254 Steel
LCR Coating: Chrome
File Fit: N
Crown Volume: 8.4cc
UCR Thickness: 1.2mm
Clip Style: Round Wire
Pin Wall Thickness: 0.177
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: N
Piston Style: Dome, w/ 4 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 373g
Pins Included: N
Pin Style: Floating
Clips Included: N
Pin Material: Steel
Pin Mass: 112g
Pin Length: 58.1mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.0mm
OCR Tension: Standard
