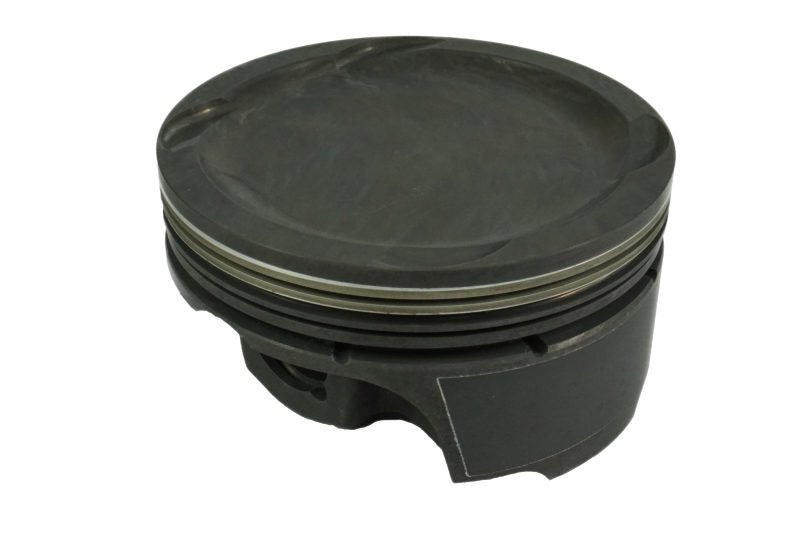

Mahle Motorsport 930258240 - Mahle MS Piston Set SBF 304ci 3.640in Bore 3.65in Stroke 5.933in Rod .866 Pin -13cc 9.1 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930258240
Sale price
$84699
Regular price
$1,08111
Unit price
/
Unavailable
$234.12 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930258240 - Mahle MS Piston Set SBF 304ci 3.640in Bore 3.65in Stroke 5.933in Rod .866 Pin -13cc 9.1 CR Set of 8
304ci, 3.640bore, 3.650stroke, 5.933rod,1.167ch,.866pin,-13cc,348g,9.1cr,2618
FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) 304cid 3.640 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-13.1cc,361g,9.1CR, 2618.
Clips Included: Yes
Coatings: Phosphate plus Grafal plus Hard Anodized top ring groove
Crown Vol: -13.1cc

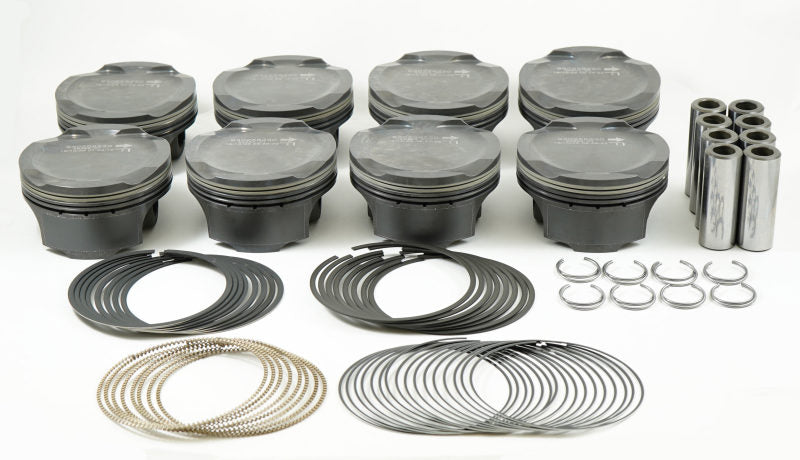

Package Qty: Sold as a set of 8
Pin Diameter: 0.866
Pin Length: 2.405
Pin Mass: 118g
Pin Material: Steel
Pin Style: Floating
Pins Included: Yes
Piston Mass: 361g
Piston Material: Forged, 2618
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Style: Dish, w/ 4 valve reliefs
Rings Included: Yes
Clip Style: Round Wire
