Mahle Motorsport 930258230-1 - FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) SINGLE PISTON (930258230) 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-13.1cc,358g

Name: Mahle Motorsport 930258230-1 - FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) SINGLE PISTON (930258230) 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-13.1cc,358g
Brand: Mahle Motorsport
SKU: DGJH-930258230-1
Availability: Backorder

Mahle Motorsport | SKU: DGJH-930258230-1

$0⁰⁰

AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Mahle Motorsport 930258230-1 - FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) SINGLE PISTON (930258230) 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-13.1cc,358g

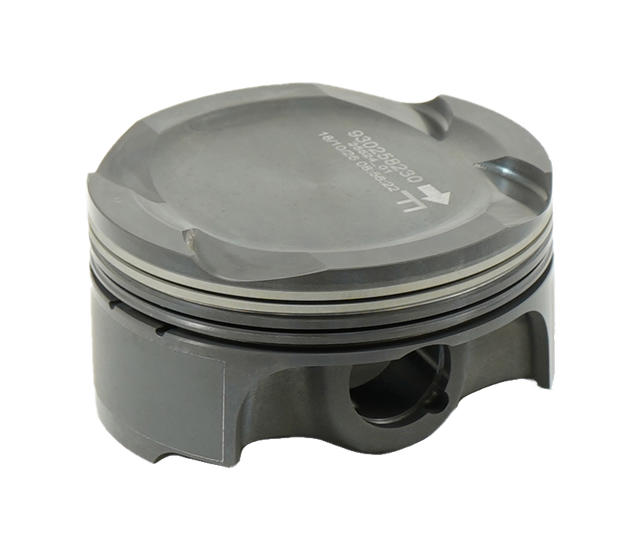

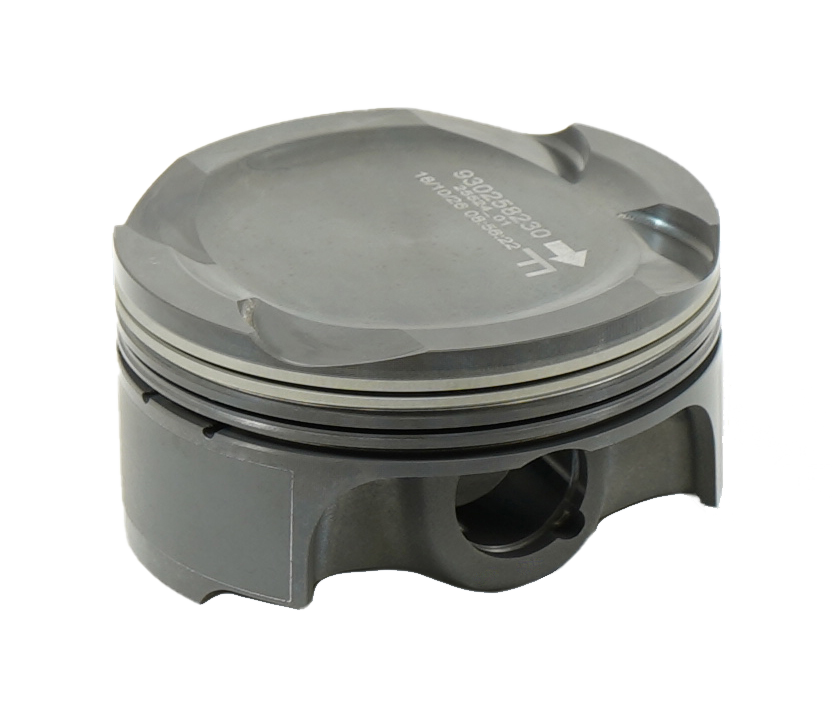

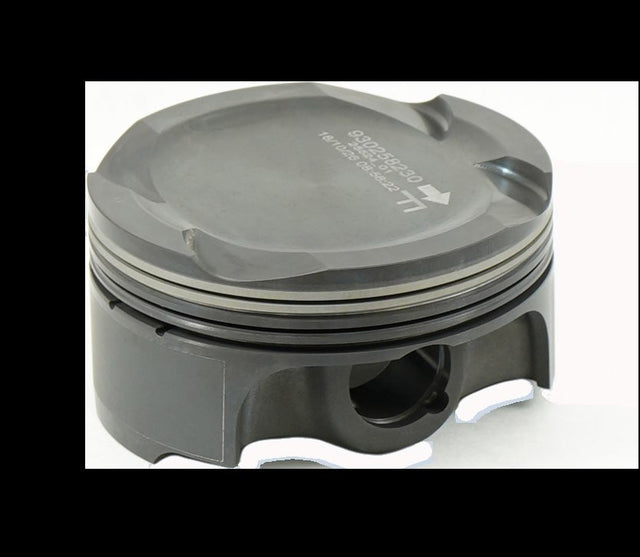

Mahle Motorsport Engine Piston

FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) SINGLE PISTON (930258230) 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-13.1cc,358g.

Piston Style: Dish, w/ 4 valve reliefs

Rings Included: N

Clip Style: Round Wire

Clips Included: N

Crown Vol: -13.1cc

Package Qty: Sold as a set of 1

Pin Diameter: 0.866

Pin Length: 2.405

Pin Mass: 118g

Pin Material: Steel

Pin Style: Floating

Pins Included: N

Piston Mass: 358g

Piston Material: Forged, 2618

Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm

Mahle Motorsport 930258230-1 - FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) SINGLE PISTON (930258230) 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-13.1cc,358g
