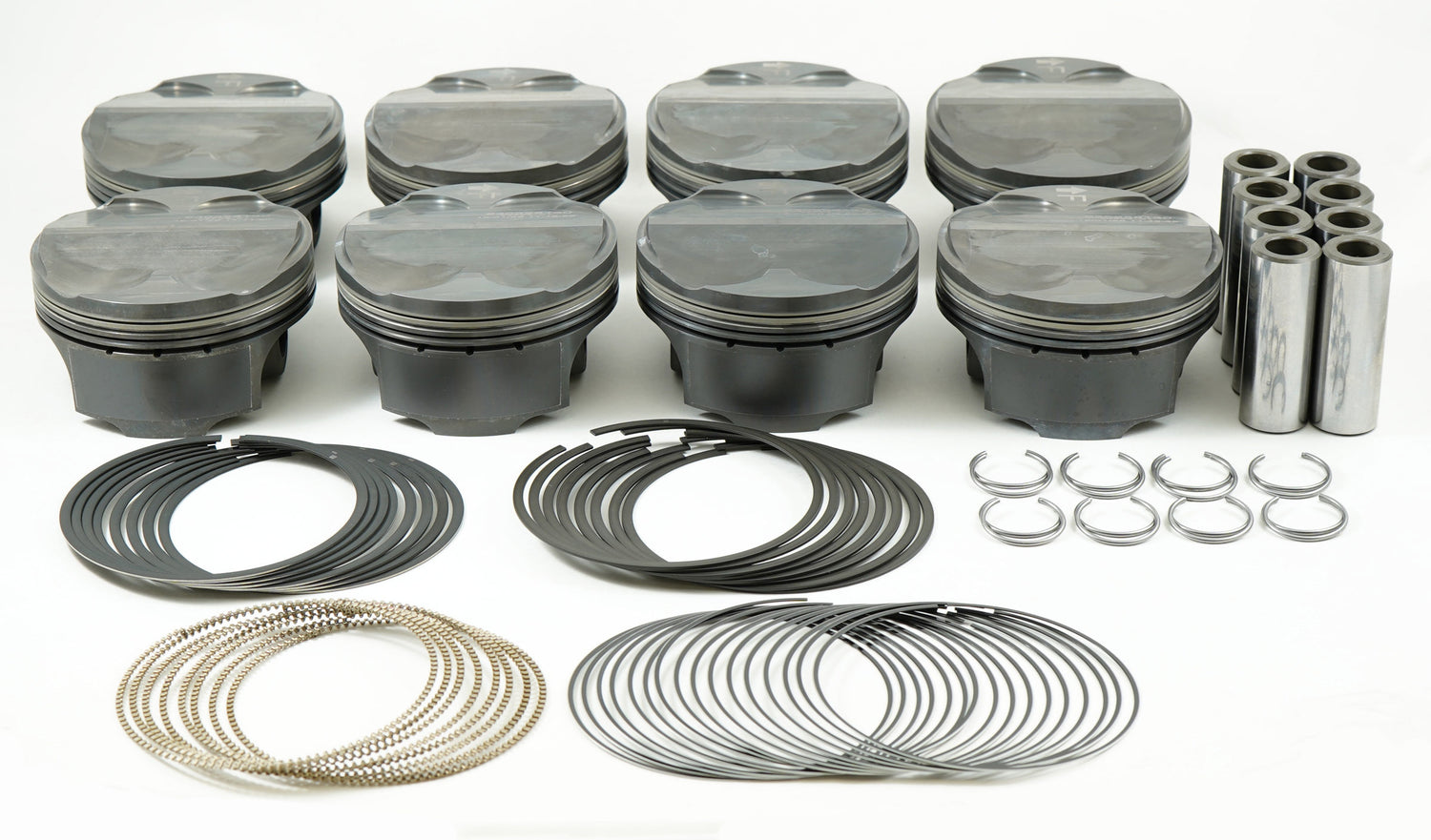

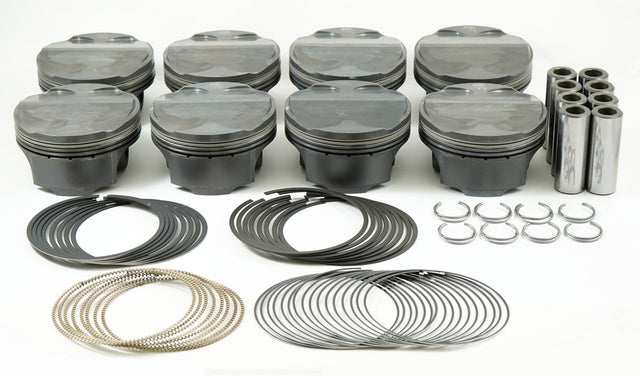

Mahle Motorsport 930258140 - Mahle MS Piston Set SBF 304ci 3.640in Bore 3.65in Stroke 5.933in Rod .866 Pin 10cc 12:6 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930258140
Sale price
$90999
Regular price
$1,00418
Unit price
/
Unavailable
$94.19 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930258140 - Mahle MS Piston Set SBF 304ci 3.640in Bore 3.65in Stroke 5.933in Rod .866 Pin 10cc 12:6 CR Set of 8
Piston (set) - FORD 5.0L MODULAR 4-VALVE COYOTE
304cid 3.640 x 1.167CH, 3.650stroke,5.933rod,0.866pin,10.2cc,402g,12.6CR, 2618
Clip Style: Round Wire
Pin Wall Thickness: 0.177
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dome, w/ 4 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 402g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 61.1mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 10.2cc
UCR Thickness: 1.0mm
