Mahle Motorsport 930258030-1 - FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) SINGLE PISTON (930258030) 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,3.0cc,389g
Mahle Motorsport | SKU:
DGJH-930258030-1
Sale price
$9499
Regular price
$10000
Unit price
/
Unavailable
$5.01 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930258030-1 - FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) SINGLE PISTON (930258030) 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,3.0cc,389g

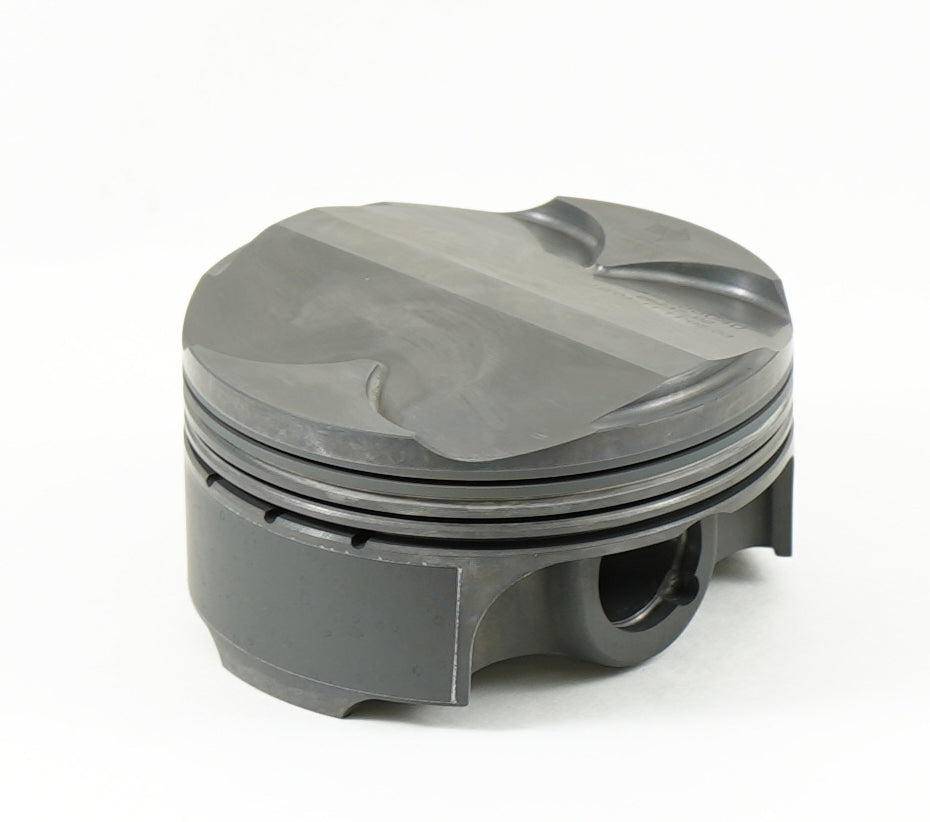

Mahle Motorsport Engine Piston
FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) SINGLE PISTON (930258030) 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,3.0cc,389g.
Clip Style: Round Wire
Clips Included: N
Crown Vol: 3.0cc
Package Qty: Sold as a set of 1
Pin Diameter: 0.866
Pin Length: 2.405
Pin Mass: 118g
Pin Material: Steel
Pin Style: Floating
Pins Included: N
Piston Mass: 389g
Piston Material: Forged, M142P
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Style: Dome, w/ 4 valve reliefs
Rings Included: N
