Mahle Motorsport 930256272 - Mahle MS Piston Set Ford 283ci 3.571in Bore 3.543in Stroke 5.933in Rod .866 Pin 0cc 12 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930256272
Sale price
$71099
Regular price
$79044
Unit price
/
Unavailable
$79.45 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

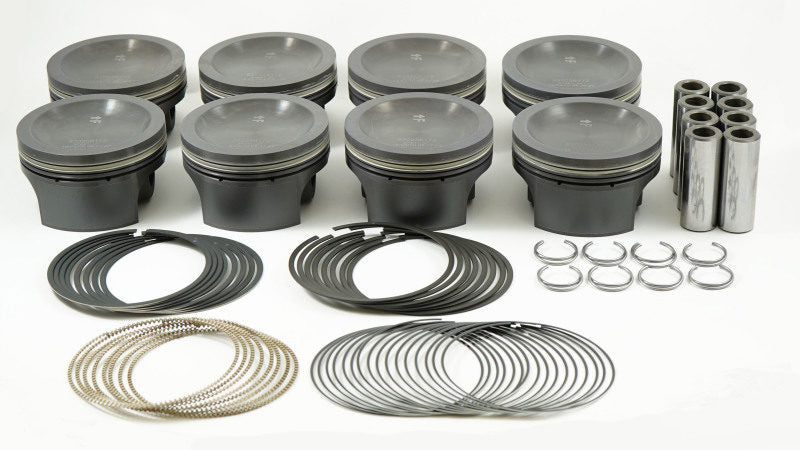

Mahle Motorsport 930256272 - Mahle MS Piston Set Ford 283ci 3.571in Bore 3.543in Stroke 5.933in Rod .866 Pin 0cc 12 CR Set of 8
Piston and Ring - PowerPak - Forged - Flat Top - 3.572 in Bore - 1.220 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Grooves - Minus 0.00 cc - Ford Modular - Kit
284cid 3.572 x 1.220CH, 3.543stroke,5.930rod,0.866pin,0cc,399g,12.1CR, M142P
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
LCR Thickness: 1.0mm
Piston Mass: 399g
Pins Included: Y
Pin Wall Thickness: 0.177
Pin Style: Floating
Pin Material: Steel
Pin Mass: 118g
Pin Length: 61.1mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Material: 9254 Steel
Piston Style: Flattop, w/ NO valve reliefs
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 0cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Material: Forged, M142P
