Mahle Motorsport 930256082 - Mahle MS Piston Set Ford 285ci 3.581in Bore 3.543stk 5.933in Rod .866 Pin -16cc 9.5 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930256082
Sale price
$75199
Regular price
$84357
Unit price
/
Unavailable
$91.58 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

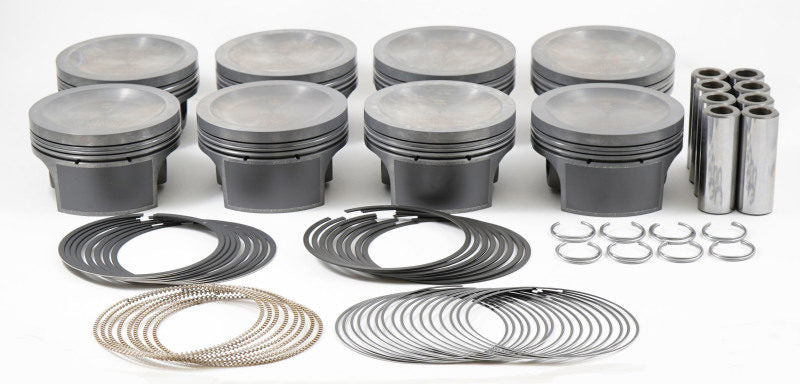

Mahle Motorsport 930256082 - Mahle MS Piston Set Ford 285ci 3.581in Bore 3.543stk 5.933in Rod .866 Pin -16cc 9.5 CR Set of 8
Piston (set) - FORD MODULAR 4.6 2-VALVE or 4-VALVE
285cid 3.582 x 1.220CH, 3.543stroke,5.930rod,0.866pin,-16.0cc,367g,9.5CR, M142P
Clip Style: Round Wire
Pin Wall Thickness: 0.177
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dish, w/ NO valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, M142P
Piston Mass: 367g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 61.1mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -16.0cc
UCR Thickness: 1.0mm
