Mahle Motorsport 930252430 - Mahle MS Piston Set SBF 408ci 4.030in Bore 4.00in Stroke 6.0in Rod .927 Pin -20cc 10.0 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930252430
Sale price
$76099
Regular price
$85270
Unit price
/
Unavailable
$91.71 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

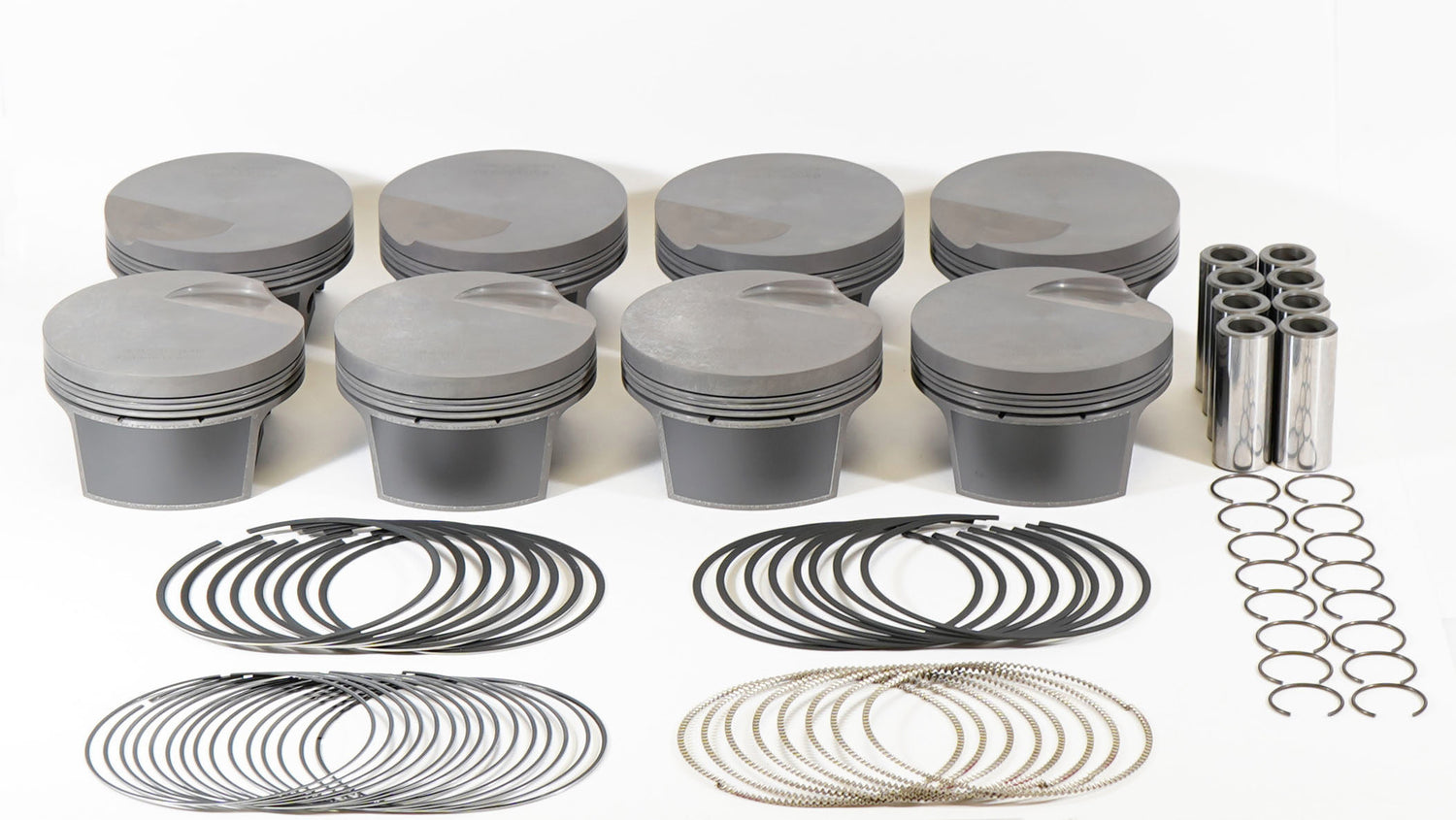

Mahle Motorsport 930252430 - Mahle MS Piston Set SBF 408ci 4.030in Bore 4.00in Stroke 6.0in Rod .927 Pin -20cc 10.0 CR Set of 8
Piston (set) - SMALL BLOCK FORD CLEVELAND
408cid 4.030 x 1.200CH, 4.000stroke,6.000rod,0.927pin,-20cc,457g,10.1CR, 4032
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 457g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -20cc
UCR Thickness: 1.0mm
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dish, w/ INT valve relief
