Mahle Motorsport 930250425 - Mahle MS Piston Set SBF 348ci 4.125in Bore 3.4in Stroke 5.4in Rod .927 Pin -6cc 10.4 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930250425
Sale price
$72199
Regular price
$79044
Unit price
/
Unavailable
$68.45 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

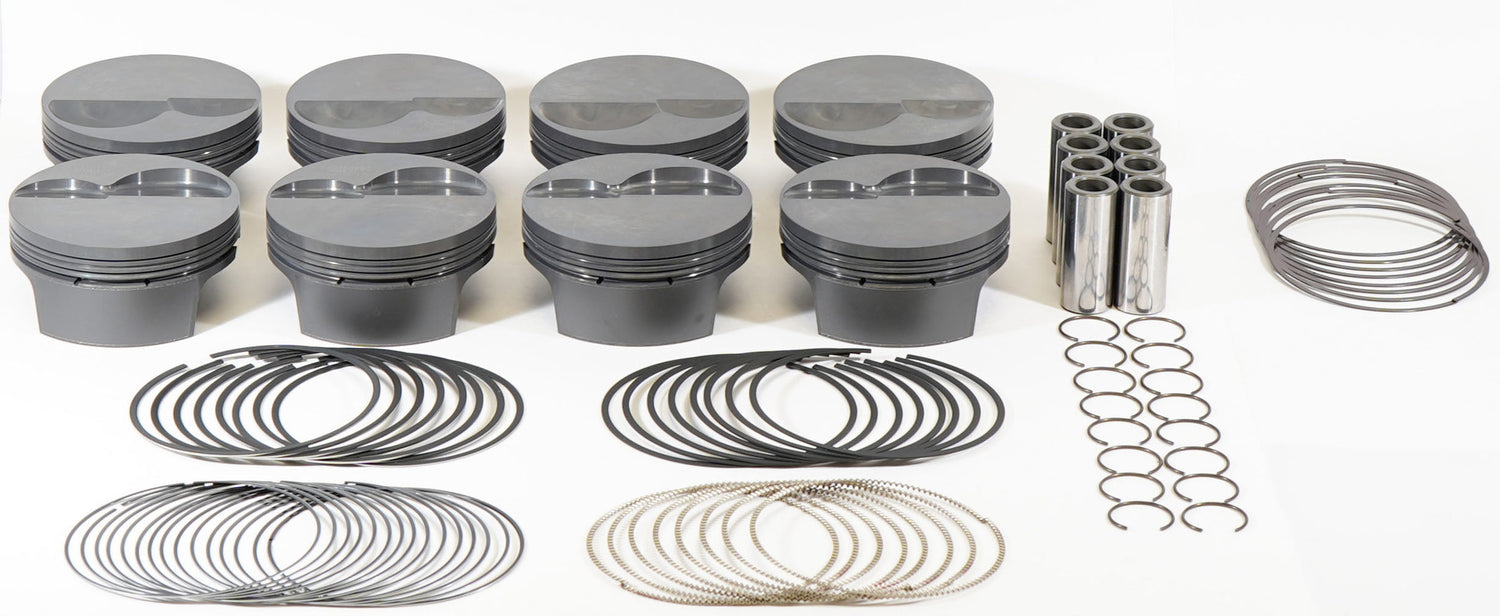

Mahle Motorsport 930250425 - Mahle MS Piston Set SBF 348ci 4.125in Bore 3.4in Stroke 5.4in Rod .927 Pin -6cc 10.4 CR Set of 8

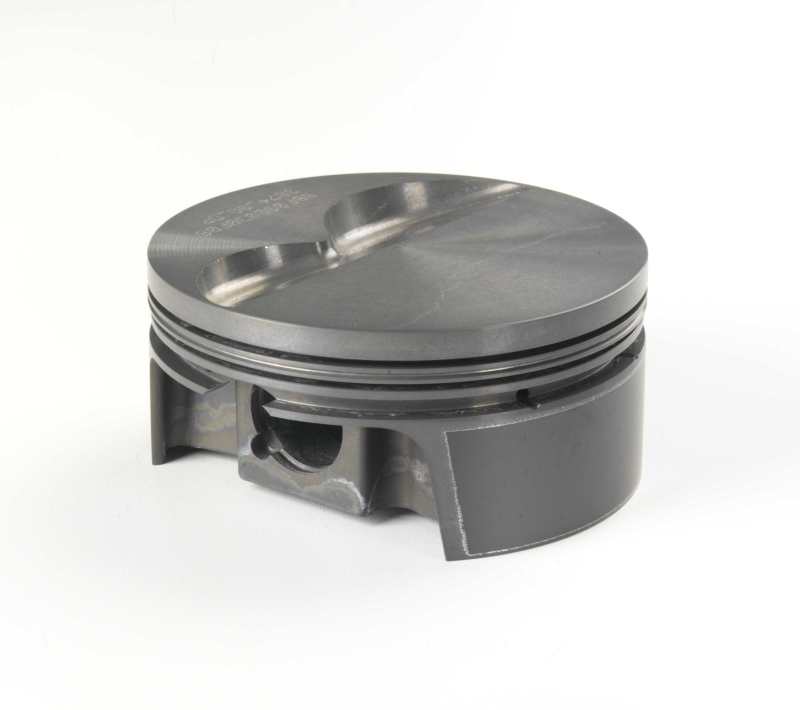

Piston (set) - SMALL BLOCK FORD FLAT TOP for the TWISTED WEDGE CYL HEAD
364cid 4.125 x 1.090CH, 3.400stroke,5.400rod,0.927pin,-6.2cc,462g,10.8CR, 4032
LCR Coating: Phosphate
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Crown Volume: -6.2cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Material: Forged, 4032
LCR Material: 9254 Steel
Piston Mass: 462g
Pins Included: Y
Pin Wall Thickness: 0.168
Pin Style: Floating
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
File Fit: Y
