Mahle Motorsport 930249130 - Mahle MS Piston Set SBF 347ci 4.030in Bore 3.4in Stroke 5.4in Rod .927 Pin -16cc 9.0 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930249130
Sale price
$77499
Regular price
$90437
Unit price
/
Unavailable
$129.38 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

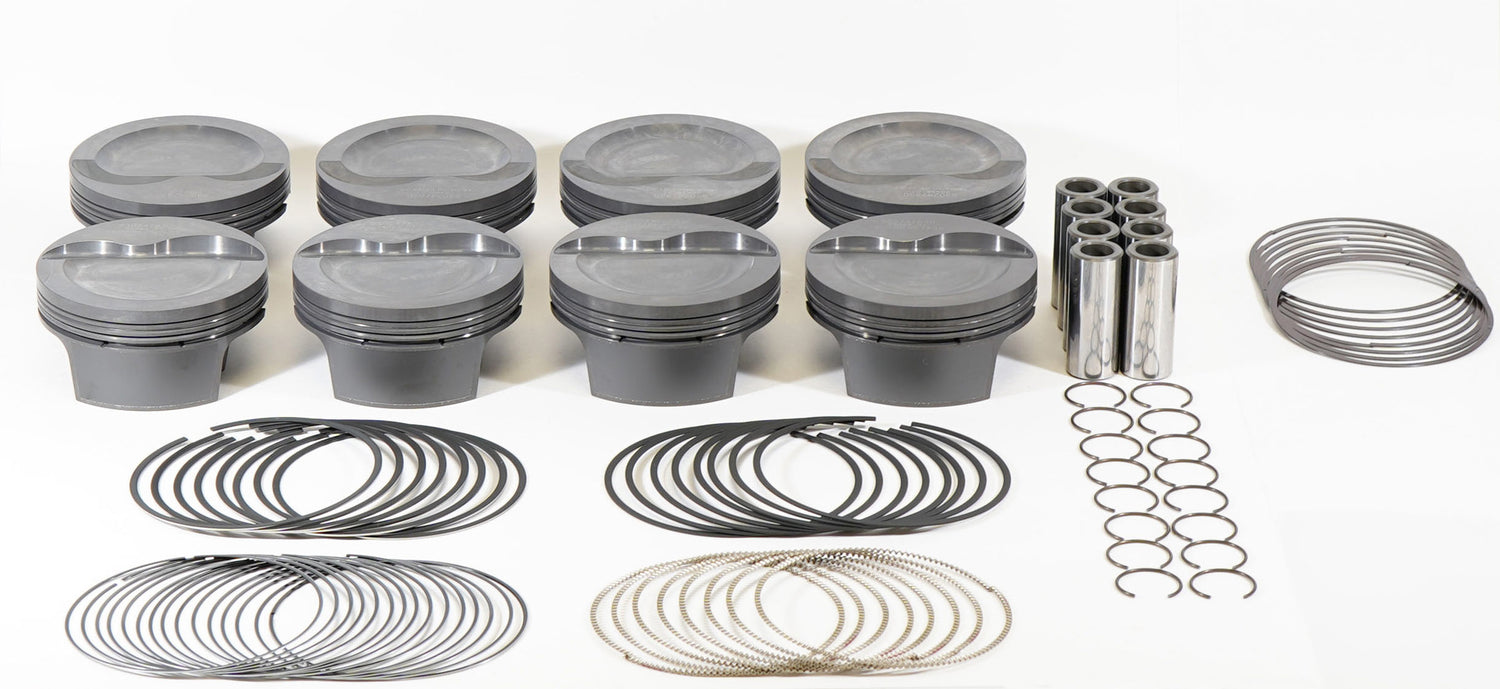

Mahle Motorsport 930249130 - Mahle MS Piston Set SBF 347ci 4.030in Bore 3.4in Stroke 5.4in Rod .927 Pin -16cc 9.0 CR Set of 8
Piston and Ring - PowerPak - Forged - Dish - 4.030 in Bore - 1.090 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Groove - Minus 16.00 cc - Small Block Ford - Kit
347cid 4.030 x 1.090RCH, 3.400stroke,5.400rod,0.927pin,-16cc,384g,9.0CR, 4032
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Inverted Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 384g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -16cc
UCR Thickness: 1.0mm
